Appendix D D143

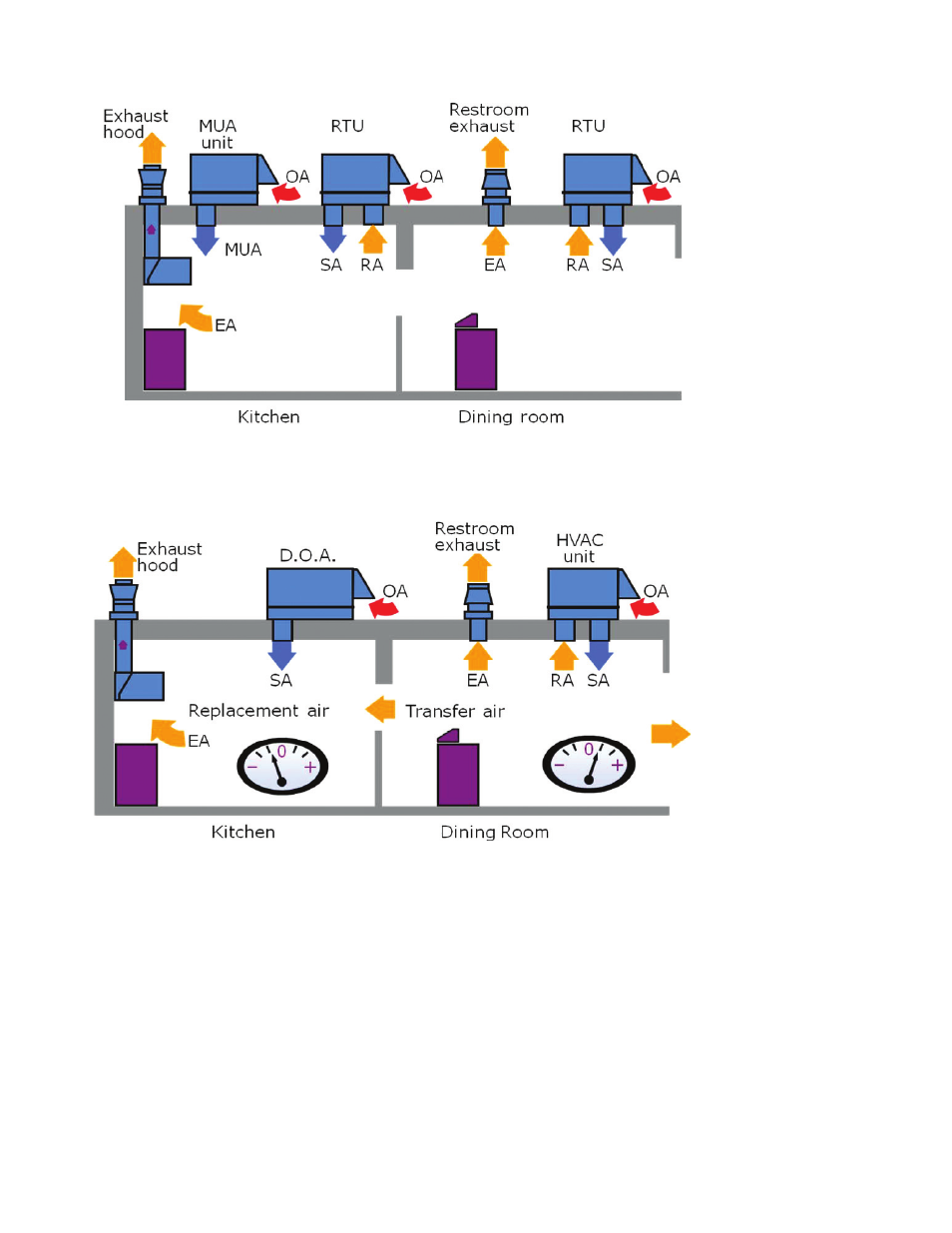

Figure D234. Air fl ow resulting from application of two separate, independent ventilation
systems for dining and kitchen areas.
Figure D235. Overall improved effi ciency of the HVAC system in cooling mode achieved by use
of transfer air from the dining room to the kitchen space.
