97

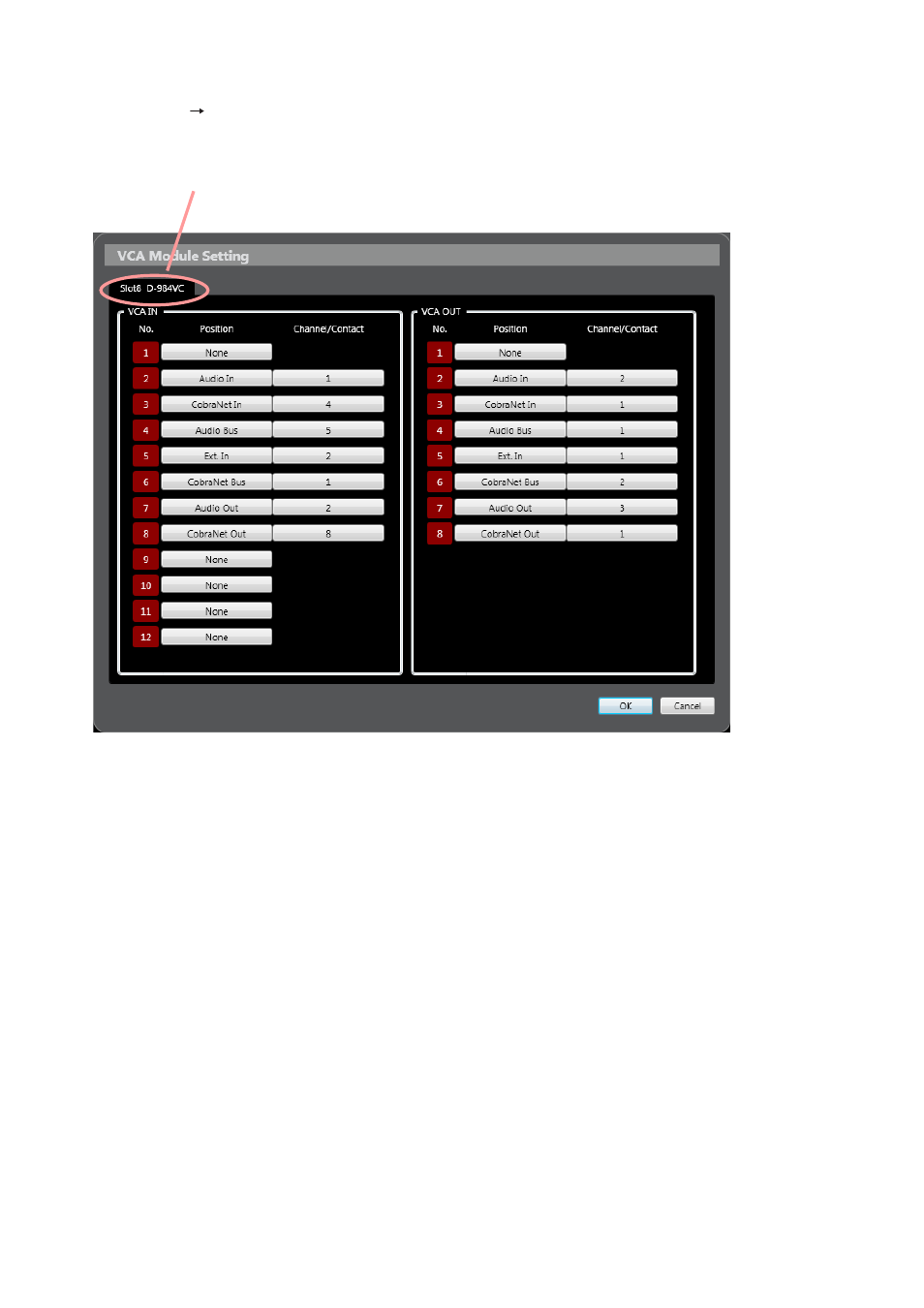

7.4.4. VCA module setting screen (Only when the D-984VC is used)

Select "Option

VCA Module Setting..." from the menu. The VCA Module Setting screen is then displayed.

If two or more VCA control modules are used, they can be switched using the Display Selection tab.

Display Selection tab

(1) Position

Select the channel position for VCA volume
adjustment.

(2) Channel/Contact

Select the channel number for VCA volume
adjustment.
