16
Step 5. Click the "Next" button.

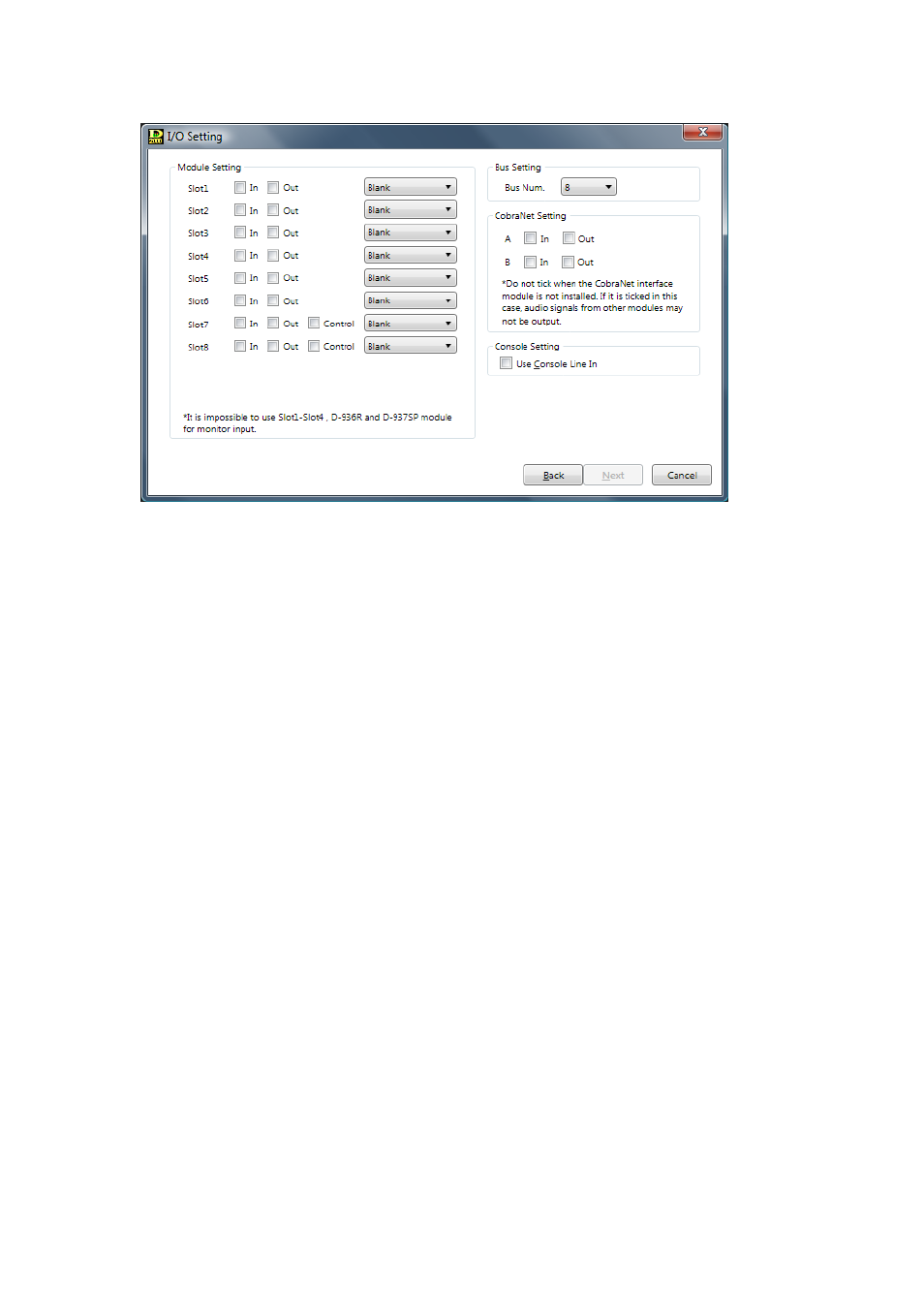

The I/O Setting screen is displayed.
Step 6. Perform Module, Bus, CobraNet, and Console Settings.
Notes
• CobraNet is a trademark of Cirrus Logic, Inc.
• The unit having only inputs or outputs cannot be created.
6-1. Module Setting
Select the type of module (input, output, and control) by clicking the appropriate checkbox for each
slot and select the modules to be used from the Combo box.
• For Slots 1 – 6, input modules and output modules can be selected.
• For Slots 7 and 8, input modules, output modules, and control modules can be selected.
The Combo box's content changes depending on the content selected in the checkbox.
Note
Signals of the input and output modules are separately processed by 2 DSP devices, each of which
handles the modules in determined slot numbers as follows.
• DSP #1: Modules in Slot 1 – Slot 4
• DSP #2: Modules in Slot 5 – Slot 8
As the available filter number for input and output channels is limited by the DSP in charge, design in
which slots modules are installed making the filter number as equal as possible for 2 above-
mentioned slot groups. (See
p. 21 , Filter Point Number Setting Screen.)
6-2. Bus Setting
Select the number of buses to be used from the Combo box. (Default setting: "8")
6-3. CobraNet Setting
Click the input or output checkbox for A or B channel.
Note
Do not tick the CobraNet Setting item when the CobraNet interface module is not installed.
If it is ticked in this case, audio signals from other modules may not be output.
6-4. Console Setting
Click the checkbox when using the D-2012C's line input terminal. The D-2008SP's monitor bus
terminal must be connected to the D-2012C's monitor bus terminal. (For details, please read the
separate installation manual.)
