82
(11) Table display button
If this button is clicked, the filter control is displayed in tabular form. Clicking this button again reverts to
the original graphic display.

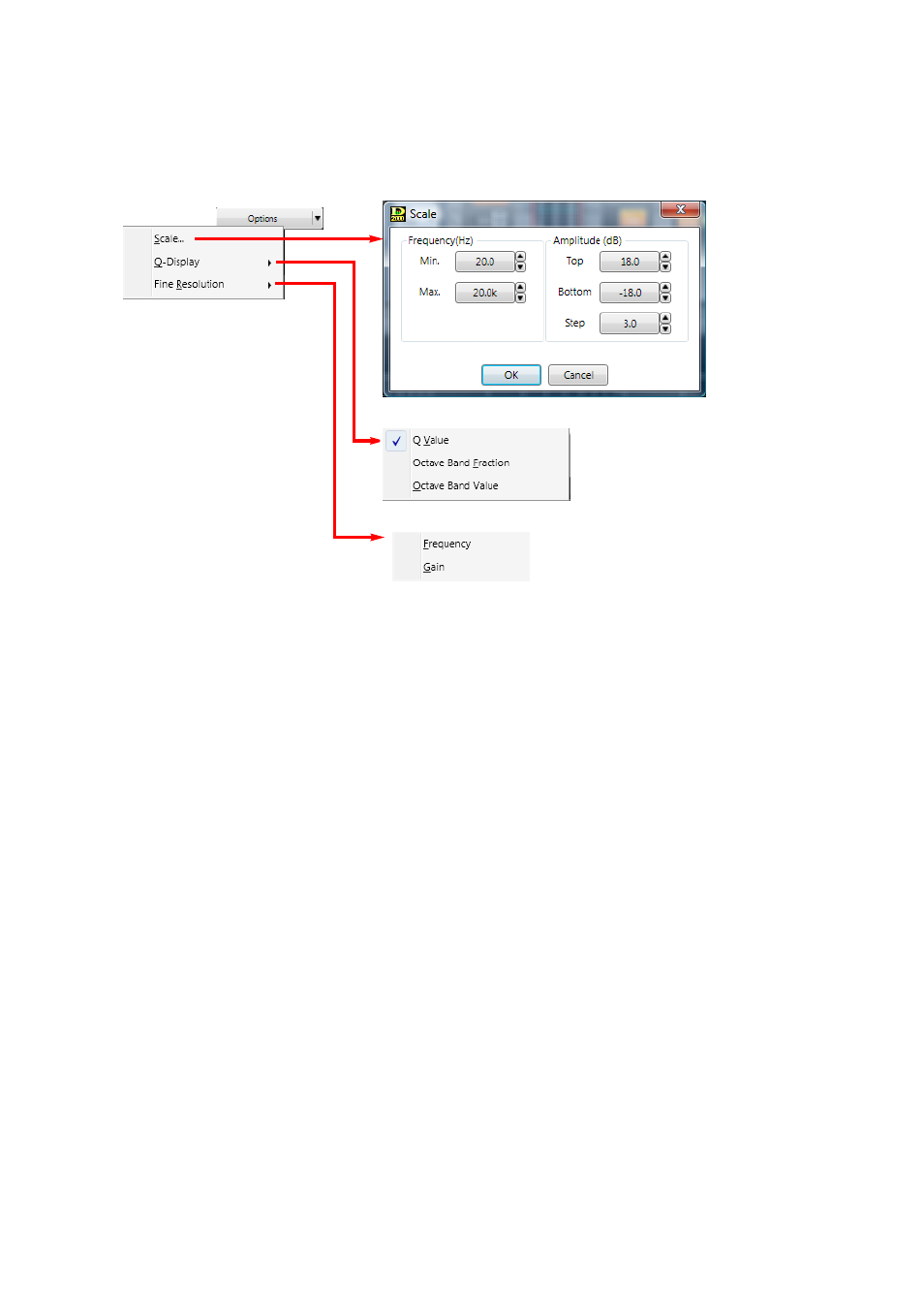

(12) Option button
Clicking this button causes the following pull-down menu to appear.
Scale... : Scale can be changed.
Q-Display: The method to display Q value can be changed. (Only available when the parametric
equalizer, notch filter or all-pass filter is selected.)
Fine Resolution: You can change the frequency step width if "Frequency" is selected, and the gain step
width if "Gain" is selected.
(13) Minimum amplitude adjustment buttons
Increase or decrease the lower amplitude limit on a graduated scale.
