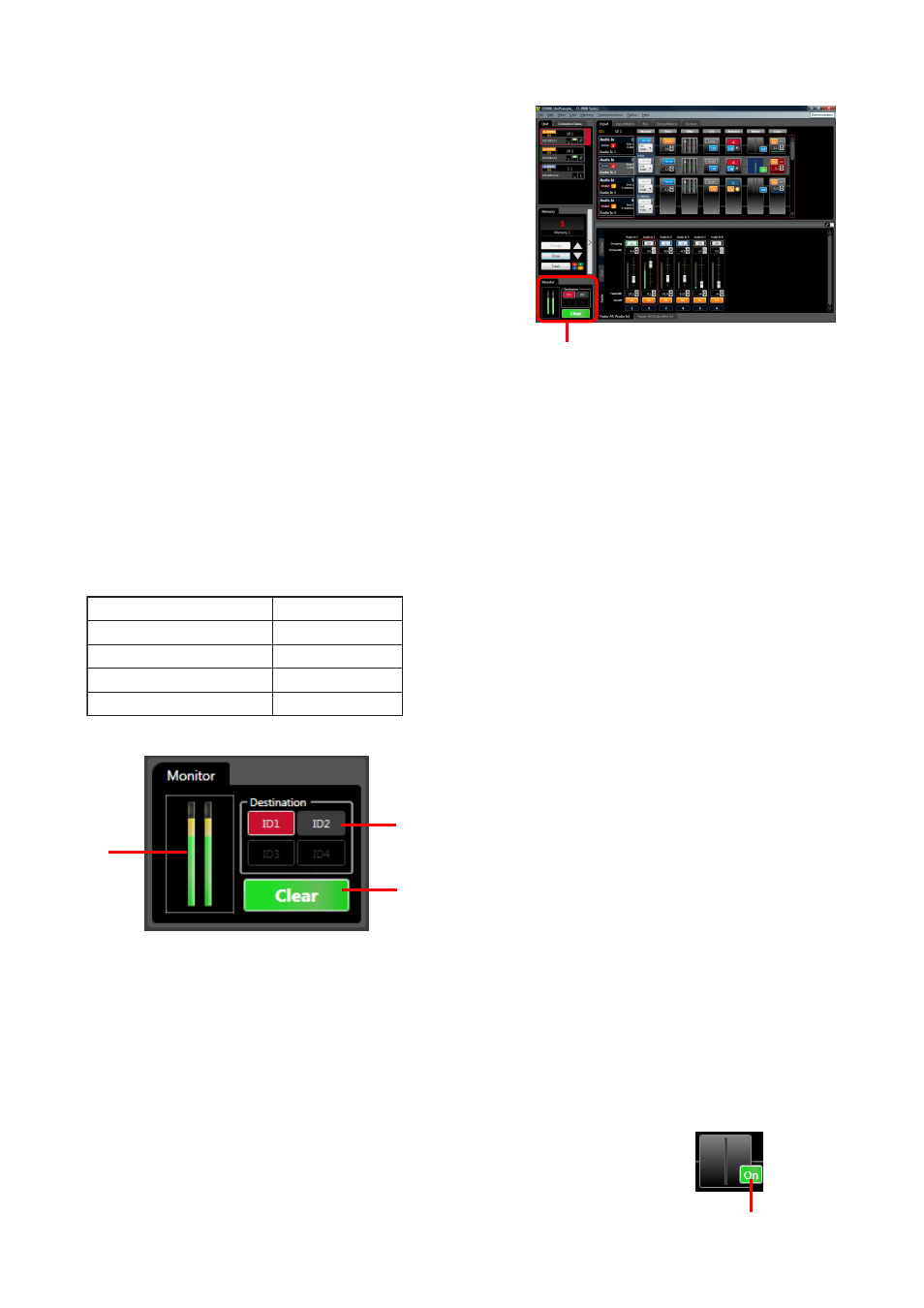

6.4. Monitor View
Monitor view is displayed at the lower left corner of the main
screen when in online mode.
It is displayed only when the unit selected in the unit view has
been set to "Monitor."
Monitor audio signals are sent to the monitor bus between the
D-2008SP and D-2012C, and also sent to the output
destination set as follows.
• Select "Monitor" for the output channel to be used as
monitor in the Output Channel Use setting on the Channel
Use screen. (See
p. 17 .)
• Designate the D-2008SP's ID number to which monitor
audio output is sent in the Output Monitor Setting on the
Monitoring Setting screen. (See
p. 19 .)
To monitor the audio signals from the unit with different ID
number assigned, perform settings as shown below in
addition to above settings.
• Select "Monitor" for the input channel to be used as monitor
in the Input Channel Use setting on the Channel Use
screen. (See
p. 17 .)
• Connect the audio signal line. (See separate Installation
manual, "Audio Monitor Line Connection When Multiple
Units Are Connected.")
Monitoring points are fixed for individual channel areas as
follows.
Monitor view
(1)
(3)
Monitor button
Note
The above screen shows online mode
after settings are completed.
(1) Level meter
Indicates the monitor output level.
(2) Monitor destination selection button
Select the monitor destination (monitor bus
No. and console link group No.).
Monitor channel can be selected for each
monitor destination.
(3) Monitor clear button
Clears all selected monitor channels.
Notes
• Multiple channels can be simultaneously selected (mixing) and output for monitoring.
• Monitor selection statuses cannot be stored.
[Monitor Channel Selection from the Flow View]
Audio can be assigned to the monitor output by selecting the monitor button visible
in the flow view meter box, which shows monitor outputs.
Audio cannot be monitored at the point where the monitor button is not displayed
on the box.
Audio In, CobraNet In
Audio Bus
Ext. In, CobraNet Bus
Pre-fader
After-fader
Pre-fader
Audio Out, CobraNet Out After-fader
Channel area Monitoring point
(2)
