Input, Bus, and Output group trim settings (Group trim display)

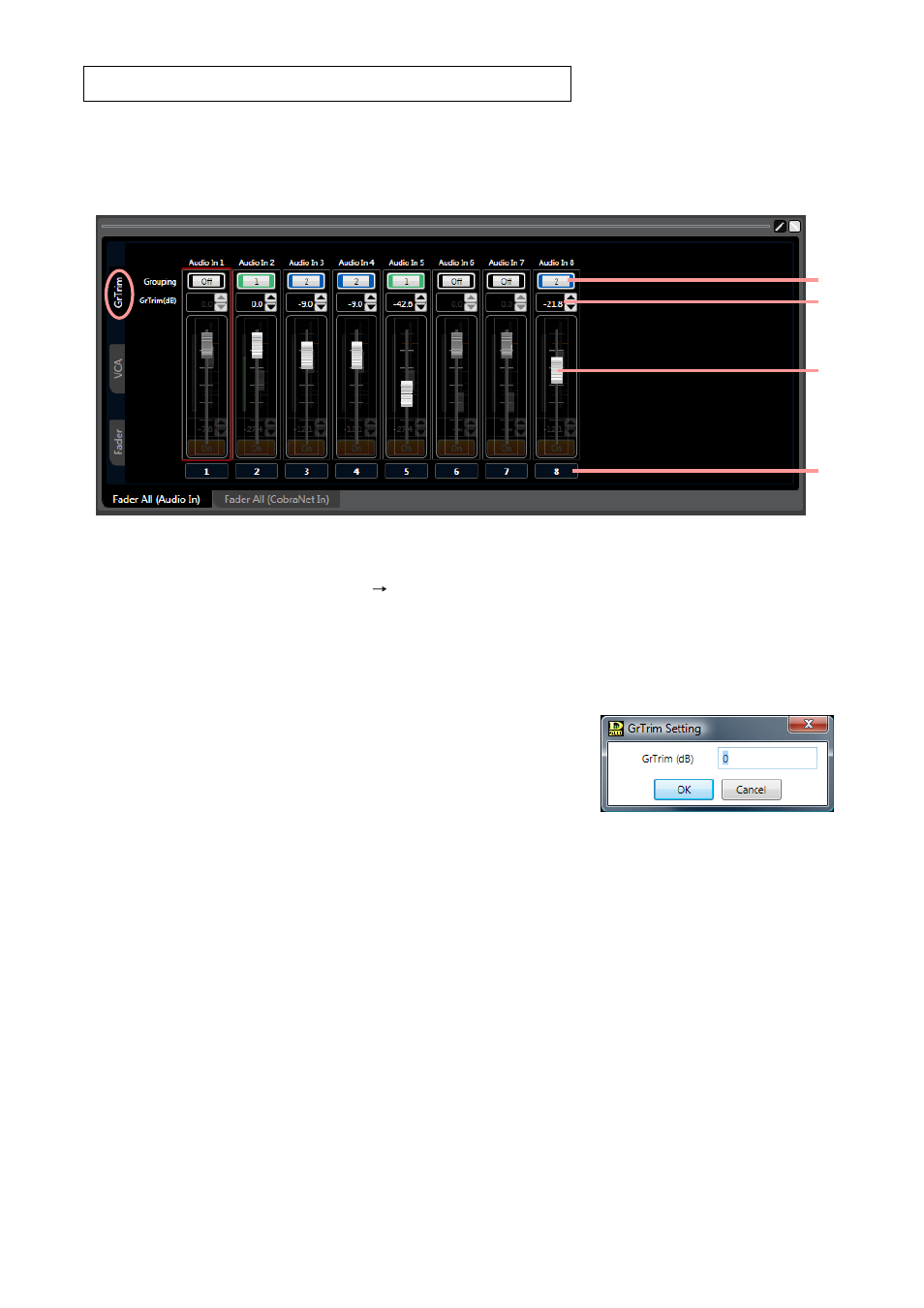

Clicking the "Gr Trim" on the display selection tab displays the fader-operated Group Trim Gain setting screen
for the corresponding channel area.
(1) Grouping button [Grouping]
Displays the channel group number assigned to each channel.
Click this button and select [Grouping
(Channel)] to perform the channel group setting.
If you move a fader of a grouped channel, the faders of other channels assigned the same group also
move in synchronization with the first operated fader.
The Group Trim gain (Gr Trim) is enabled when a group setting is performed, allowing the offset gain of
each grouped channel to be set.
(2) Group trim gain button [Gr Trim (dB)]
Displays the group trim gain set for each channel by means of
numerical values.
When channel group settings have been performed, if you click this
button, a dialog for gain setting displayed, enabling you to set the
trim gain by directly entering a numerical value. The group trim gain
setting performed in this dialog is interlocked with the group trim
gain setting shown on the "Fader" tab screen.
Setting range: –∞, –79.9 to +10 dB
(3) Fader
When a group setting has been performed, each channel’s group trim gain can be changed by moving the
fader up or down.
(4) Channel number display
Displays each channel number.
