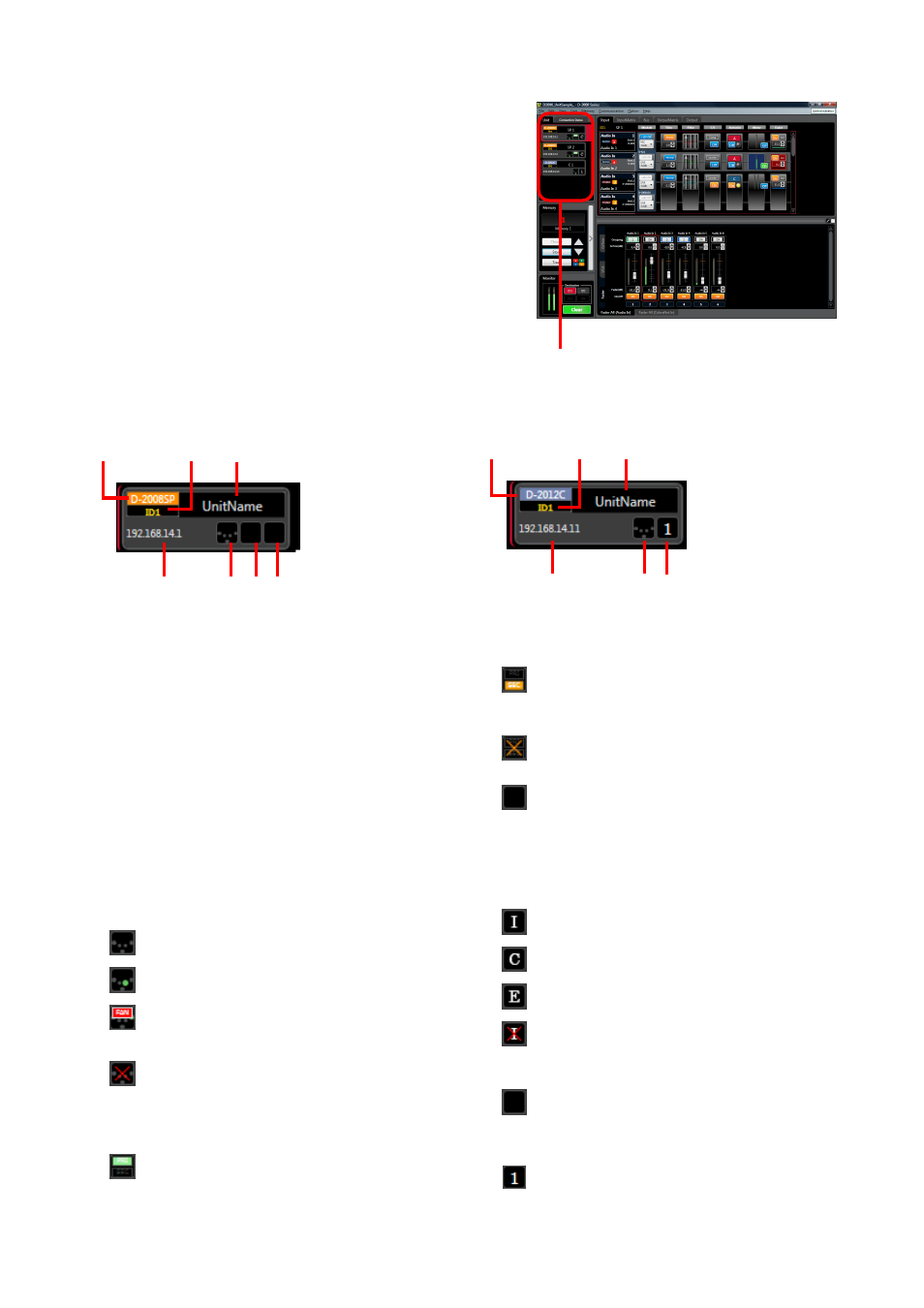

6.1. Unit View
The Unit View is located at the upper left of the main screen.
Performing equipment configuration and system-related
settings displays all units that make up the system.
Selecting the unit display in the unit view switches the unit to
be displayed in the main view.
The unit is displayed in different color depending on its ID
number.
Unit view
(1) (2) (3)
(4) (5) (6) (7)
(1) (2) (3)
(4) (5) (8)
[D-2008SP] [D-2012C]
(1) Unit type
Displays either the D-2008SP or the D-2012C.
(2) Unit ID
Displays the unit’s ID number (ID1 – 4).
(3) Unit name
Displays the unit’s name.
(4) IP address
Displays the unit’s IP address.
(5) Communication connection status
Indicates unit communication connection status.
: Unconnected (offline state)
: Connected (online state)
: Cooling fan failure detected in connected
status (D-2008SP only)
: Communication failure
Confirm network connections.
(6) CobraNet status (D-2008SP only)
: CobraNet PRIMARY LINK
Lights while CobraNet communications are
being performed via the primary port.
: CobraNet SECONDARY LINK
Lights while CobraNet communications are
being performed via the secondary port.
: CobraNet error
Communication failure status
: None
CobraNet module not installed.
(7) Word clock synchronization status
(D-2008SP only)
Indicates word clock synchronization mode.
: Internal synchronization
: CobraNet
: External synchronization
: Failure
(Superimposed over one of the above three
to indicate irregularities.)
: Offline state
(8) Console link group (D-2012C only)
: Displays the console link group number (1 – 4).
(The group number is identical to D-
2012C's unit ID number.)
