7. D-2008SP FUNCTION SETTINGS

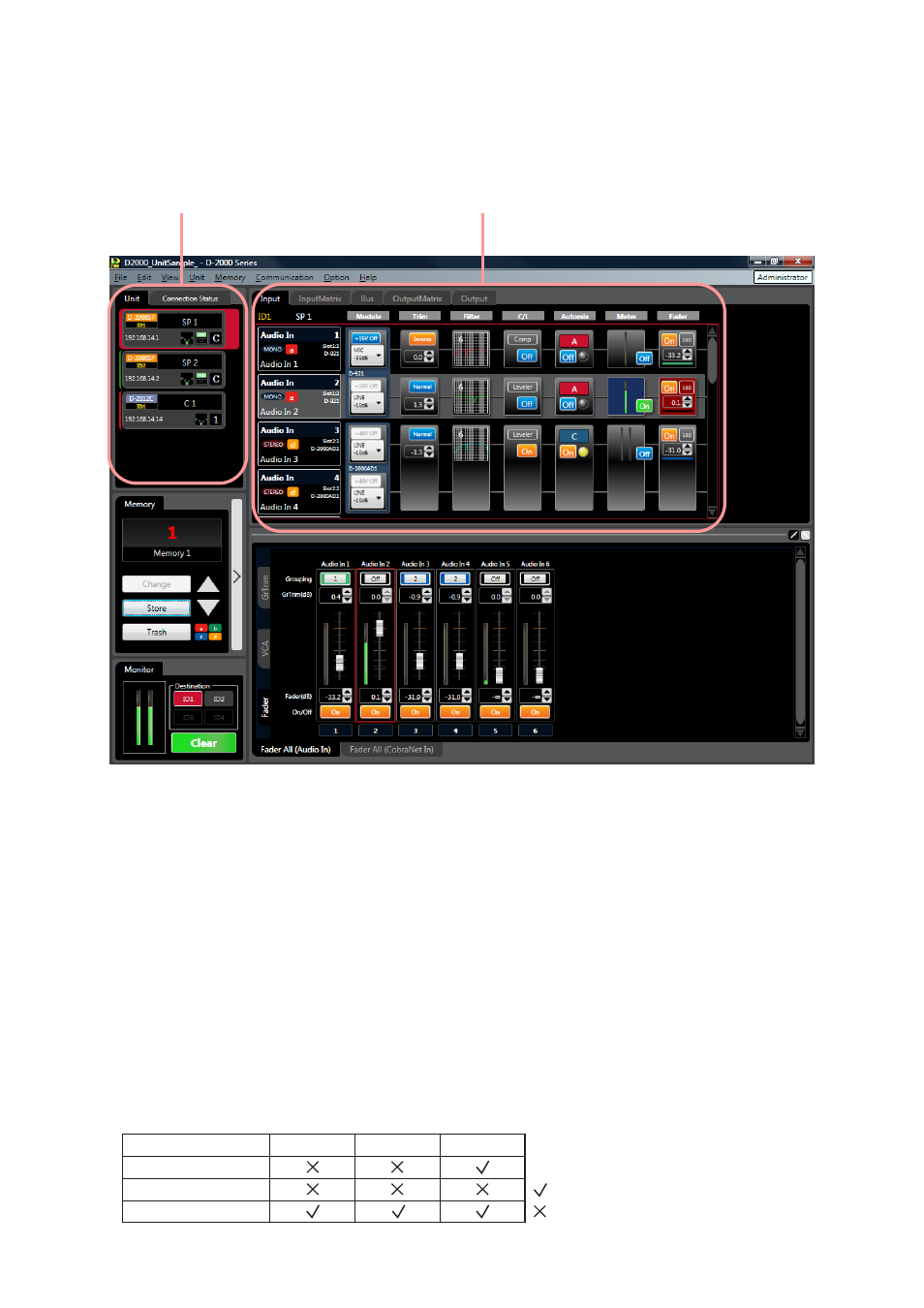

Selecting the D-2008SP to be set in the unit view displays the flow or matrix view in the main view.
Unit view Flow or Matrix view
7.1. Flow View
The flow view displays the unit’s signal processing images expressed with functional boxes and input-to-
output signal flows.
Selecting the Input, Bus or Output tab displays the details for each channel.
Right-clicking on the function boxes in the signal flow image enables the following operations.
Copy and paste can also be performed by dragging and dropping the box.
Copy: Copies the value set for the designated function box to the clipboard.
Paste: Pastes the data in clipboard to the designated function box.
Initial value: Initializes the value set for the function box.
Notes
• Above operations cannot be performed for the Meter box.
• Above operations can be performed only in offline mode for the FBS box.
• There are limitations to the operation on the Module box as shown in the table below.
D-921, D-2000AD1
Copy Paste Initial value
: Operable
: Inoperable
D-922, D-923AE
D-936R, D-937SP
