7.3.11. Output filter view (Filter function settings)
Clicking the filter box in the Output Flow view causes the Output filter view to be displayed in the Contents
view.
In the Filter box, the number of filters that can be used and an overview of set filter characteristics are
displayed.
[Filter box]
(2)
(11)
(10)
(9)
(8)
(7)
(6)
(12)
(12)
(11)
(10)
(9)
(8)
(7)
(6)
(3)
Overview of set filter characteristics
Number of usable filters
(3) (5)
(13)
(1) (4)

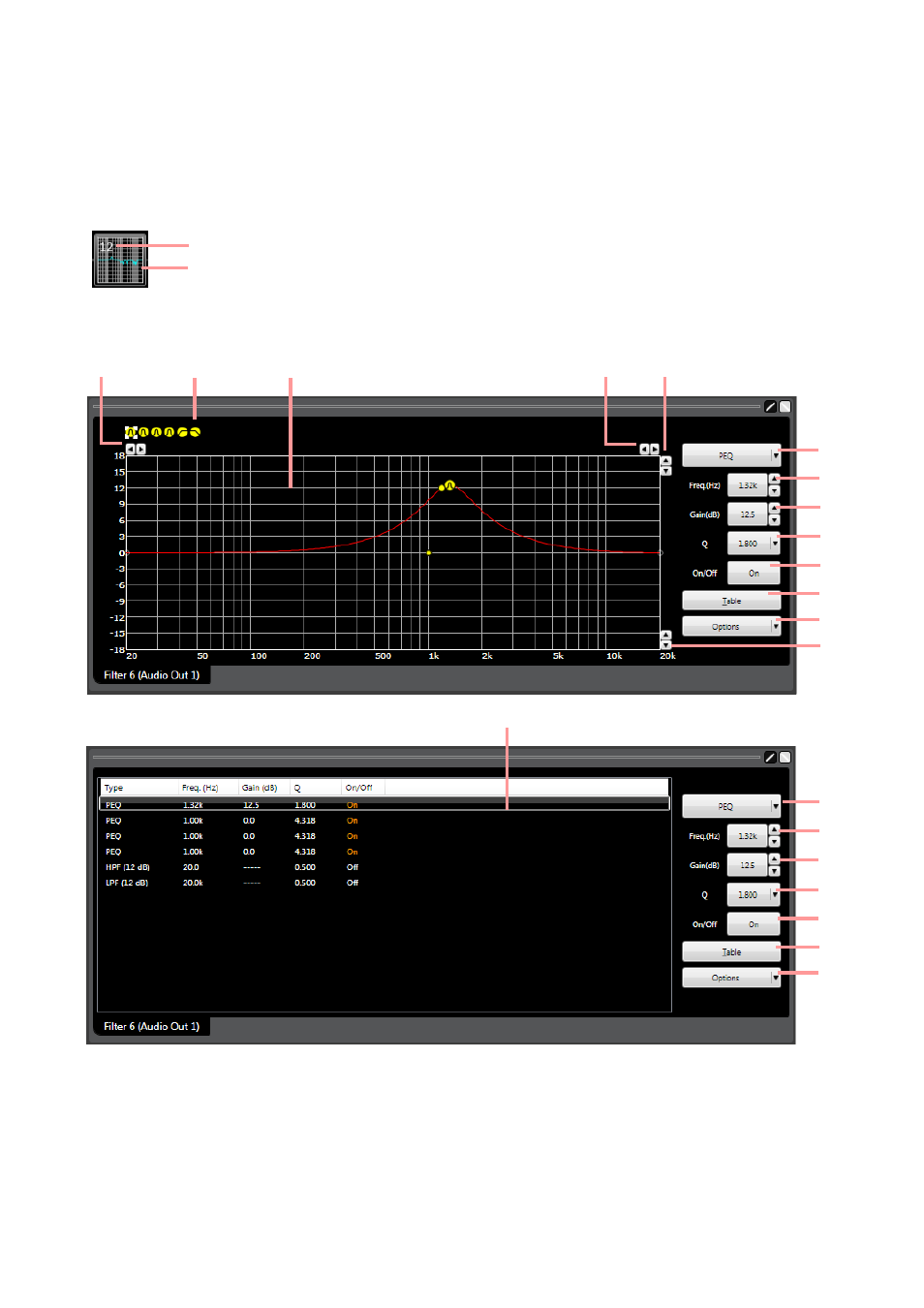

[Output filter view]
(Displayed in tabular form)
(1) Minimum frequency adjustment buttons
Increase or decrease the lower frequency limit on a graduated scale.
