7.1.2. Bus flow view

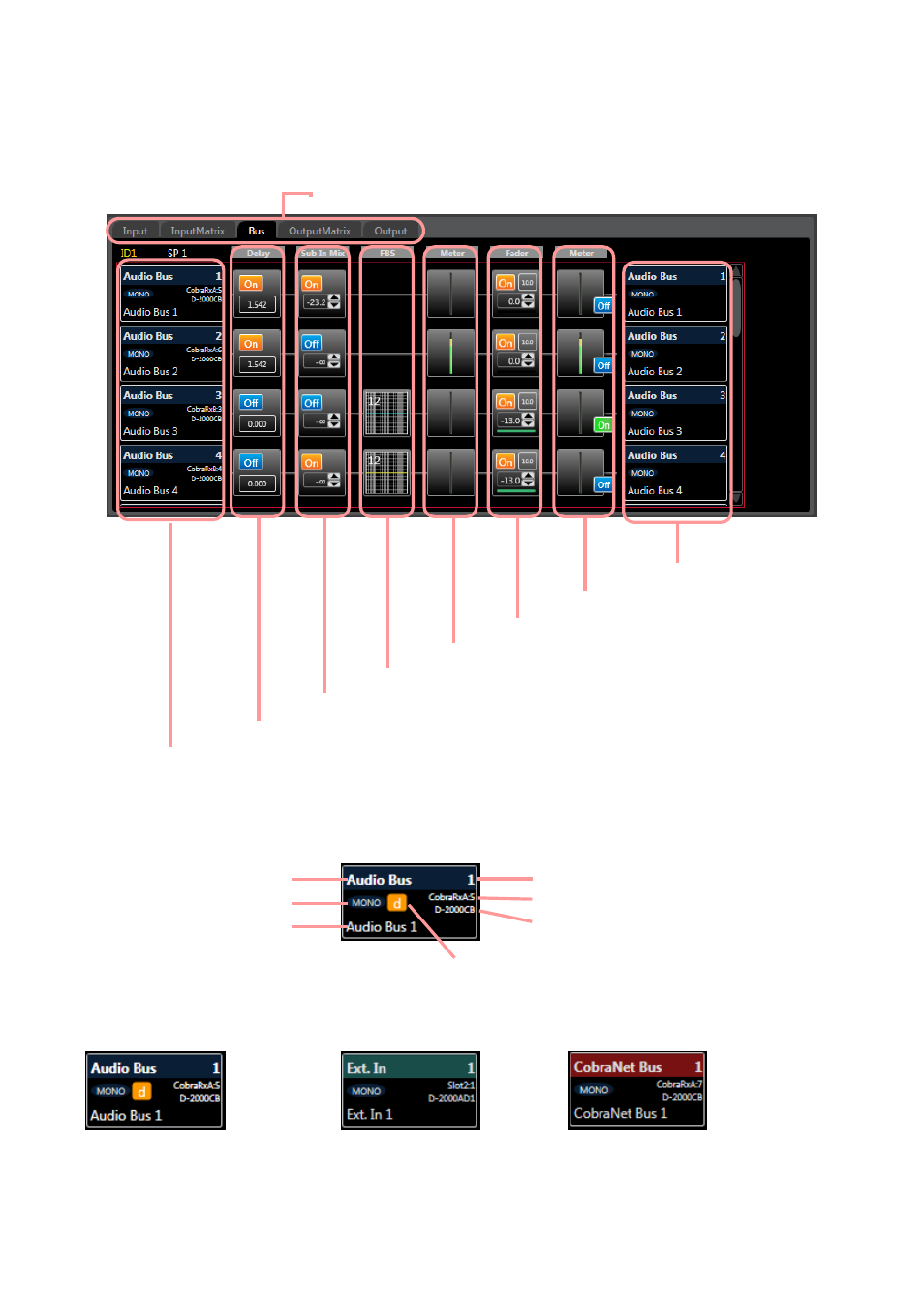

In this flow view, bus-related Delay, Sub In Mix, FBS, PF Meter, Fader, and AF Meter boxes are arranged side
by side.
Audio Bus, Ext In and CobraNet Bus channel areas are also displayed.
Flow/Matrix selection tab
Channel information
Meter (See p. 34 .)
Fader (See p. 66 .)
Meter (See p. 34 .)
FBS (See p. 73 .)
Sub in mix (See p. 70 .)
Delay (See p. 71 .)
Channel information (See below.)
Channel area
Stereo/monaural display
Channel name
Channel number
Slot number
Module type
• Channel information
There are three types of channel areas:
: Audio Bus : Ext. In : CobraNet Bus
Change safe group
(displayed only when the Change Safe function is enabled)
