Toa D-2000 Series User Manual
Page 64
64
NOM attenuation function* settings

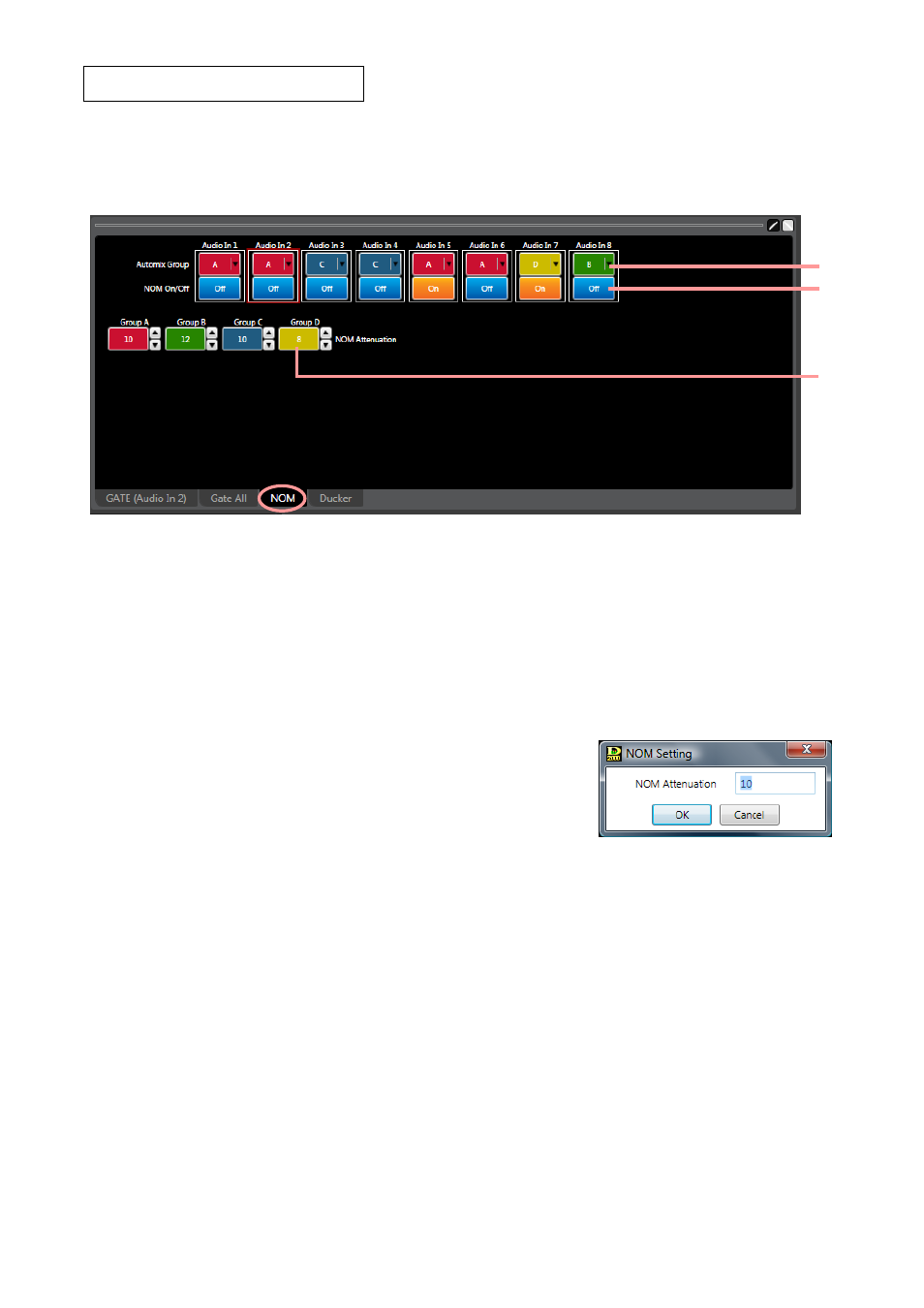

Clicking the "NOM" tab causes the NOM attenuation function setting screen for all channels to appear.
* For NOM attenuation function, see
p. 152
.
(3)
(2)
(1)
(1) Auto-mixing group setting button [Automix Group]
Sets the auto-mixing group assignment to each channel.
If you click this button, groups can be selected from the pull-down menu.
This setting can also be performed on the screen displayed by clicking "GATE," "Gate All," or "Ducker" tab.
(2) NOM attenuation ON/OFF button [NOM On/Off]
Displays the ON/OFF setting status of the NOM attenuation function for each channel. Click this button to
turn on or off the NOM attenuation function.
(3) NOM attenuation button [NOM Attenuation]
Displays the NOM attenuation gain by means of numerical values. If
you click this button, a dialog for NOM setting is displayed, enabling
you to set the NOM attenuation gain by directly entering a numerical
value.
Setting range: 0 – 20 (0 log
10
NOM – 20 log
10
NOM)
The Up and Down buttons located on the right side can also be used
to change the value.
