Toa D-2000 Series - Manual (Page 23)

23
Step 23. Click the "Next" button.

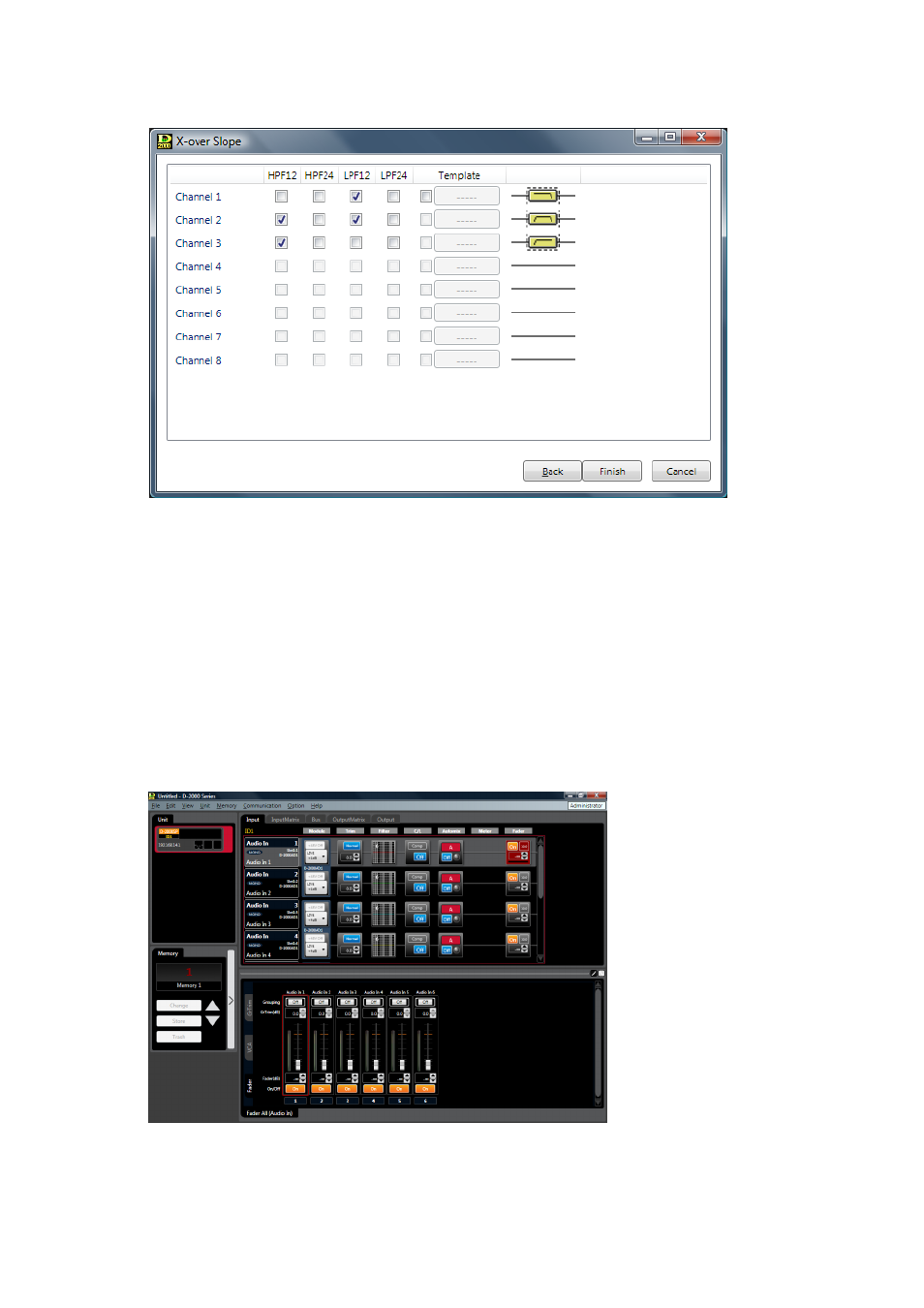

The X-over Slope screen is displayed.
Step 24. Tick the checkboxes for the crossover slope settings.
Setting status is displayed on the right side of the screen.
Note
The template created using the setting software for the D-901 Digital Mixer can be used.
When using the template, tick "Template" check box, then the button located on the right side of a
checkbox becomes active. Click this button, and a dialog box for selecting the file is then displayed.
If you select the file and click the "Finish" button, the signal flow (see below) is displayed.
Step 25. Check to ensure that the setting is correct and click the "Finish" button.
The signal flow is displayed.
