(2) Auto-mixing group setting button [Automix Group]
Sets the auto-mixing group assignment to each channel.
Clicking this button permits groups (A – D) to be selected from the pull-down menu.
This setting can also be performed on the screen displayed by clicking [NOM] or [Ducker] tabs.

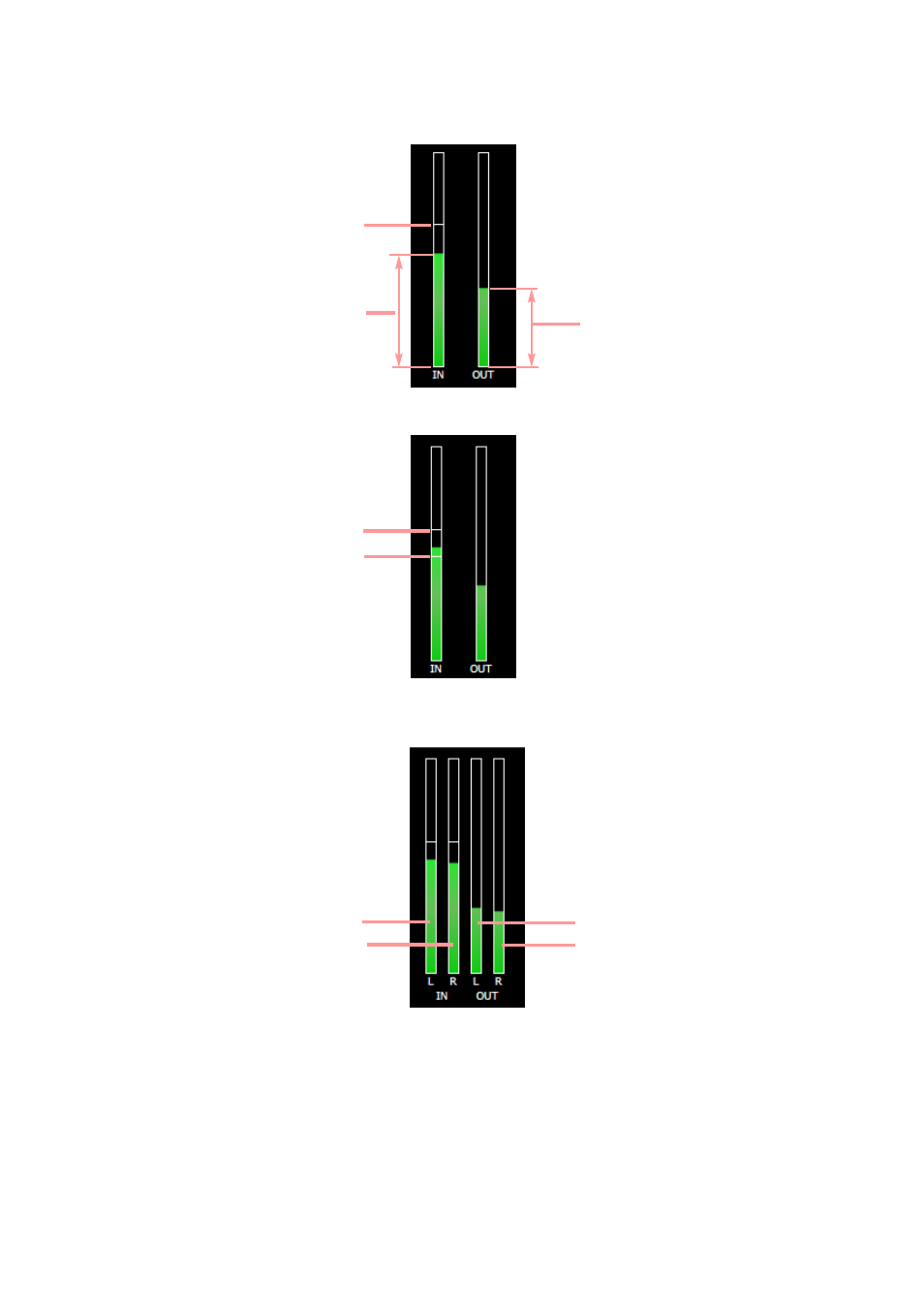

(1) Input/Output level meter
Displays the input/output signal and the threshold levels by way of the following bar graph when the unit is
operating during communications between the unit and the PC.
If the hysteresis is set, both open and close threshold levels are displayed.
If Stereo Link function is set for channels, the level meters of both left and right channels are
simultaneously displayed.
R channel output level meter
L channel output level meter
R channel input level meter
L channel input level meter
Close threshold level
Open threshold level
Threshold level
Output signal level
Input signal level
