7.4.3. Contact output setting screen

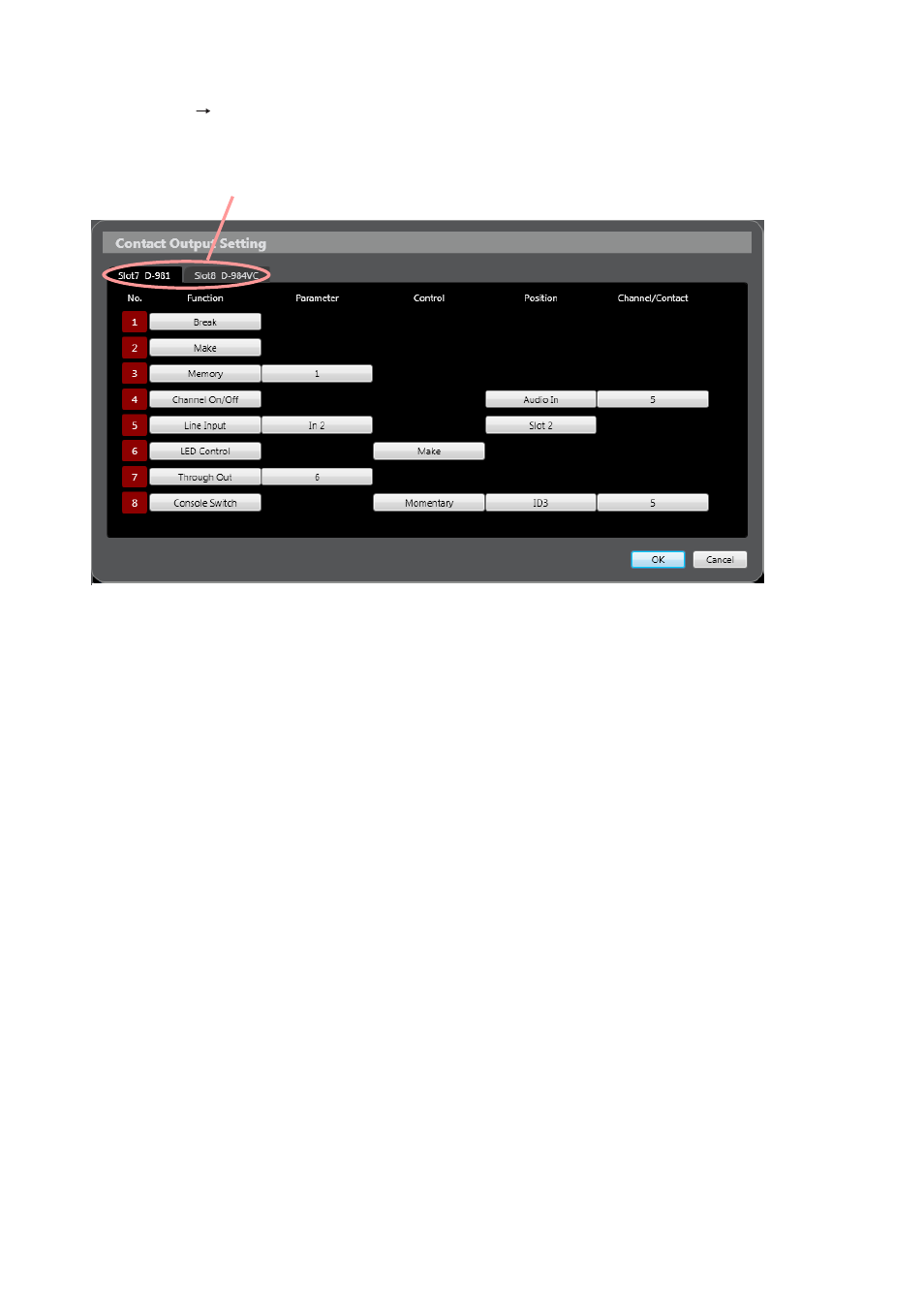

Select "Option Contact Output Setting..." from the menu. The Contact Output setting screen is then
displayed.
If two or more control modules are used, they can be switched using the Display Selection tab.
Display Selection tab
(1) Function
Sets the terminal function.
• Break
Always at break.
• Make
Always at make.
• Memory
Outputs memory selection status.
• Channel On/Off
Outputs channel ON/OFF status.
• Line Input
Outputs line input selection status (the D-936R
or D-937SP must be mounted).
• LED Control
Outputs LED control status.
• Through Out
Outputs input contact terminal status.
• Console Switch
Outputs the D-2012C Remote Console Unit's
function key status
(2) Parameter
When the function is set for "Memory," select the
preset memory number.
When the function is set for "Through Out," select
the input terminal number.
When the function is set for "Line Input," select
the line select number.
(3) Control
When the function is set for "LED Control," select
the contact output from "Make" or "Pulse."
• Make
If the D-2008SP's front panel-mounted level
indicator goes out, the connection between the
corresponding terminal and the C terminal is
open.
• Pulse
A short circuit pulse is generated between the
corresponding terminal and the C terminal
whenever the D-2008SP's front panel-mounted
level indicator switches between ON and OFF.
Select the contact output when the "Console
Switch" function is set.
• Momentary
If the D-2012C's function key is clicked, the
corresponding terminal shorts to the C terminal.
• Latch
A short circuit pulse is generated between the
corresponding terminal and the C terminal
whenever the D-2012C's function key setting is
switched between ON and OFF.
