42

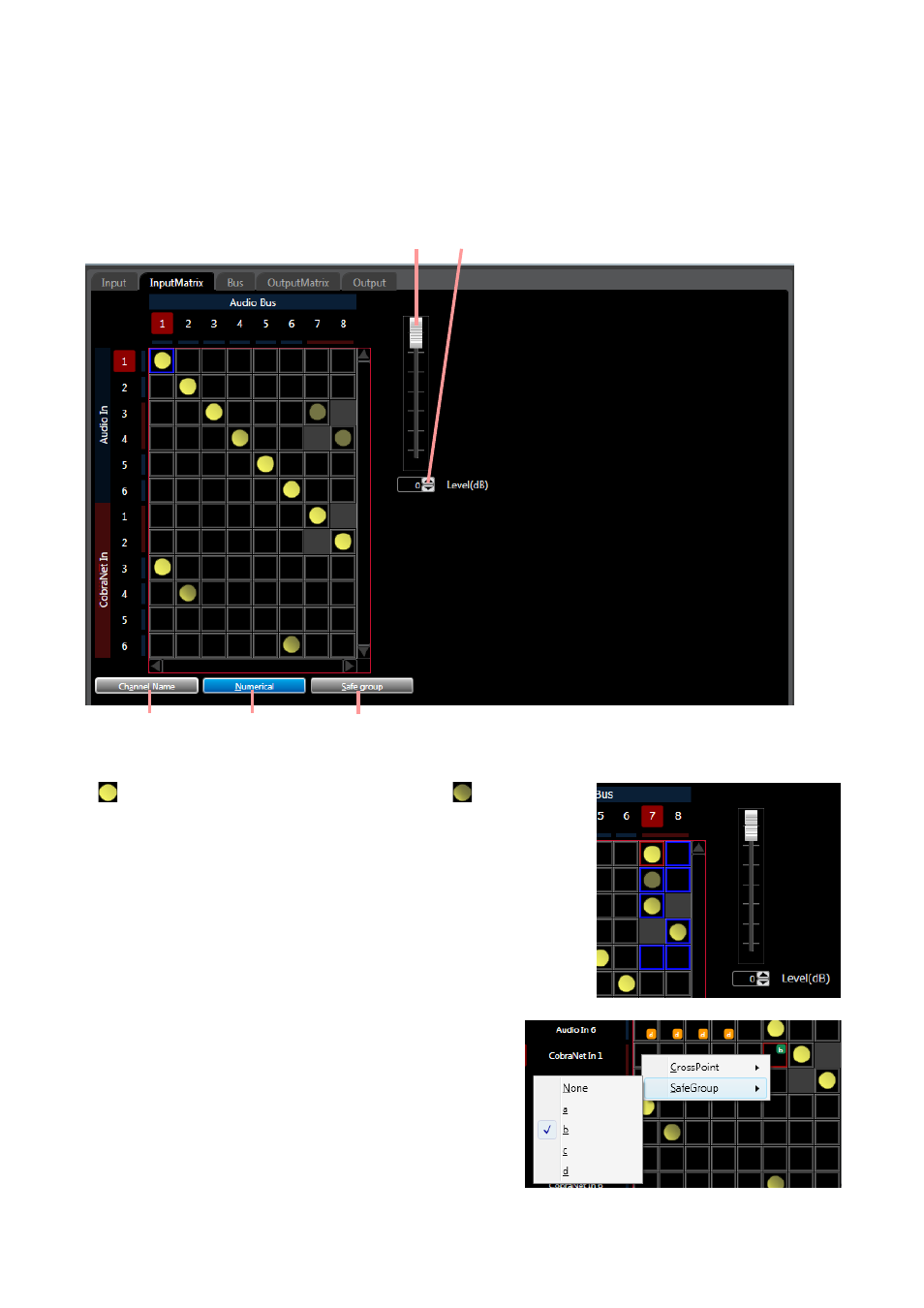

7.2. Matrix View
Clicking Input Matrix or Output Matrix tab displays the Matrix view, allowing settings of assignment and cross
point gains between the input/output channels and buses.
7.2.1. Input Matrix view (Bus assignment and crosspoint gain settings)
Assigns Audio In or CobraNet In channels to the Audio Bus channels.
(3)
(2) (1)
Note
Parts (1) through (5) are explained from
the next page onward.
(4)
• indicates input and output signal routings. Dark mark
represents cross points for which the cross point gain is set
to –1 dB or less.
• A blue, thicker frame indicates the crosspoint being
selected.
• A red, thicker frame indicates the selected crosspoint with
the focus, at which signal level is indicated by the fader.
• Two or more points can be selected by dragging the mouse,
or clicking the mouse while holding down the Ctrl key or
Shift key.
• The selected crosspoint turns on and off as it is double-
clicked or the keyboard space bar is pressed.
• Switching the crosspoint ON/OFF and changing the Change
Safe group are possible from the right-click menu appearing
on the crosspoint.
• Switching the crosspoints ON/OFF and changing the
Change Safe groups simultaneously in a column or row are
possible from the right-click menu appearing on the numeral
that represents the channel number.
• Bus assignments and cross point gains between two stereo
channels are linked and operated.
(See
p. 20 , "Stereo link functions" and "Stereo link setting
restrictions." )
(5)
