30

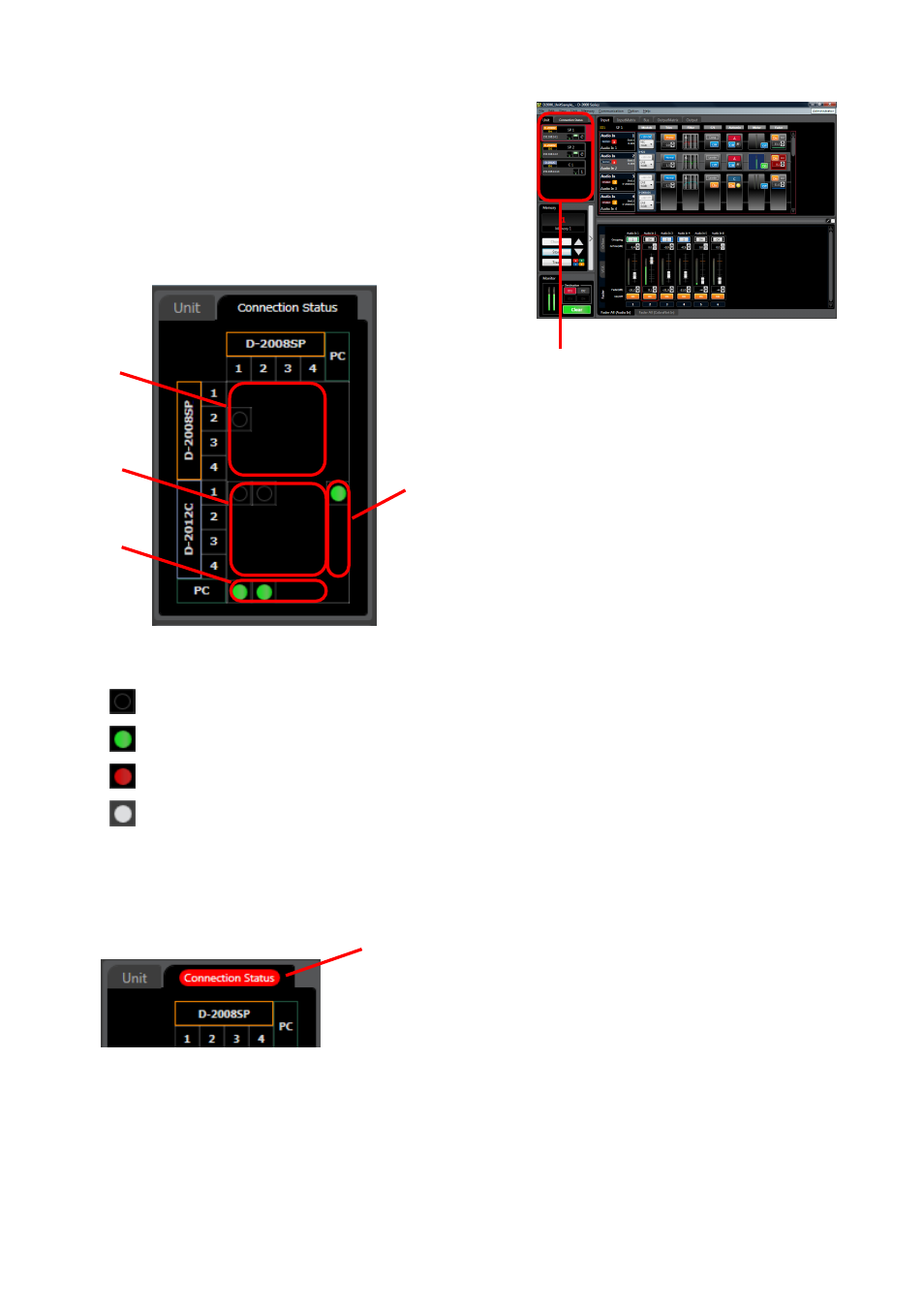

6.2. Connection Status View

Clicking the connection status tab at the upper left of the main
screen at the time of connection displays the connection
status view.
Connection status between the units can be confirmed.

Connection status view

The above view displays the connection status described below at the crosspoint between each unit.

: Unconnected (or not connectable)

: Connected

: Communication error

: Unknown state (Status cannot be obtained due to connection failure between the PC and related

units)

If a communication error occurs on any of the unit, "Connection Status" tab name will be shown in white on
red background.

(4)

(1)

(2)

(3)

(1) Between the D-2008SP and D-2008SP

(2) Between the D-2008SP and D-2012C

(3) Between the D-2008SP and PC

(4) Between the D-2012C and PC

Connection status tab
