Step 7. Click the "Next" button.

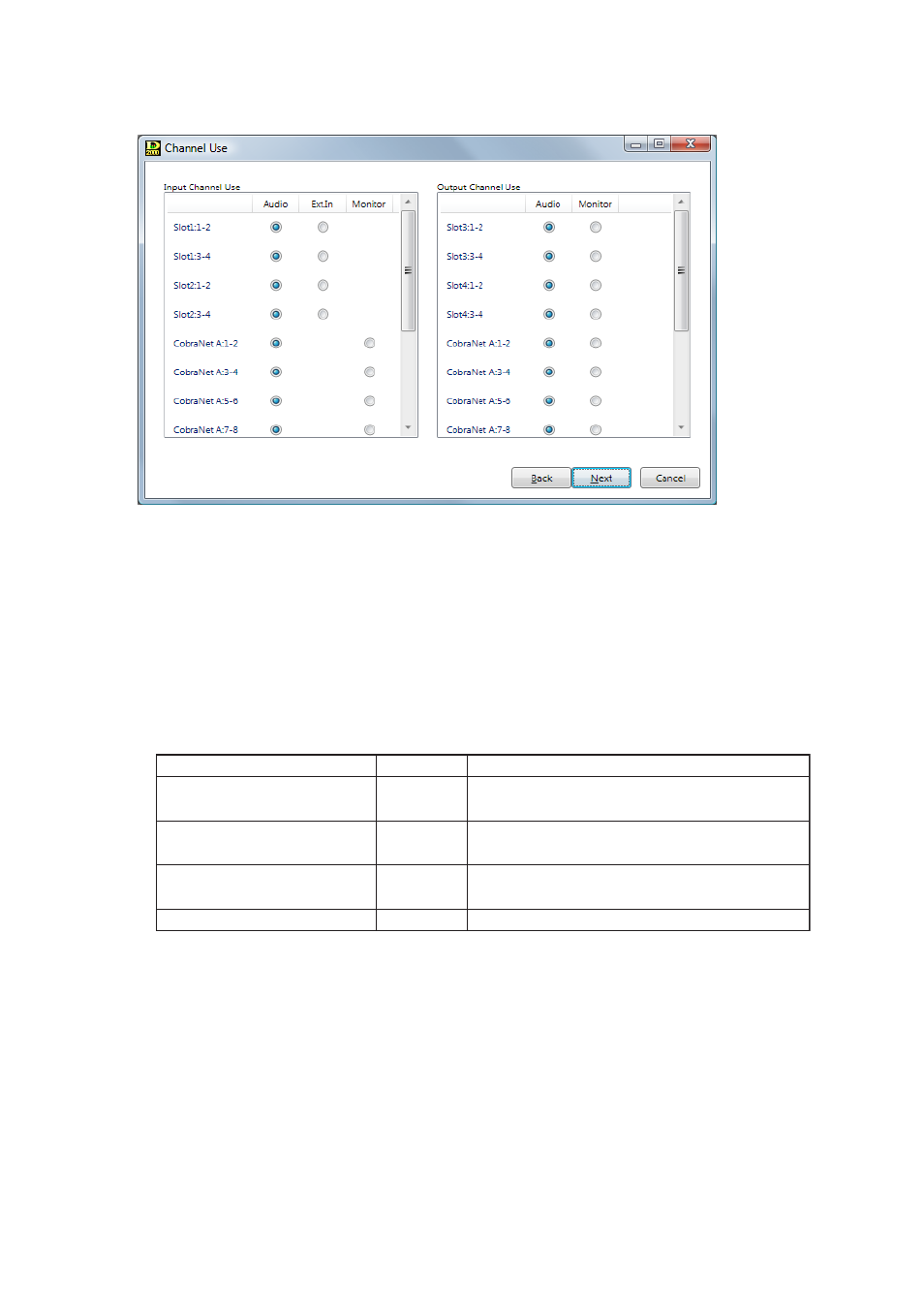

The Channel Use screen is displayed.

Step 8. Set Channel Usage.

8-1. Input Channel Use Settings

Select the use to be assigned to each module slot in 2-channel units from "Audio," "Ext.In*," or
"Monitor."

* "Ext. In" is the external input used for direct input to the output matrix. Refer to the block diagrams

included in the separate installation manual.

Notes
• Slot 1 – Slot 4 cannot be used for "Monitor."
• The input modules used for "Monitor" are subject to the restrictions listed below.

8-2. Output Channel Use Settings

Select the use to be assigned to each module slot in 2-channel units.
It can be selected in "Audio."
"Monitor" can be set to each D-2008SP's ID number from 4 monitor channels. (See

p. 19

When the channel to be monitored is selected on the D-2000 Setting Software or D-2012C, audio on
the corresponding channel of this unit is output.

Input module

Availability

Restriction

D-2000AD1, D-921F, D-921E

D-923F, D-922E

D-923AE

D-936R, D-937SP

Usable

Not usable

"Phantom power" is fixed to "OFF," and "Input
sensitivity" to "+4 dB."

Set "Phantom power" to "OFF," and "Input
sensitivity" to "+4 dB" using the DIP switch.

The setting status cannot be displayed on the
D-2000 Setting Software.

Not usable
