13.2. Setting Example for Use in Multi-Purpose Halls
The data sample "Hall.d8t" is a setting example for the system in a multi-purpose hall.
13.2.1. System description
• Includes two D-2008SPs and two D-2012Cs.
• Assumed to be used in a facility with a dedicated operator, offering a certain degree of setting flexibility.
• Permits two separately-located D-2008SPs to transmit audio signals to each other using the Cobranet.
• The speaker output is divided into Low, Mid, and High in the Xover view, and the recommended speaker
parameters are set.
• To increase sound clarity for the microphone and wireless microphone inputs, HPF is set in the Filter view.
• To protect the microphone and wireless microphone inputs from excessive signals, the Comp function is set
in the Comp/Leveler view.
• The FBS function is set for the microphone and wireless microphone to prevent feedback.
• The D-2012C performs volume controls for individual inputs and outputs.
• Channel assignment is made to two D-2012Cs so that inputs and outputs can be separately controlled: input
channels are assigned to the D-2012C with ID 1, and output channels to the D-2012C with ID 2.
13.2.2. System configuration
• D-2008SP (with two D-2000AD1s, five D-2000DA1s, and one D-2000CB) x 1
• D-2008SP (with two D-2000AD1s, six D-2000DA1s, and one D-2000CB) x 1
• D-2012C x 2
• Main speakers (3 sets of the following 3 speakers)
SR-C8L x 2 (driven by bi-amplifier)
SR-C8S x 2 (driven by bi-amplifier)
SR-C15B x 1
• Sub-speaker: HX-5B x 10
• Monitor speaker: F-1300B x 2

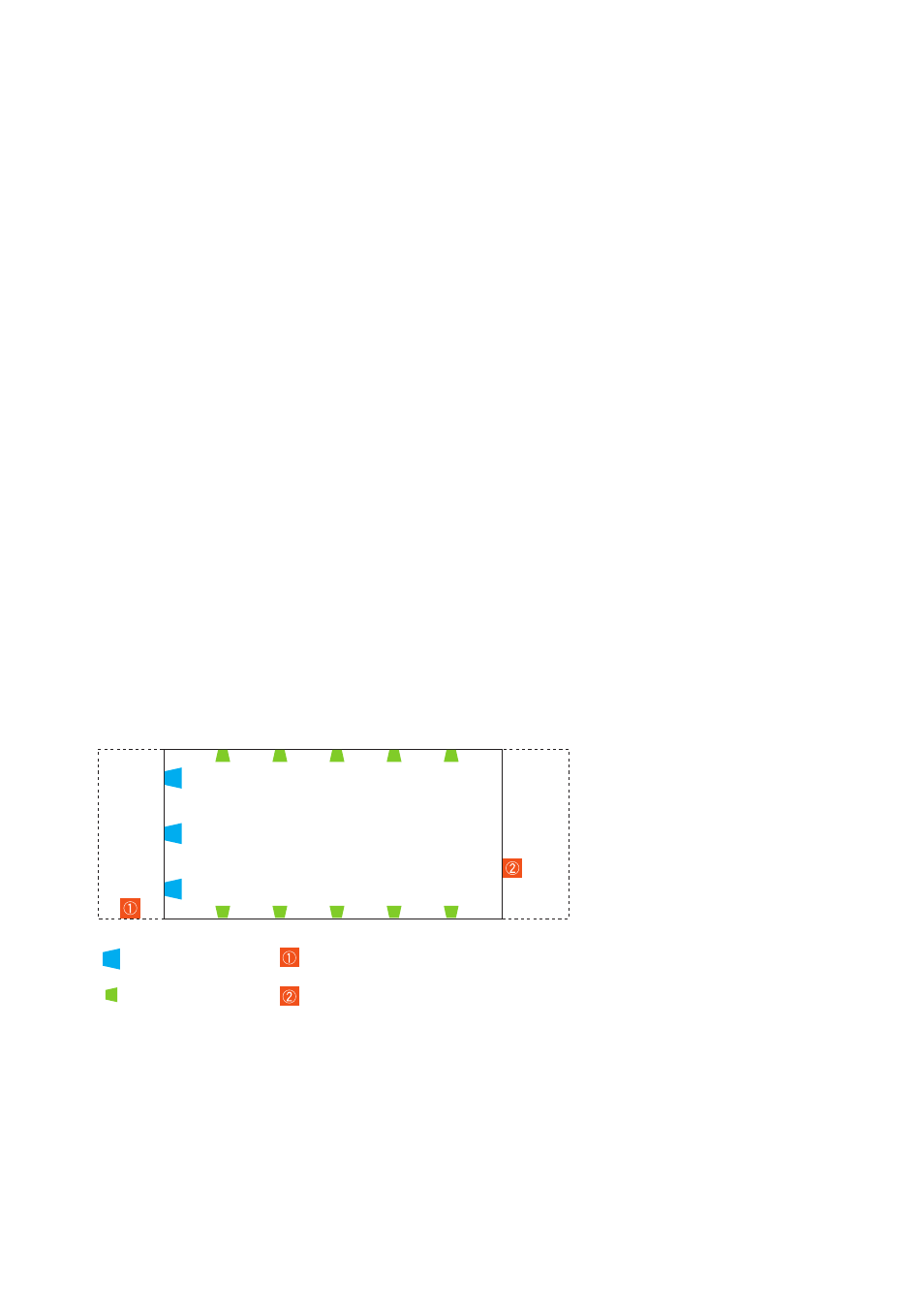

13.2.3. Equipment layout
Stage
Acoustic
room
Main speaker
Sub-speaker
D-2008SP (ID 1)
D-2008SP (ID 2) and D-2012Cs (ID 1 and ID 2)
