7.3.6. Fader view (Input/bus/output gain, input/bus/output VCA display, and input/bus/output group
trim settings)
Clicking the Fader box in the Input/Bus/Output flow view causes the Fader view to be displayed in the
Contents view with tab displays for each channel area and Channel On/Off button, Gain Display button, VCA
Level indicator and Grouping Color displays visible. The box and Content view displays are interlocked,
allowing the same channel ON/OFF and gain settings to be performed from either of the two.

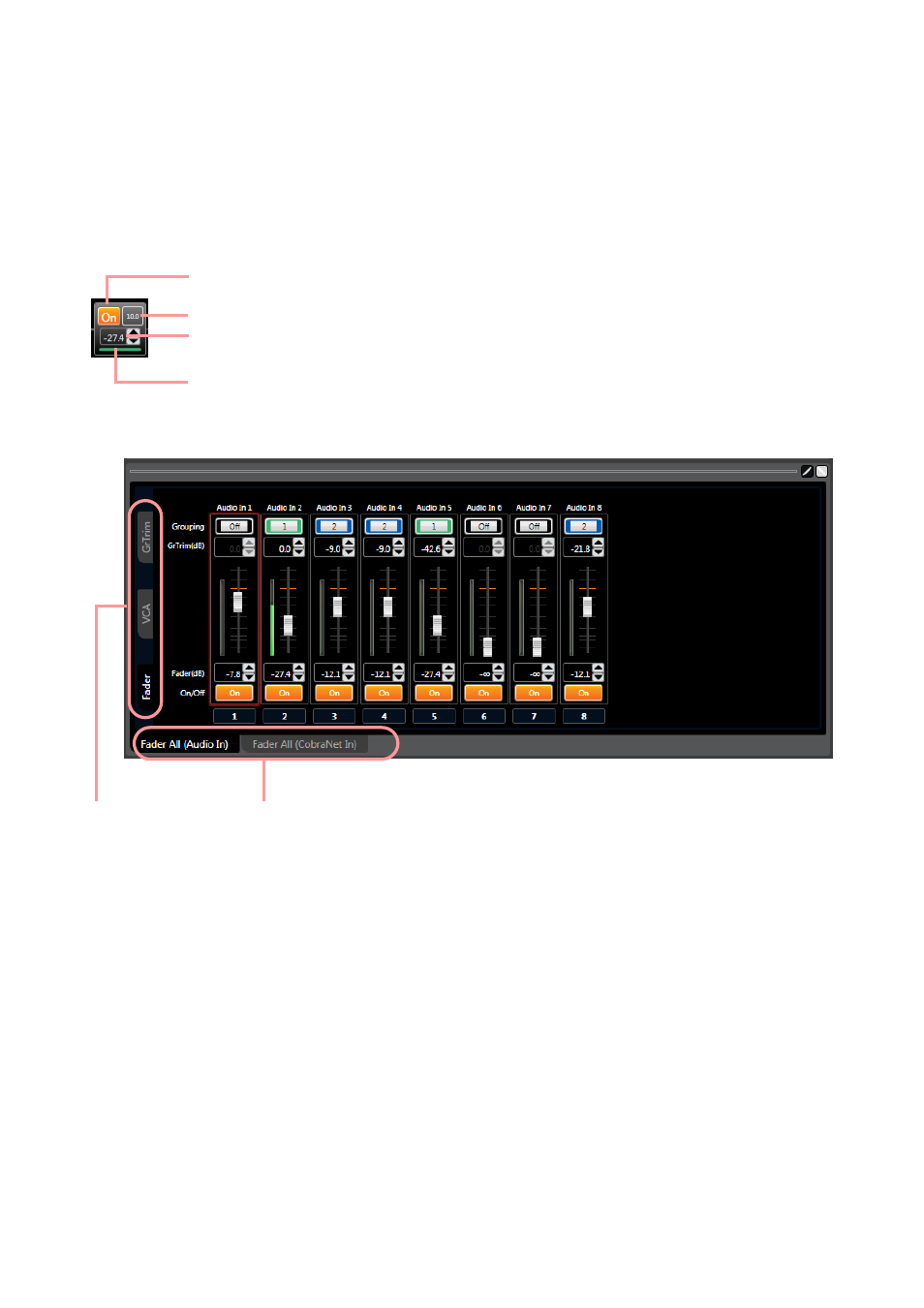

[Fader box]
Grouping color display
Gain indication button
VCA level display
Channel ON/OFF button
[Fader view]
(1) (2)
(1) Channel area selection tab [Fader All (channel area name)]
Switches channel areas.
(2) Display selection tab [Fader/VCA/Gr Trim]
Selects the Fader display, VCA display, or Group Trim display for channel area faders selected with the
Channel Area Selection tab.
