7.3.2. Trim view (Input trim settings)
Clicking the trim box on the Input Flow view displays the Trim view in the Contents view.
The trim box contains the Polarity Reverse and Gain Display buttons. The Trim Box and Contents View
displays are interlocked, allowing the same setting to be performed from either of the two.
(2)
(3)
(4)
(1)
[Trim box]
(2)
(3)

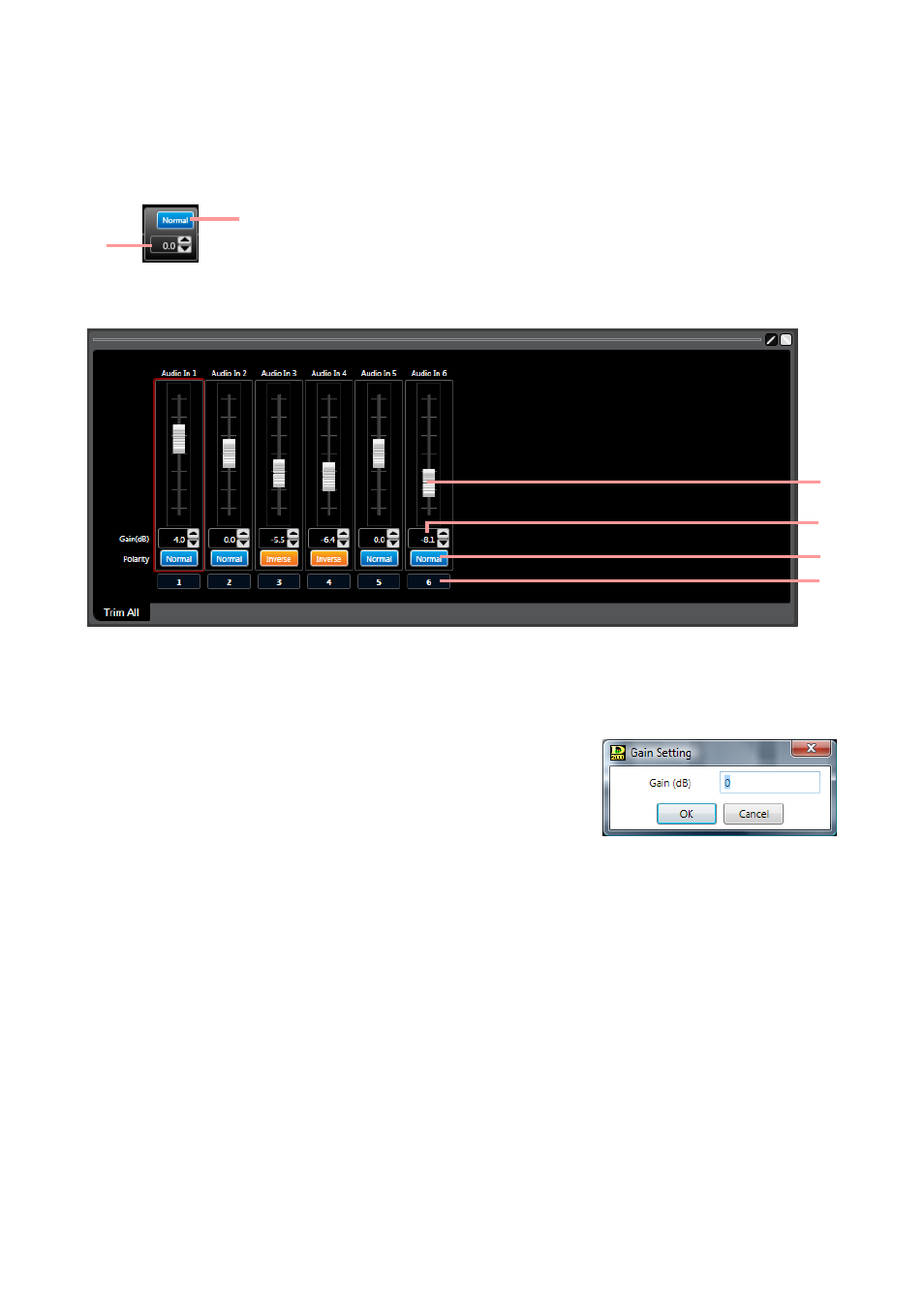

[Trim view]
(1) Fader
You can change the signal level of each channel by moving this fader up and down.
(2) Gain indication button [Gain (dB)]
Indicates each channel signal level by means of numerical values.
If you click this button, a dialog for gain setting is displayed,
enabling you to set the gain by directly entering a numerical value.
(Setting range: –15 to +15 dB)
You can also change the gain in 0.1 dB units with the Up and Down
buttons located on the right side.
(3) Polarity reverse button [Polarity]
Displays each channel's polarity. Clicking this button permits the polarity to be reversed.
(4) Channel number display
Displays each channel number.
