9.3. Console SEL/MONI Link Setting
Pressing each Monitor channel selector key on the D-2012C causes the corresponding channel of the D-
2008SP on the D-2000 Setting Software to be selected.
When the SEL/MONI key interlock function is enabled according to the procedure below, the setting data is
stored in the PC's internal memory, permitting the screen display on the PC's D-2000 Setting Software to be
switched in synchronization with the D-2012C operations.
Note
This setting should be performed on each individual PC, and cannot be stored in the data file.

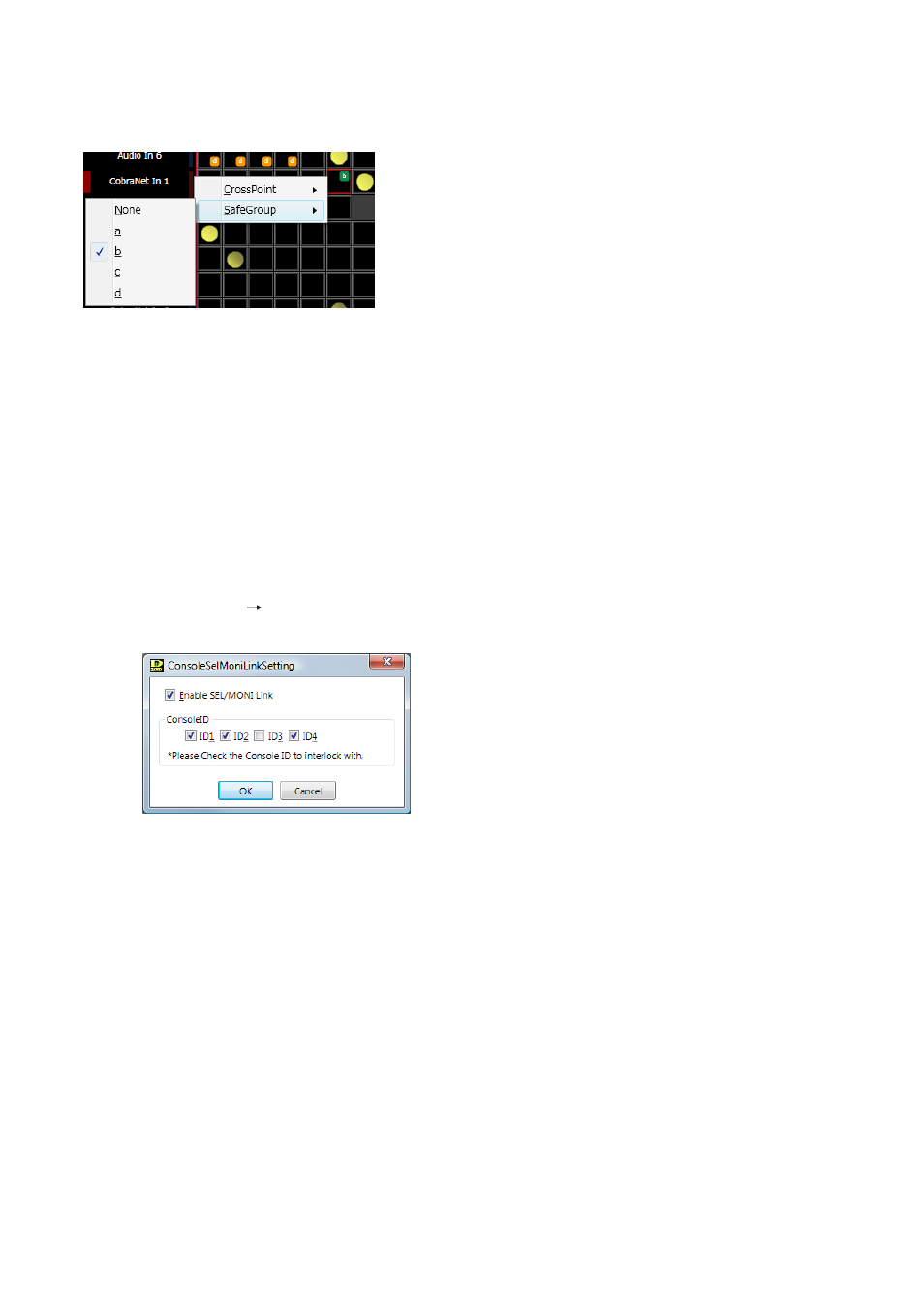

Step 1. Select "Option Console SEL/MONI Link Setting" from the menu.
The Console SEL/MONI Link Setting dialog is displayed.
Step 2. Tick the "Enable SEL/MONI Link" checkbox.
Step 3. Tick the console ID number checkboxes to link.
Step 4. Click the "OK" button.
9.2.5. Matrix crosspoint setting (only when the Change Safe function is enabled)
Set the Change Safe groups in the Matrix view (see p. 42 ).
Right-click on the crosspoint, then select one Change Safe group from the displayed pull-down menu.
