Toa D-2000 Series - Manual (Page 60)

60
(3) Auto-Leveler target level button [Target Level (dB)]
Displays the Auto-Leveler's threshold level for each channel by
means of numerical values. If you click this button, a dialog for
threshold level setting is displayed, enabling you to set the level by
directly entering a numerical value.
Setting Range: –20 to +10 dB
You can also change the level in 1 dB units with the UP and Down
buttons located on the right side.
(4) Auto-Leveler max gain button [Max Gain (dB)]
Displays the Auto-Leveler max gain for each channel by means of
numerical values. If you click this button, a dialog for max gain
setting is displayed, enabling you to set the level by directly entering
a numerical value.
Setting Range: 0 to +20 dB
You can also change the level in 1 dB units with the UP and Down
buttons located on the right side.
(5) Auto-Leveler attack button [Attack (ms)]
Displays the Auto-Leveler attack time for each channel by means of numerical values.
If you click this button, setting values can be selected from the pull-down menu.
The Up and Down buttons located on the right side can also be used to change the value.
(6) Auto-Leveler release button [Release (ms)]
Displays the Auto-Leveler release time for each channel by means of numerical values.
If you click this button, setting values can be selected from the pull-down menu.
The Up and Down buttons located on the right side can also be used to change the value.
(7) Auto-Leveler ON/OFF button [On/Off]
Displays the ON/OFF setting status of the Auto-Leveler in each channel.
Click this button to turn on or off each Auto-Leveler.
If Stereo Link function is set to channels, the level meters of both left and right channels are
simultaneously displayed.
(2) Input/Output level meter

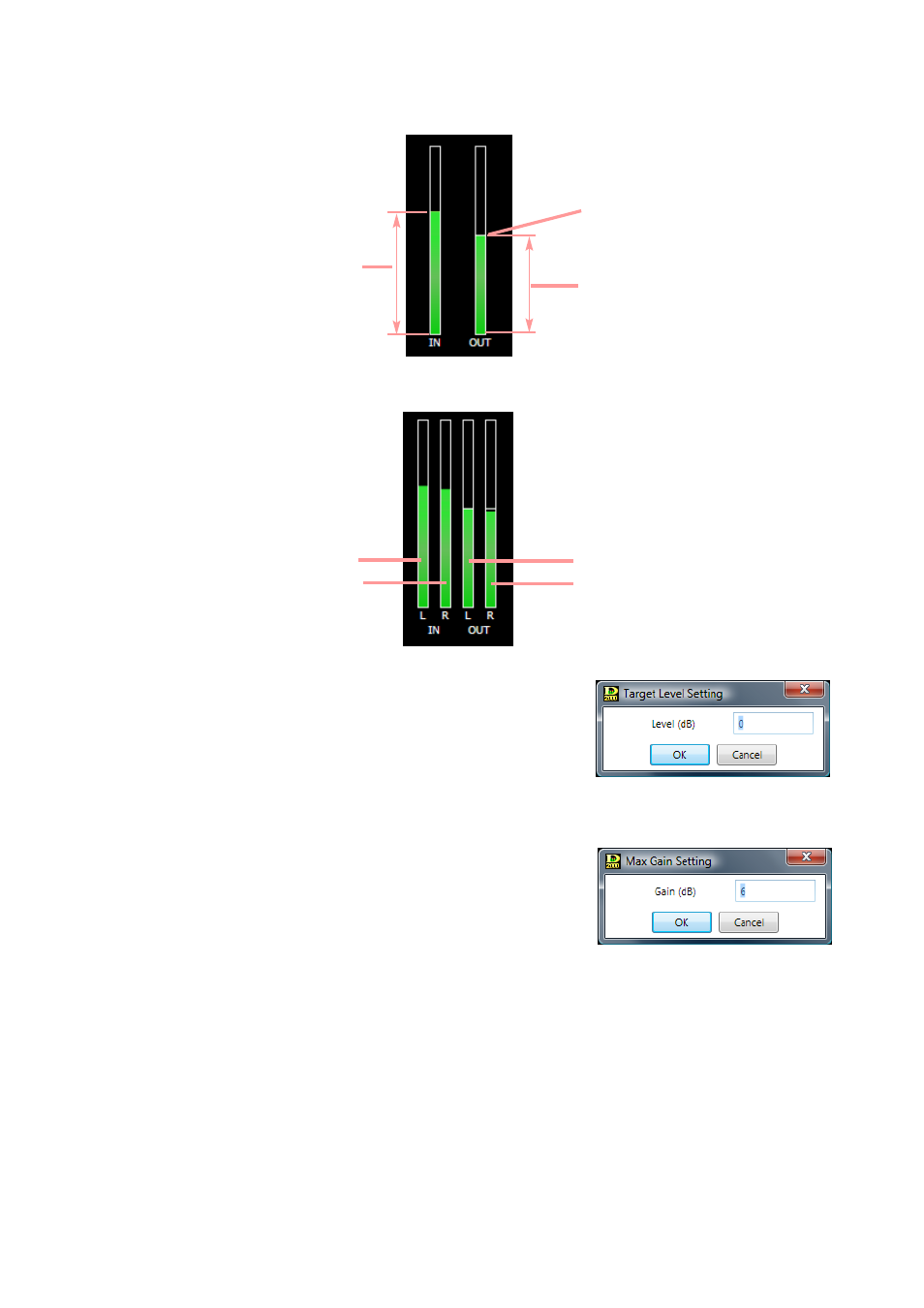

Displays the input/output signal and the target levels by way of the following bar graph when the unit is
operating during communications between the unit and the PC.
R channel output level meter
L channel output level meter
R channel input level meter
L channel input level meter
Output signal level
Target level
Input signal level
