Toa D-2000 Series - Manual (Page 138)

138

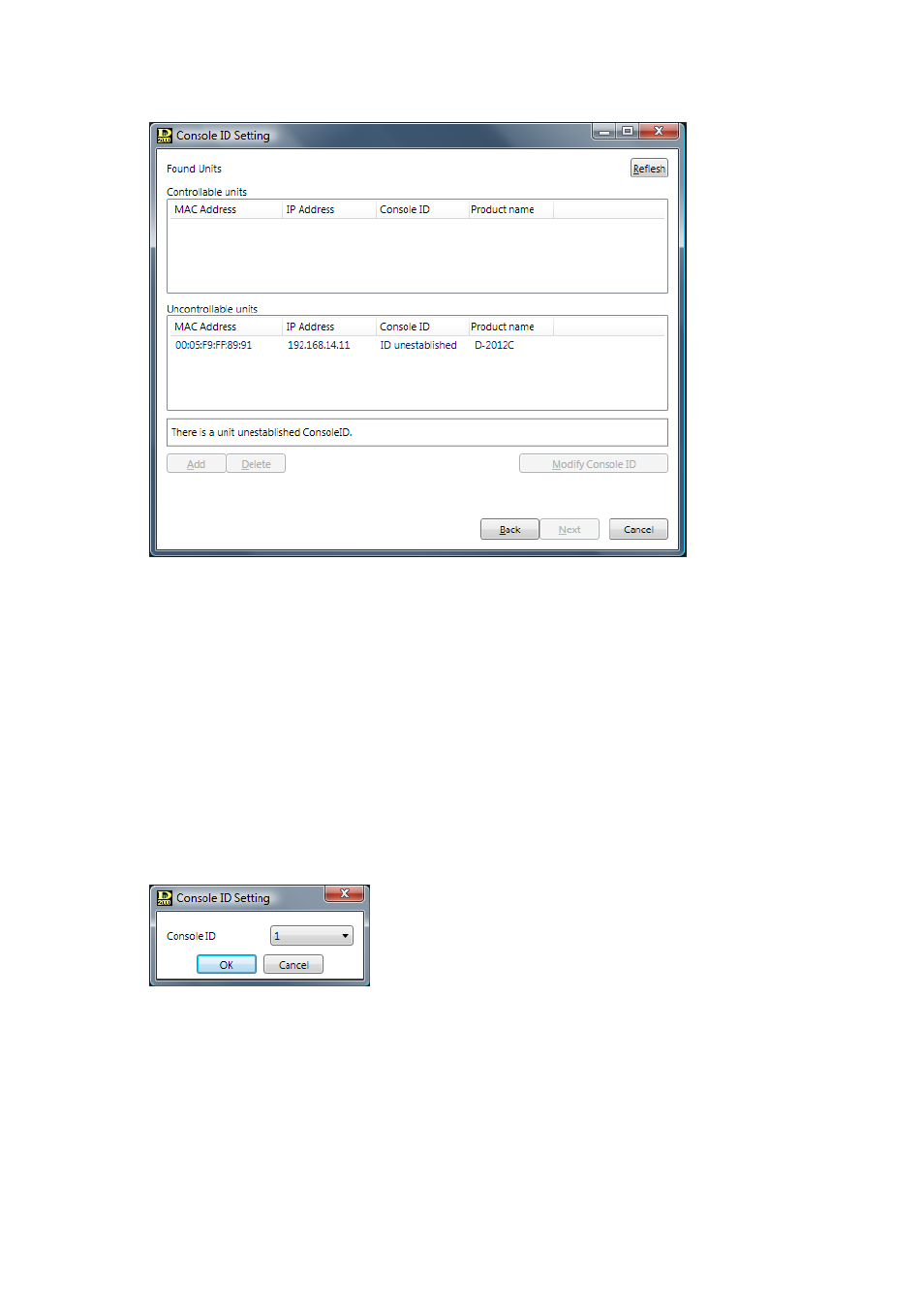

14-2. If the "Next" button is clicked:
The Console ID Setting screen is displayed.
• If the D-2012C's ID number has not been set, the unit is displayed in the Uncontrollable units list.
• If a unit that does not need to be controlled is displayed, advance to Step 15 to delete it from the
list.
• To set the D-2012C's ID number, advance to Step 16.
• If all units to be controlled are shown in the Controllable units list, advance to Step 17.
Step 15. Delete the unit from the list.
Select the unit to be deleted, then click the "Delete" button.
The selected unit is deleted from the list.
Step 16. Set the D-2012C's ID number.
Select the unit from the Uncontrollable units list and click the "Modify Console ID" button.
The Console ID Setting screen is displayed.
To set the D-2012C's ID number, select the ID from the pull-down menu, and click the "OK" button.
Step 17. Click the "Finish" button.
Setting is complete.
