7.6. Word Clock Synchronization Settings
7.6.1. Word clock synchronization
One of the following three word clock synchronization methods can be selected for the D-2008SP.
Note
This setting cannot be performed online.
(1) Internal (initial value)
This is a standard word clock synchronization method. Use this setting when using neither an external clock
generator nor the D-2008SP's CobraNet connection function. This setting cannot be selected when CobraNet
is selected in the unit's input and output settings.
(2) CobraNet
This setting is automatically selected when the CobraNet use has been set on the unit’s I/O Setting screen.
Note
Performing the CobraNet setting on the unit’s I/O Setting screen automatically selects this setting even if the
CobraNet interface module is not installed. In this case, no analog audio signal is output from other module,
either.
(3) External
Use this setting when using an external clock generator.
This setting cannot be selected when CobraNet use has been set on the unit’s I/O Setting screen.
7.6.2. Settings
Note
When the CobraNet use has been set on the unit’s I/O Setting screen, the word clock synchronization method
is fixed to "CobraNet," thereby disabling its selection and change.
Step 1. Select "Option Wordclock Setting..." from the menu.

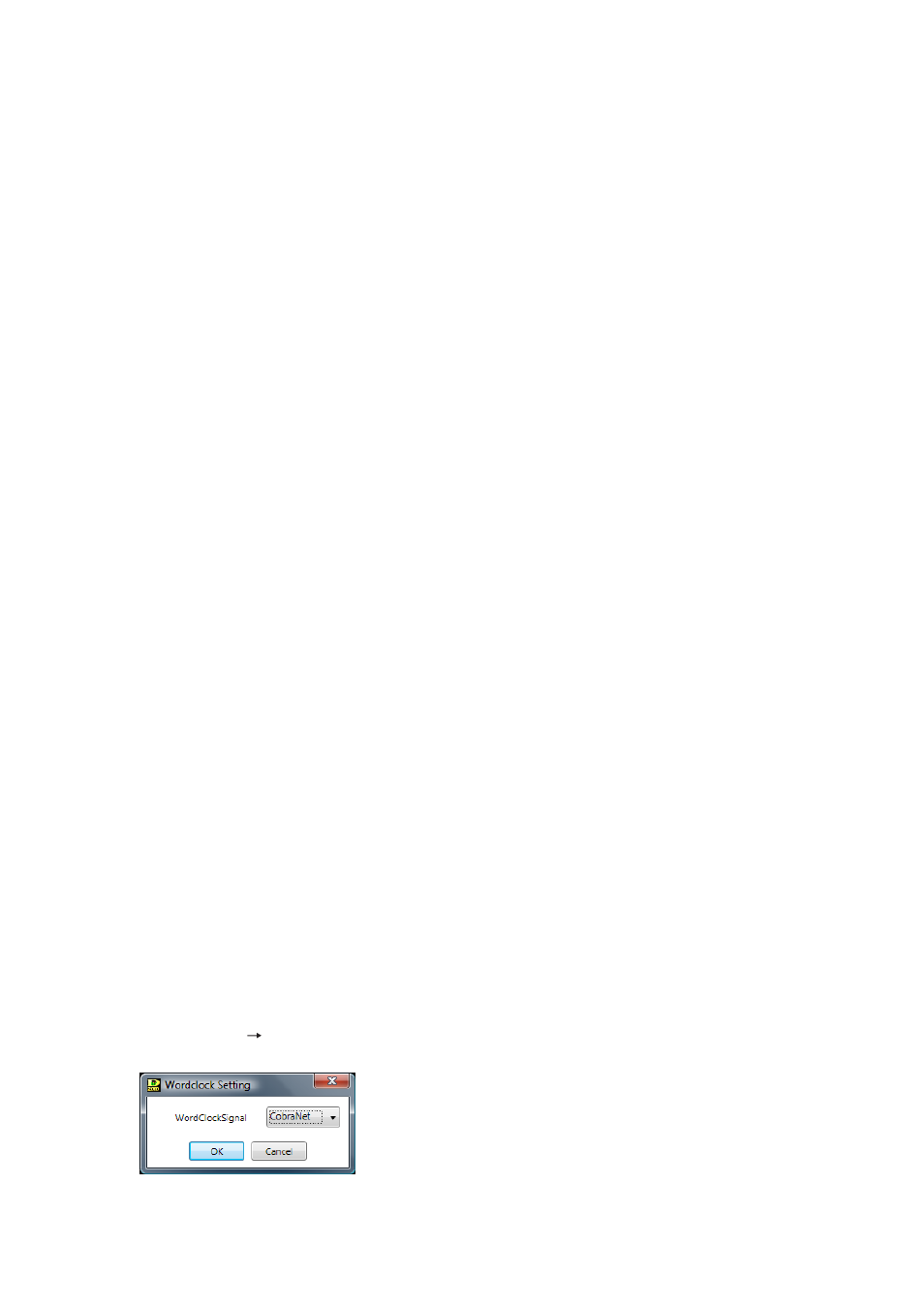

The Wordclock Setting screen is then displayed.
Step 2. Select from the pull-down menu, then click the "OK" button.
Step 3. Set the following 2 items as needed.
Note
These settings cannot be performed online.
• Latency and Bit Length
Select this combination setting.
This setting is effective for all the D-2008SP units in the current working file simultaneously.
• Conductor Priority
This setting is effective for all the D-2008 units with ID1 to 4 simultaneously.
Enter the value according to the priority level.
Normally, leave this setting as it is.
Step 4. Click the "OK" button.
