Rockwell Automation 7000 PowerFlex Medium Voltage AC Drive (B Frame) - ForGe Control (PanelView 550) User Manual
Page 93
Rockwell Automation Publication 7000-UM151E-EN-P - January 2013
93
Component Definition and Maintenance Chapter 3
7. The DC link is heavy and has provision for lifting with forks of a lift truck.

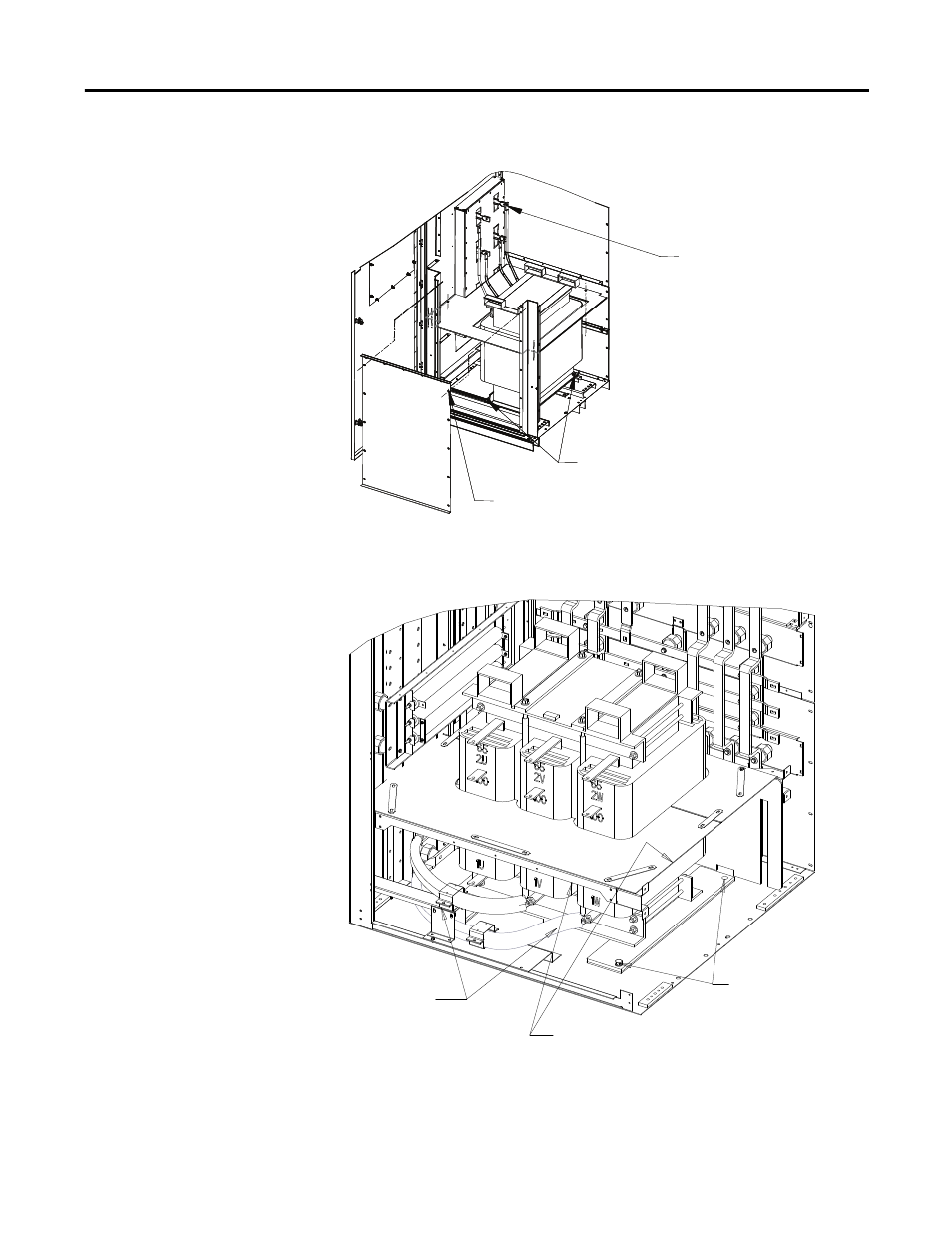

Figure 69 - DC Link removal (standard model)
Figure 70 - DC reactor removal (heatpipe model)
Step 2: Unfasten DC links leads.
Remove DC link hardware
and slide DC link forward.
Remove hardware
Step 3:
Step 1:
and DC link barrier.
Step 2: Unfasten DC links leads.
Remove DC link hardware
and slide DC link forward.
Remove hardware
Step 3:
Step 1:
and DC link barrier.
STEP 1: REMOVE FRONT LINE REACTOR
BARRIER AND FRONT BARRIER SUPPORT BRACE.
STEP 2: UNFASTEN LINE REACTOR
LEADS AND REMOVE FRONT CABLE
BRACING.
STEP 3: REMOVE LINE REACTOR
HARDWARE AND SLIDE LINE
REACTOR FORWARD.
