184 Rockwell Automation Publication 7000-UM151E-EN-P - January 2013
Chapter 4 Initial Operator Interface Configuration
PCMCIA – Personal Computer Memory Card International Association is a
standard for flash memory cards.
PowerFlex operator interface – The PanelView 550 interface hardware and the
unique software contained within it, enabling the unit to function with the
medium voltage drive.
Read-only parameter – A memory location that is readable but not writable. A
read-only parameter contains real-time data that the operating system uses to read
the current drive conditions, such as running speed.
Tag – A generic reference to either a parameter or a read-only parameter.
XIO – the eXternal Inputs and Output adapters that transmit hard-wired signals
to the drive.
Keypad
The keypad of the operator interface consists of two rows of five function keys
(item 1 of
Figure 156 ) located below the operator interface display area (item 4 of
Figure 156 ). In the lower right corner of the operator interface are the four cursor
keys, indicated as
▲
or
▼ ◄
or
►
(item 2 of Figure 156 ). Above the cursor keys
are data entry keys consisting of the numeric values 0-9, a decimal point (.), a
negative (-), a backspace key, and a data entry key (item 3 of
Figure 156 ).

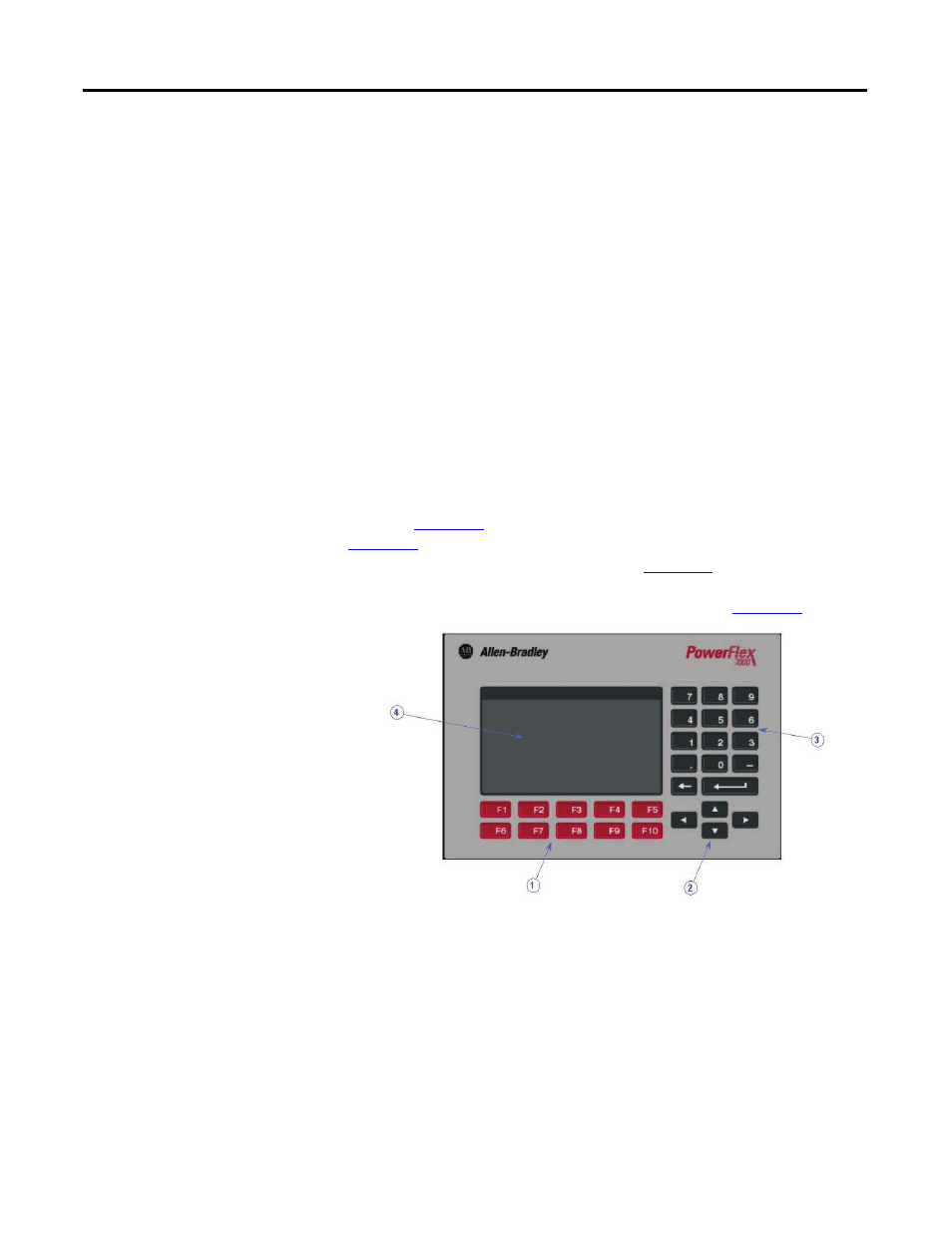

Figure 156 - PowerFlex 7000 “B” Frame Operator Interface Terminal
All keys are of a membrane type. The key function activates when you release the
key.
