Chapter 5 Drive Programming and Parameters
Display Parameters
You can configure the interface to constantly display the drive parameters. From
the top-level menu, press [F4]. The DISPLAY GROUP screen shows one or
more pages of groups, depending on the current access level. Use the
▲
or
▼
to
choose a display group, and press [Enter].

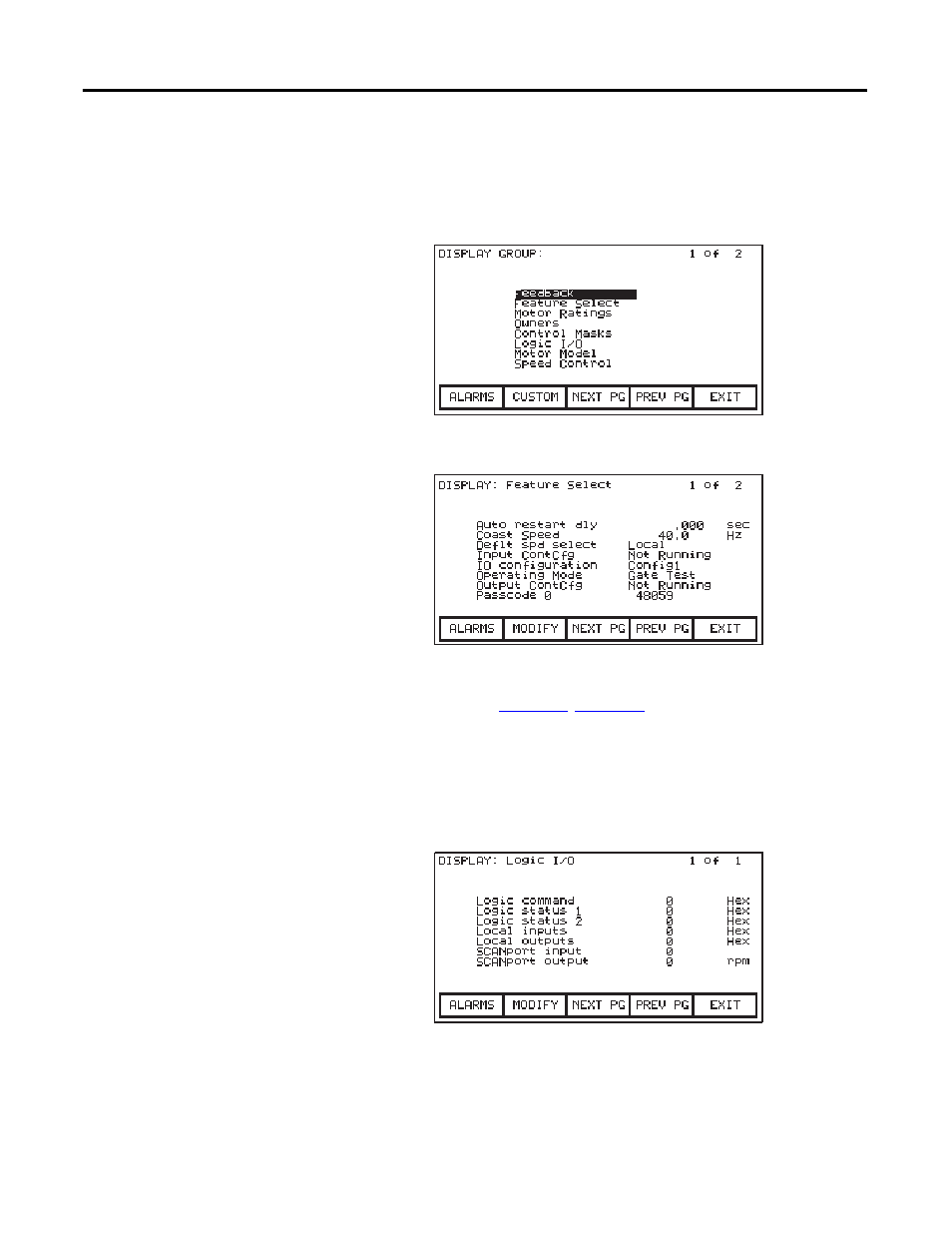

Figure 211 - Display groups
Figure 212 - Feature Select Group Chosen
The DISPLAY screen ( Figure 211 , Figure 212 ) shows the selected group name
(“FEATURE SELECT”), and one or more pages of group options, as well as the
tag value and its unit of measurement.
Bit-encoded values display a hex value for the parameter value. Use
▲
or
▼
to
select the bit-encoded parameter and press [Enter].
Figure 213 - Bit-encoded parameter
