Chapter 5 Drive Programming and Parameters
Set the value (data) using the data entry keys [0]-[9]. Use [-] to indicate a negative
value. Use [.] to enter a decimal point for fractional values. Edit the field value by
pressing [Backspace] to clear the field from right to left. Press [Enter] to accept
the new value, as shown in
Figure 225 .
If you attempt to enter a new value outside the value’s defined limits the interface
defaults the value to the nearest limit. For example: if you enter 900 when the
minimum value is 1000, the new value will be 1000.

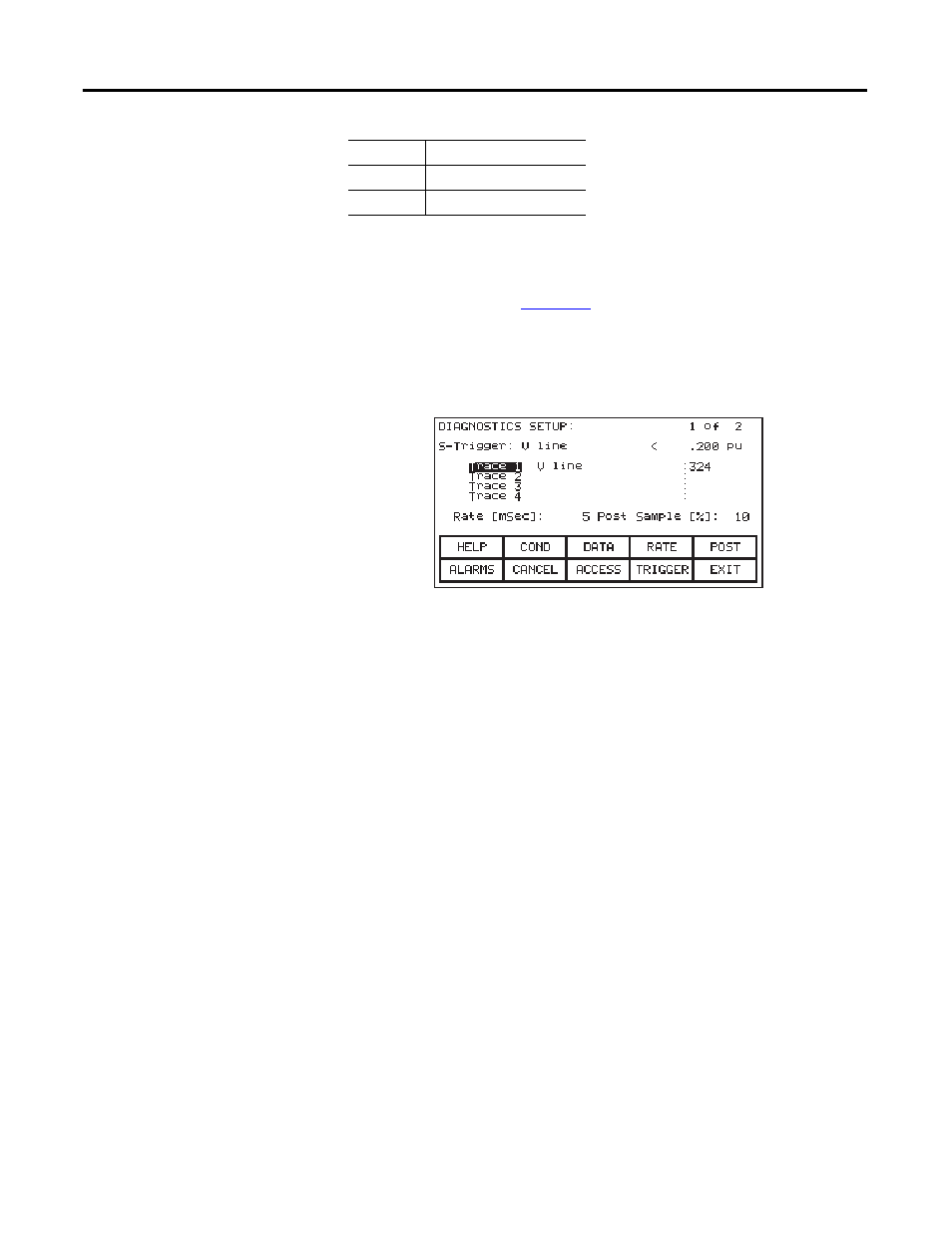

Figure 225 - Trigger condition
Some data is HEX-only. For HEX values, use
▲
or
▼
to scroll through values 0-
F for the right most digit. To accept the first digit and select a value for the
second, press
►
. Press [Enter] to accept the value. Edit HEX values by pressing
[Backspace].
Defining Sample Rate and Positioning
Press [F4]to configure sample rates, from 0 msec (maximum collection speed) to
20.000 seconds.
When the drive collects samples, it uses part of the buffer to store values prior to
the trigger point, and the remainder of the buffer for values after the trigger. Press
[F5] to define the percentage of the trend buffer to allocate to values collected
after the trigger occurrence. Edit this data field in the same manner as the trigger
data.
N+ Boolean NOR
& Boolean AND
N& Boolean NAND
