Component Definition and Maintenance Chapter 3
Analog Control Board (ACB)
The Analog Control Board (ACB) is the hub for all control-level signals external
to the drive. The drive routes analog I/O, external fault signals (through the XIO
board), DPI communication modules, remote I/O, terminal interface, printers,
modem, and other external communication devices through this board.

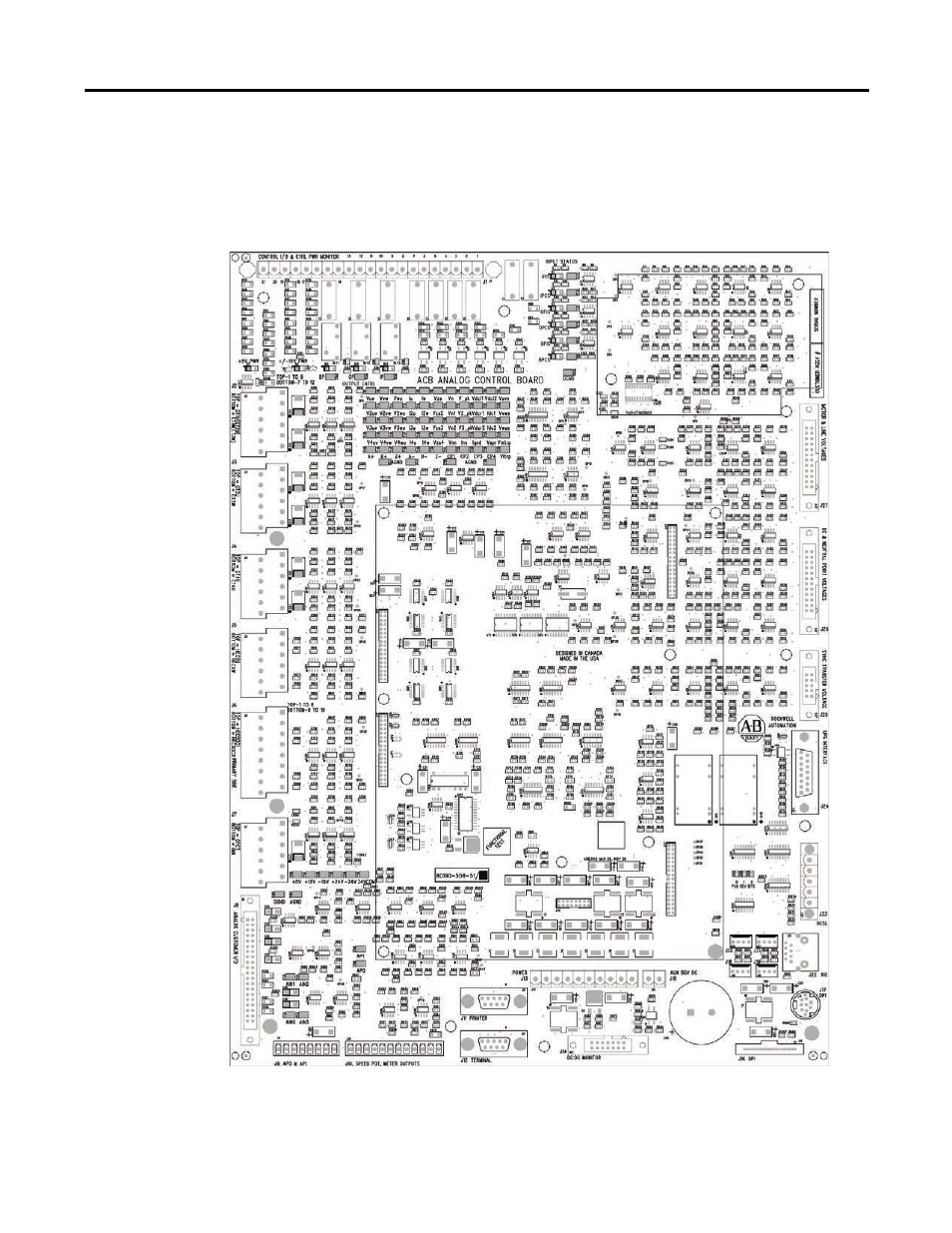

Figure 92 - ACB analog control board
