Rockwell Automation Publication 7000-UM151E-EN-P - January 2013 217
Drive Programming and Parameters Chapter 5

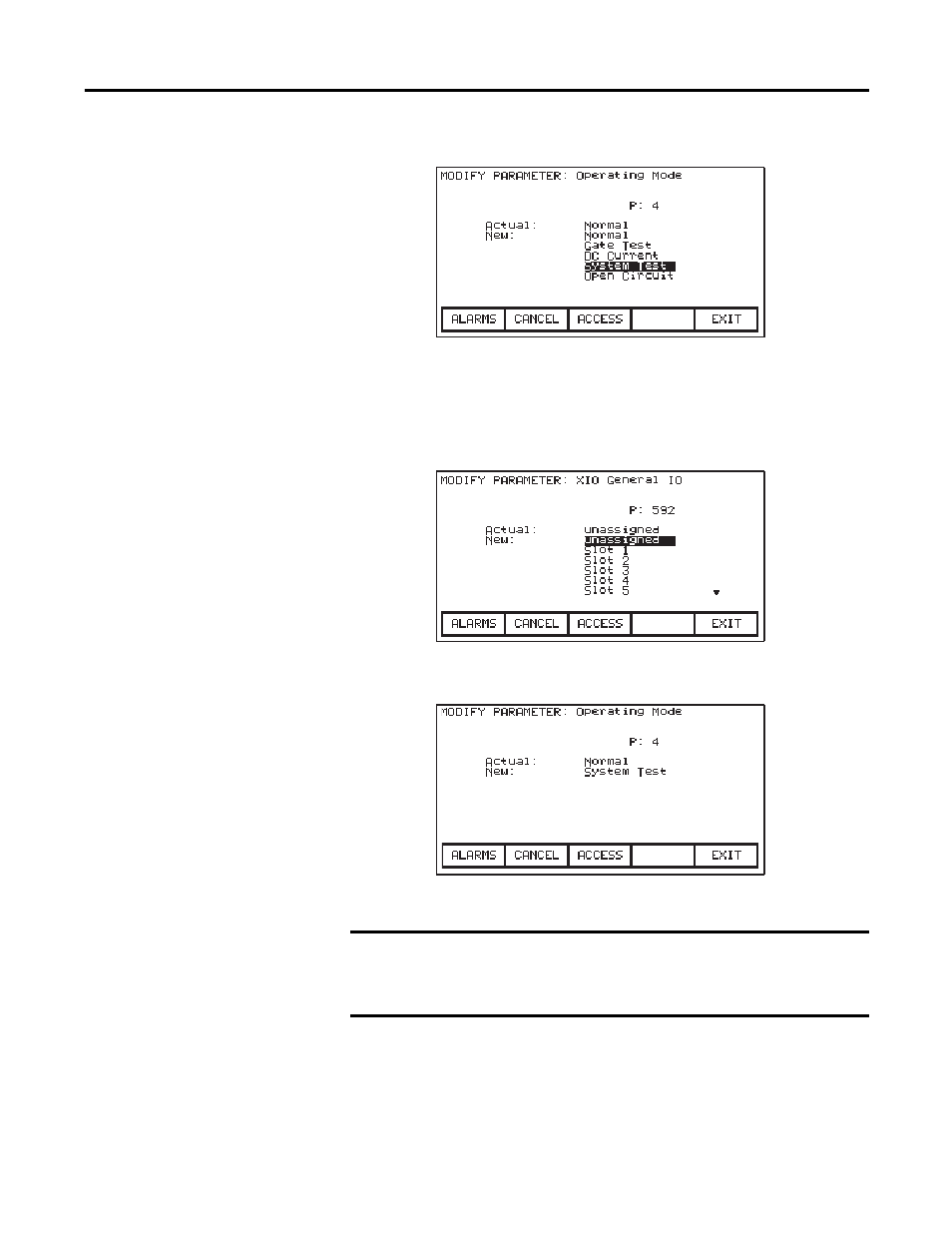

Figure 195 - Option List Viewed on Single Page
Use
▲
or
▼
to scroll through the options list. A triangle indicates additional
pages of options in the list; scroll up or down to view, and press [Enter] to select a
value
Figure 196 - Option List Viewed on Multiple Pages
Figure 197 - Modification Completed
IMPORTANT The interface does not implement new values until you press [F10] to exit
the screen. Prior to this you can modify the new value by repeating the
above procedure, or cancel by pressing [F7]. Cancelling returns the option
to the original value.
