Rockwell Automation Publication 7000-UM151E-EN-P - January 2013

83

Component Definition and Maintenance Chapter 3

22. Apply a 60 Hz, 33% duty cycle signal, at a 0 to +2V level, between the

TB1-2 input and COM. Verify the signals as illustrated from

Figure 60

to

Figure 64 on page 85

. Note that in

Figure 64 on page 85

there should be a

220 μS, +/-20 μS time between the rising edge of the U4-pin7 pulse and
the falling edge of the TP7 signal.

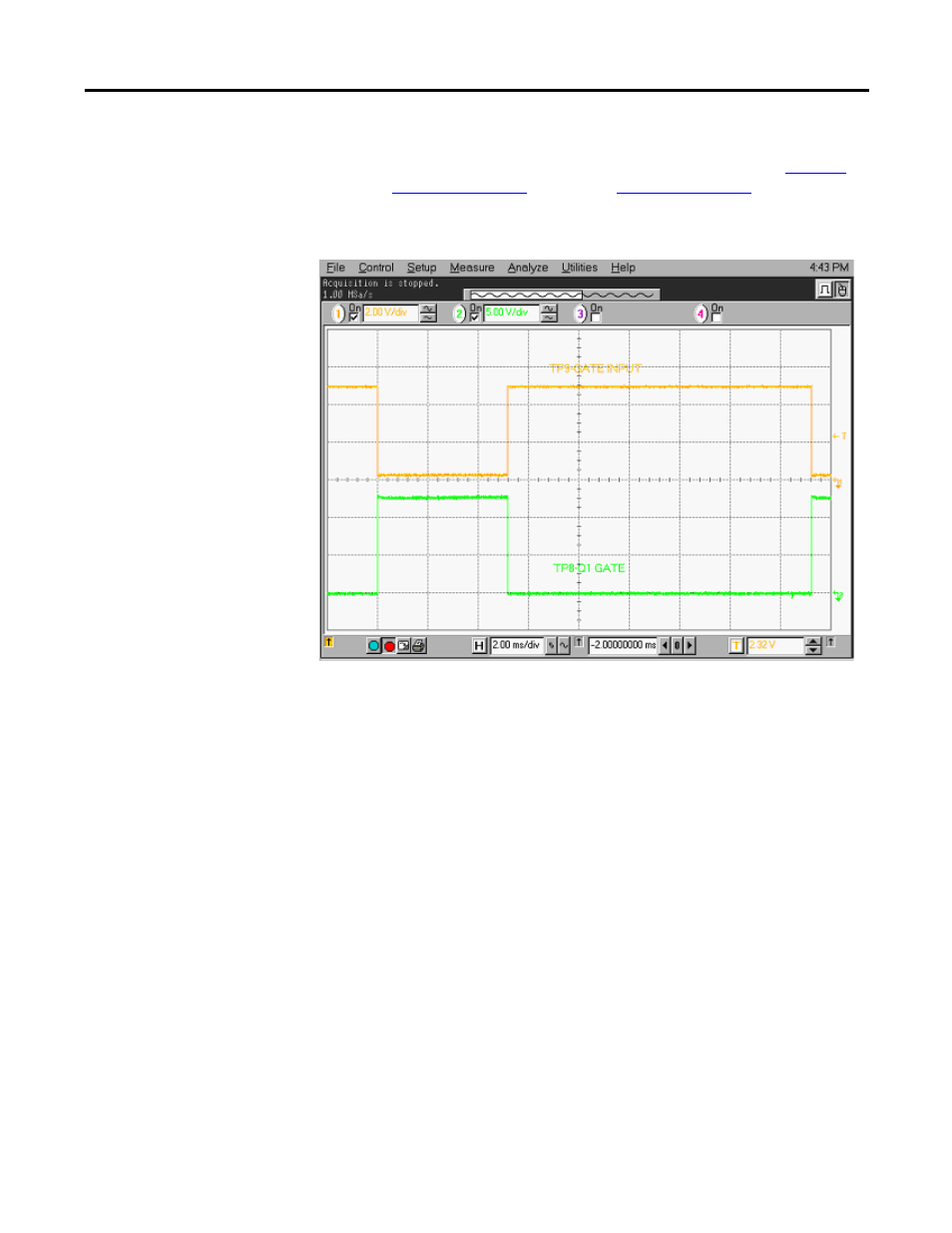

Figure 60 - Gating Pulses
