View drive status – Rockwell Automation 7000 PowerFlex Medium Voltage AC Drive (B Frame) - ForGe Control (PanelView 550) User Manual
Page 230
230
Rockwell Automation Publication 7000-UM151E-EN-P - January 2013
Chapter 5 Drive Programming and Parameters
When you complete the selection process, the interface assigns the selected tag to
the item, as in the example below.

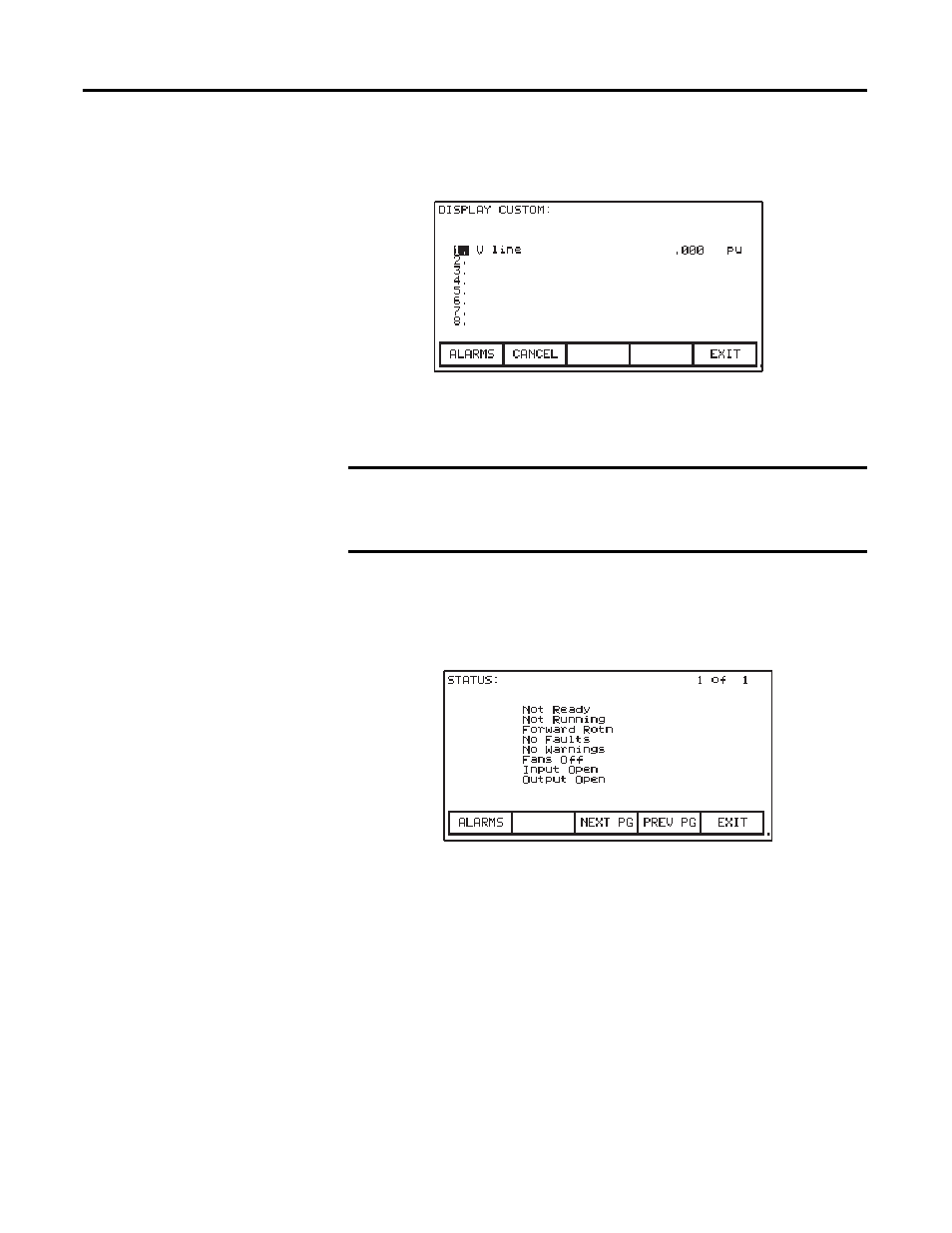

Figure 216 - V Line assigned
To remove a tag from the highlighted item, press [Backspace].
View Drive Status
View the drive status at any time by pressing [F7] from the top-level menu. This
screen constantly displays the current drive state.
Figure 217 - Status screen
IMPORTANT The interface does not implement new values until you press [F10] to exit
the screen. Prior to this you can modify the new value by repeating the
above procedure, or cancel by pressing [F7]. Cancelling returns the option
to the original value.
