Rockwell Automation 7000 PowerFlex Medium Voltage AC Drive (B Frame) - ForGe Control (PanelView 550) User Manual
Page 158
158
Rockwell Automation Publication 7000-UM151E-EN-P - January 2013
Chapter 3 Component Definition and Maintenance

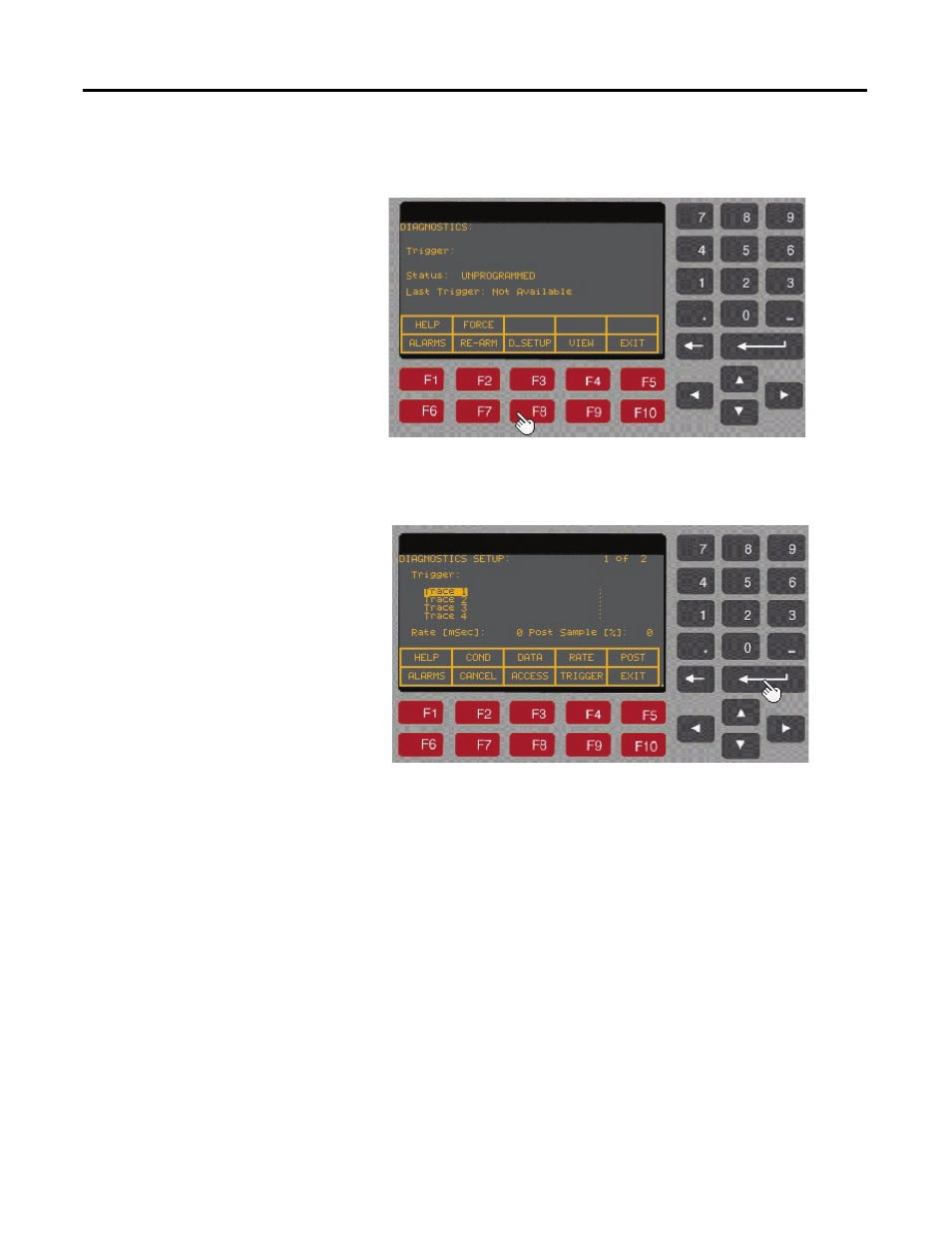

2. Press [F8] to open the ‘Diagnostics Setup’ screen as shown in the picture
below.
Figure 122 - Selecting ‘Diagnostics Setup’
3. Select Trace-1, and press [Enter].
Figure 123 - Configure Trace 1
