Component Definition and Maintenance Chapter 3

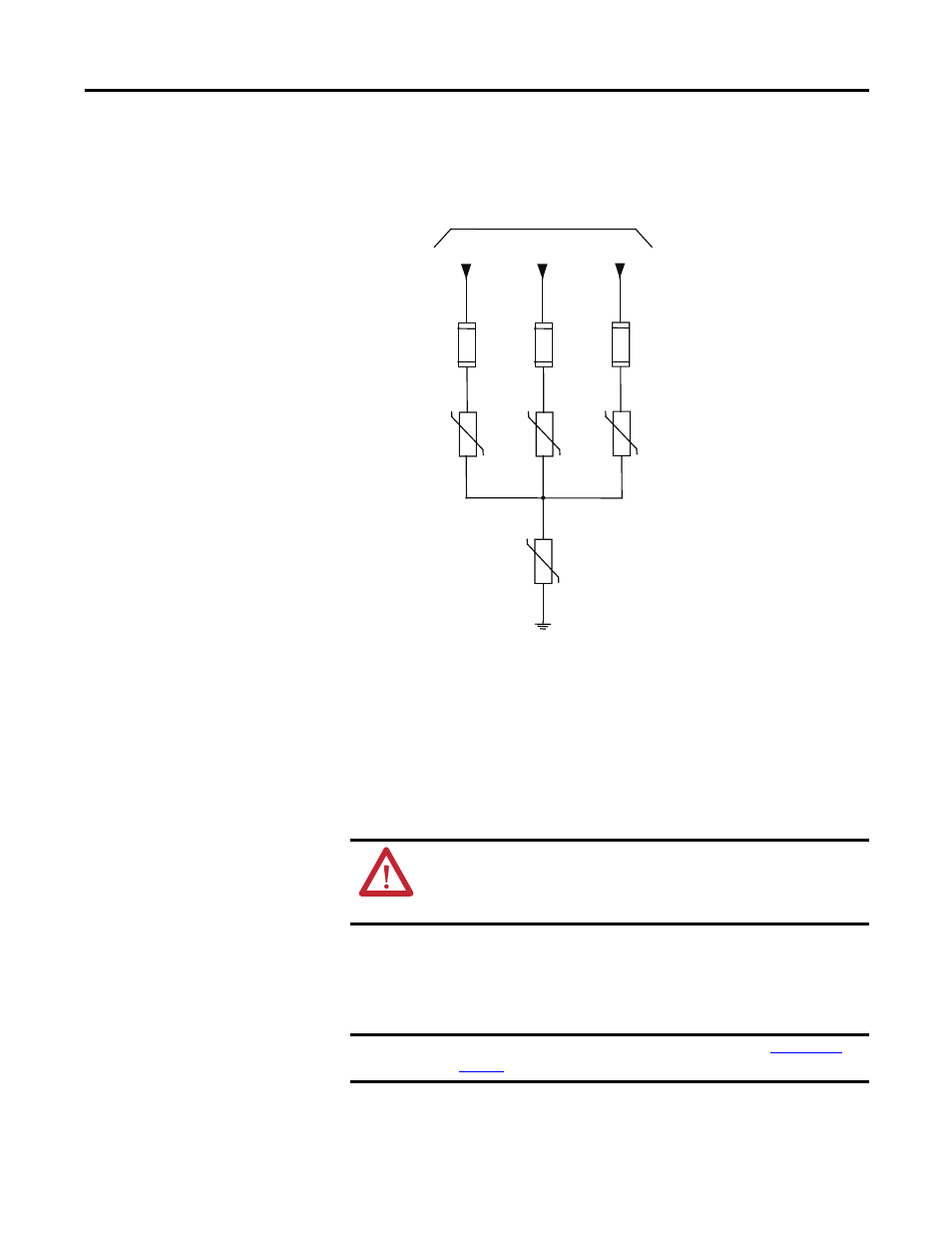

Figure 17 - Simplified wiring diagram
Replacing Transient Suppression Network Fuses
Two sizes of fuses (5 kV, 7.2 kV) are available within the TSN located inside the
connection cabinet. The 18-pulse drive contains three TSNs.
1. Ensure there is no power to the equipment.
2. Fuses are held in a place with a fuse clip. To remove the fuse pull firmly.
3. To replace the fuse, hold it in position and push firmly until the fuse is
seated within the fuse clip. Install fuses so that the rating is visible.
ATTENTION: To prevent electrical shock, disconnect the main power
before working on the drive. Verify that all circuits are voltage-free using
a hot stick or appropriate voltage-measuring device. Failure to do so may
result in injury or death.
IMPORTANT Replace the fuse with another of the same rating. (See Figure 18 on
page 34 for location.)
U V W
Drive Input Power
from
Line Terminals
Transient Suppression Network
Medium Voltage Input Fuses
Phase MOV
Suppressor
Ground MOV
Suppressor
