172 Rockwell Automation Publication 7000-UM151E-EN-P - January 2013
Chapter 3 Component Definition and Maintenance
2. Run the HyperTerminal program. At the ‘Connection Description’
window, enter any name for new connection under the Name field as
shown below and then click OK.

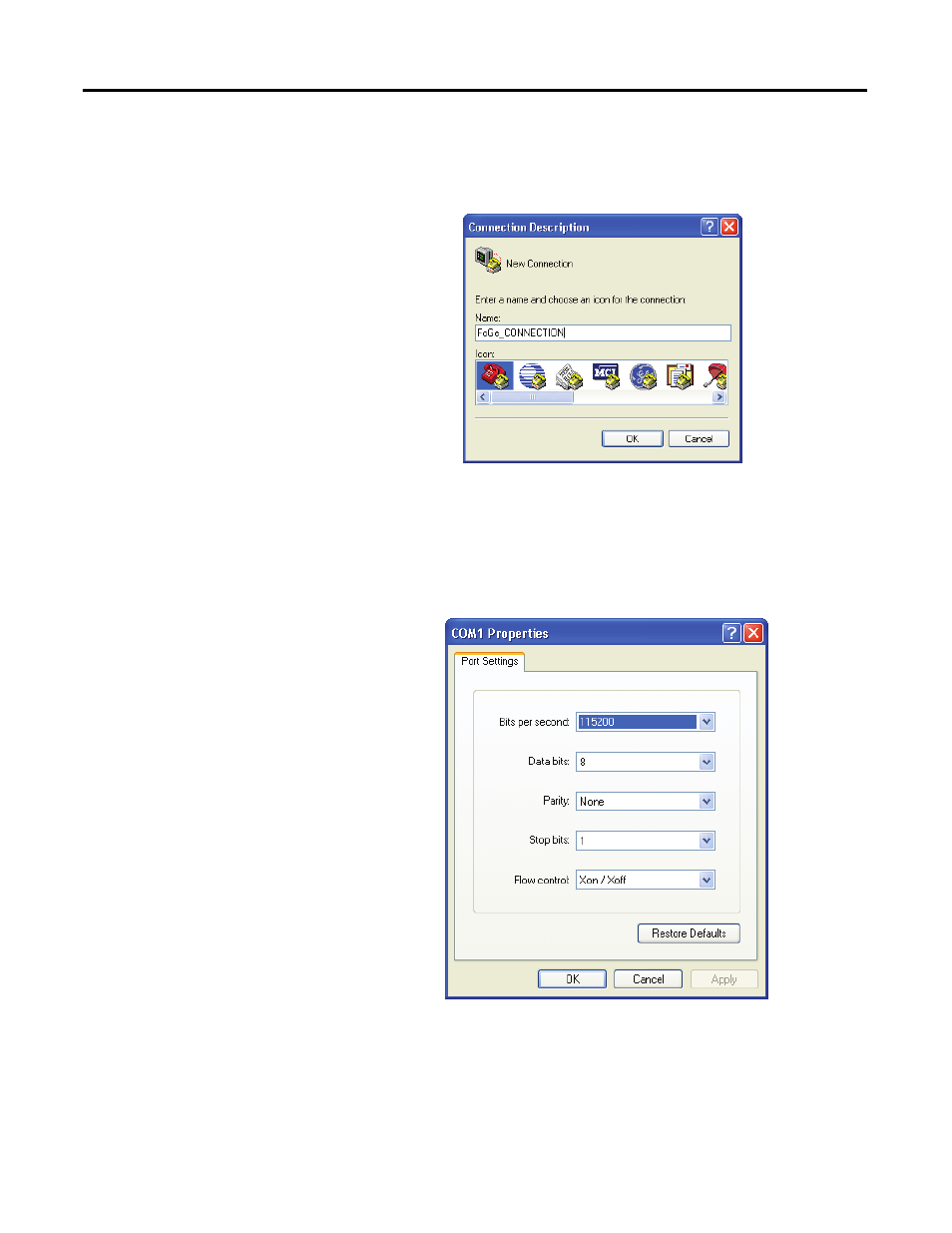

Figure 149 - HyperTerminal — Naming control data connection
3. In the ‘Connect to’ window, select COM1 from the drop list and click
OK.
4. In the ‘COM1 Properties’ window, configure the port settings as shown
below and click OK.
Figure 150 - HyperTerminal — upload control data configuration
5. Close HyperTerminal program. When prompted, click Yes to save the
connection.
6. To print (upload) the control data, restart the HyperTerminal program,
and in the ‘Connection Description’ window, click Cancel.
