External Input/Output
Boards
The External Input/Output (XIO) Boards connect through a network cable
(CAN Link) to the Analog Control Board (ACB). You can connect this cable to
either XIO Link A ( J4) or XIO Link B ( J5). The XIO board handles all external
Digital Input and Output signals and sends them to the ACB through the cable.
There are 16 Isolated Inputs and 16 Isolated Outputs on the card, used for
Runtime I/O including Start, Stop, Run, Fault, Warning, Jog, and External Reset
signals. The boards also handle the standard drive fault signals (Transformer/
Line Reactor Overtemperature, DC Link Overtemperature, etc.) and several
spare configurable fault inputs. There is a software option to assign each XIO a
specific function (General IO, External IO or Liquid Cooling).

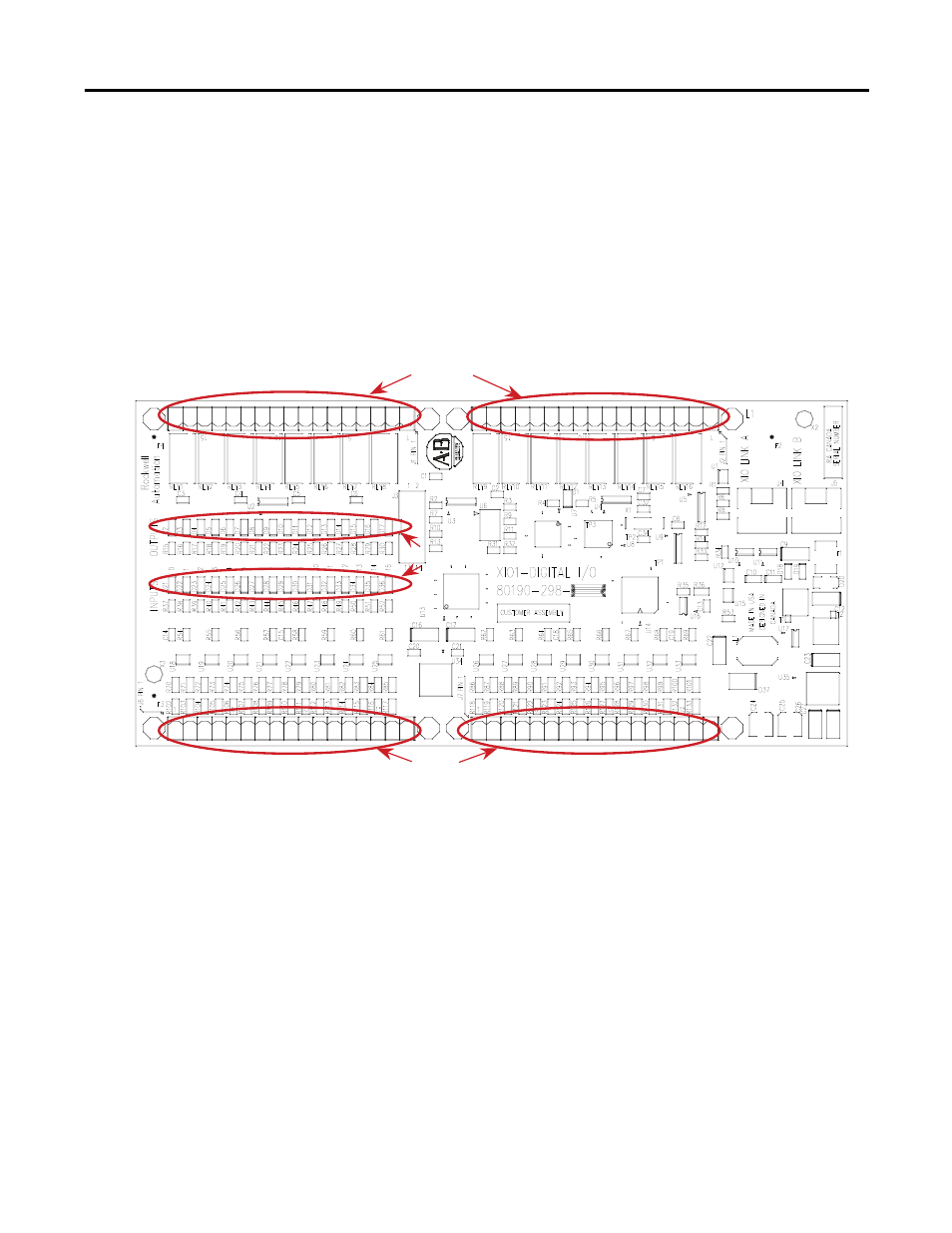

Figure 101 - XIO Board
The standard drive comes with one XIO board; additional boards (up to 5) can
be daisy chained together from XIO Link B ( J5) on the first board to XIO Link
A ( J4) on the second board, for a total of 6 XIO cards. However, at this time the
drive only supports the use of addresses 1 to 3, depending on the drive’s features
and application. U6 on the XIO board displays the board’s address which is
automatically calculated from the XIO board’s position in the network.
XIO Link A and B ports are interchangeable but it may make wiring easier to
follow if you use Link A for “upstream” (closest to the ACB), and Link B for
“downstream” (farthest from the ACB).
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
OUTPUTS
INPUTS
LEDS
