Drive processor module – Rockwell Automation 7000 PowerFlex Medium Voltage AC Drive (B Frame) - ForGe Control (PanelView 550) User Manual
Page 118
118
Rockwell Automation Publication 7000-UM151E-EN-P - January 2013
Chapter 3 Component Definition and Maintenance
Drive Processor Module
This board contains the control processors. It is responsible for all the drive
control processing and stores all of the parameters used for the drive control.

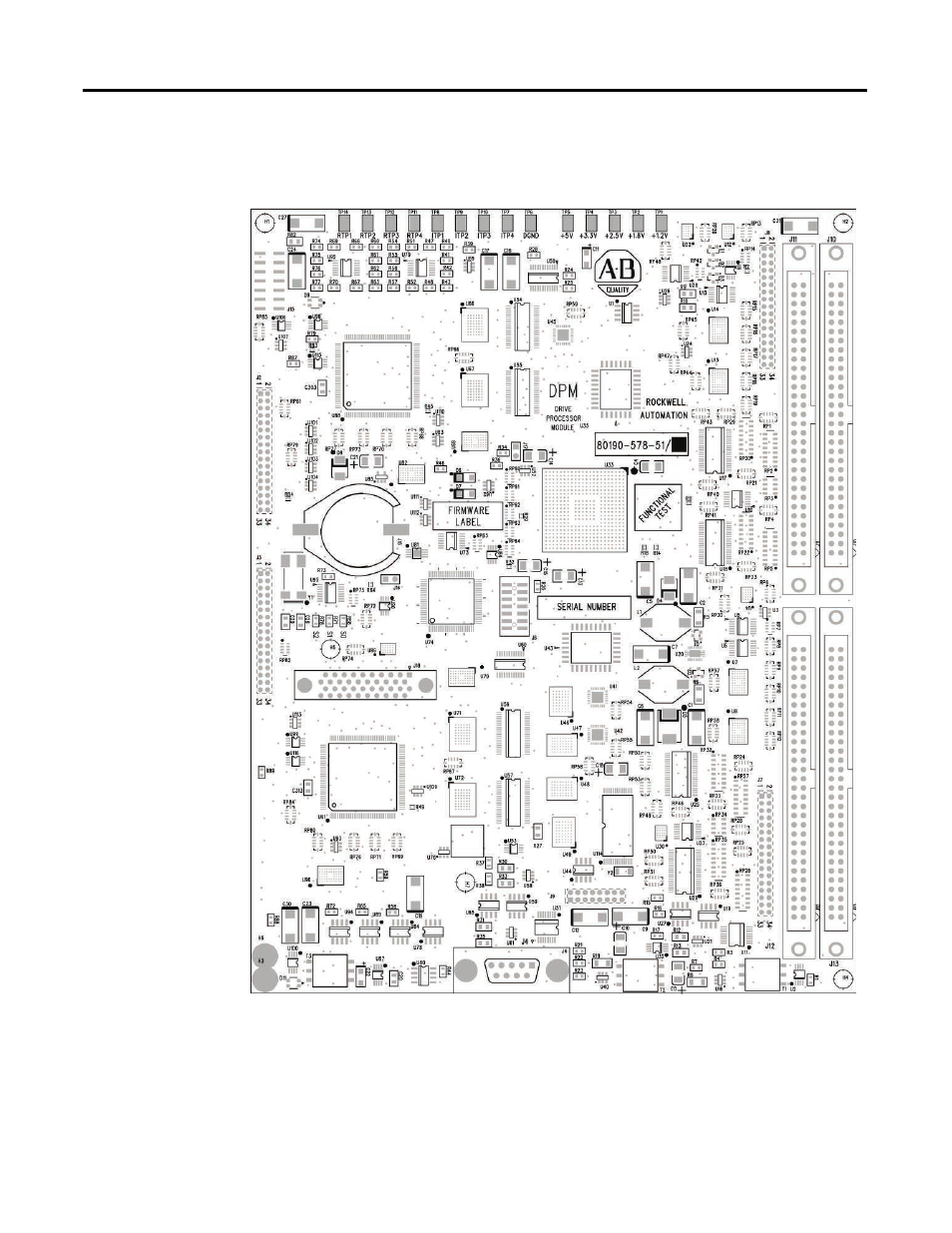

Figure 90 - Drive Processor Module (DPM)
Diagnostic test points on the DPM have a voltage output range of -5 to +5V. The
following list identifies test points on the DPM.
