Initial Operator Interface Configuration Chapter 4
In the lower right corner is a small dot, shown in Figure 157 as the “heartbeat”.
This dot indicates the healthy state of the operator interface, and in normal
conditions flashes at a rate of .5 Hz. During communication errors, the dot flashes
at a rate of .1 Hz.

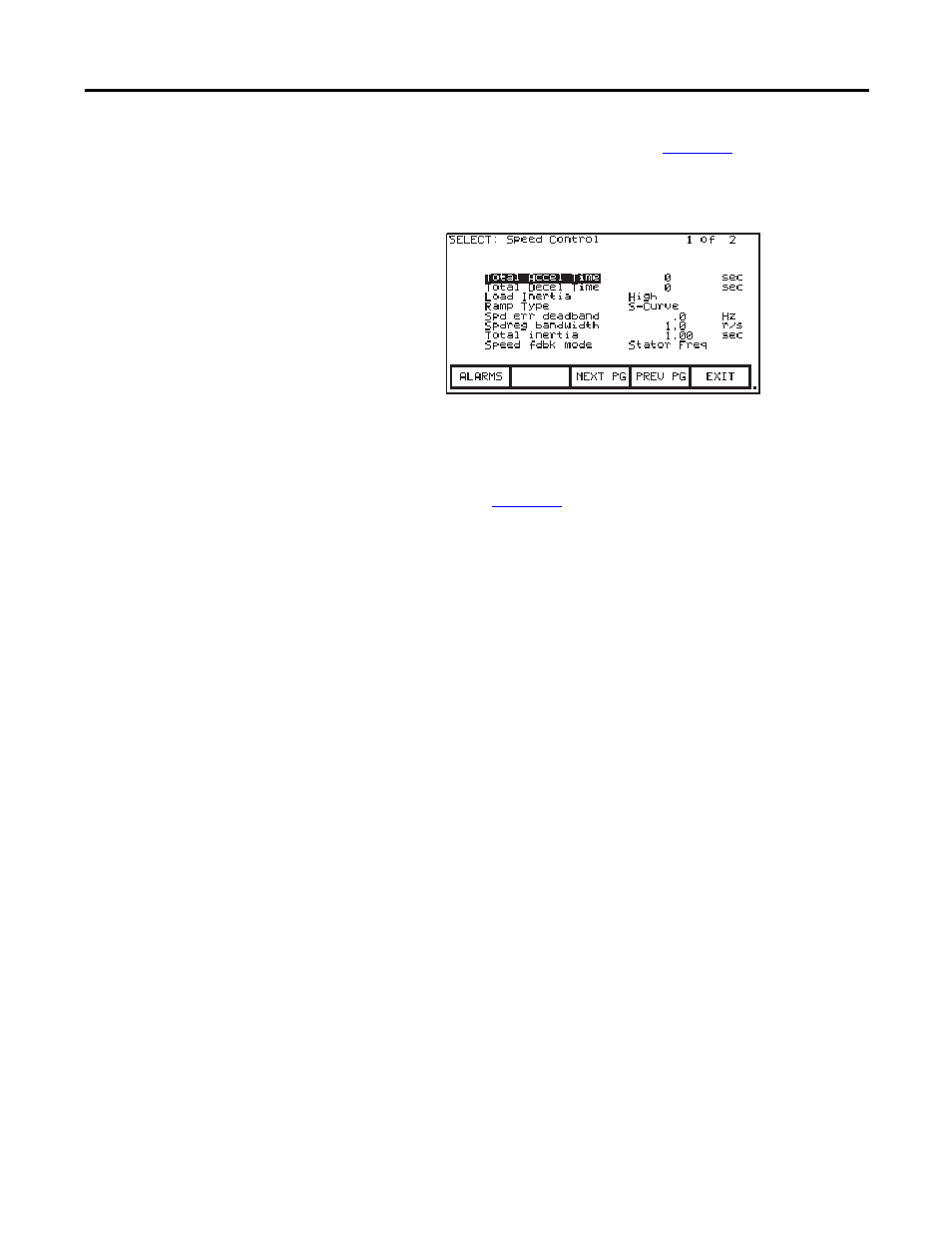

Figure 158 - Screen name and selected item
The remainder of the screen displays drive data related to the selected menu
options. Screens that include item selection highlight the default or current
selection, as shown in
Figure 158 .
Interface Operations Security: Access Levels
Secure access levels protect the drive from unauthorized parameter changes, and
filter accessible information. Each access level includes the access permissions of
all lower access levels.
Monitor: The default access level; access to a small subset of the parameter
database. No change access to any configuration information.
Basic: Permits changes to any viewable parameter.; sufficient for configuring and
maintaining the drive for the majority of applications.
Advanced: Permits configuration access to the entire drive.
Two additional secured levels for trained service personal are only accessible for
making physical hardware changes to the drive.
Individual PIN security protects all levels, except the first. Use the
▲
or
▼
keys
to select the access level. Enter the PIN for the relevant access and press [Enter] to
change the access level.
Refer to the User Manual for complete information on the use of Access Levels.
