System programming – Rockwell Automation 7000 PowerFlex Medium Voltage AC Drive (B Frame) - ForGe Control (PanelView 550) User Manual
Page 247
Rockwell Automation Publication 7000-UM151E-EN-P - January 2013
247
Drive Programming and Parameters Chapter 5

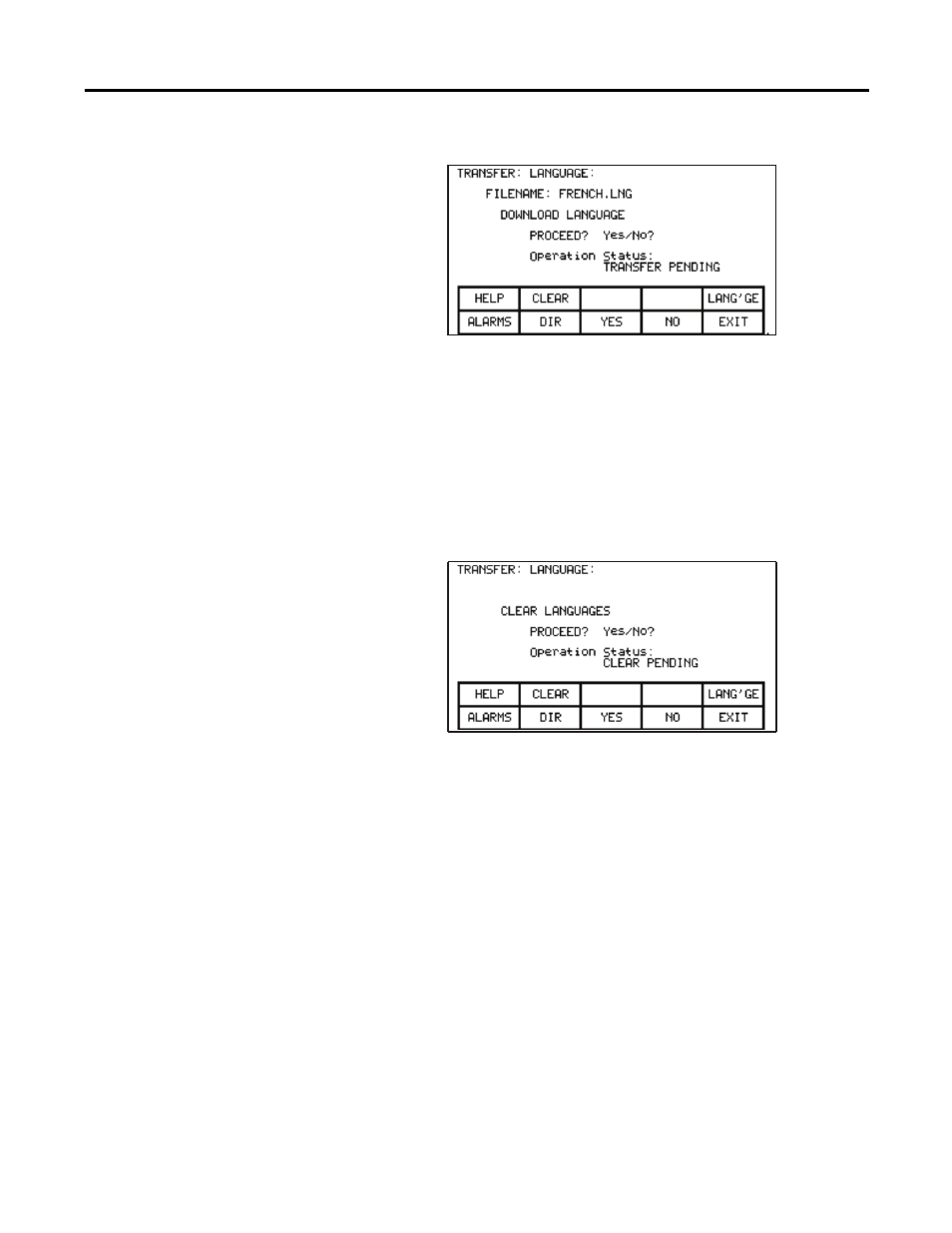

Figure 239 - Transfer Language Module
The screen prompts for confirmation. Press [F8] to proceed, or [F9] to abort. If
you attempt to download a language module that already exists, the transfer fail.
To download a newer version of a language, you must first remove all languages in
the operator interface (this is a characteristic of flash memory) by pressing [F2]
on the TRANSFER:LANGUAGE screen. The screen prompts for confirmation.
Press [F8] to proceed, or [F9] to abort.
Figure 240 - Clear Languages
Press [F5] to restart an aborted download or one that failed. To select or enter a
different filename, press [F7].
System Programming
You can also update the firmware for the complete drive system via serial port #2
on the customer interface board. Press [F9] from the transfer screen to place the
drive system into download mode.
