Rockwell Automation Publication 7000-UM151E-EN-P - January 2013 189
Initial Operator Interface Configuration Chapter 4
In both cases, once the interface reconnects to the drive, the message closes and
the operation finishes.

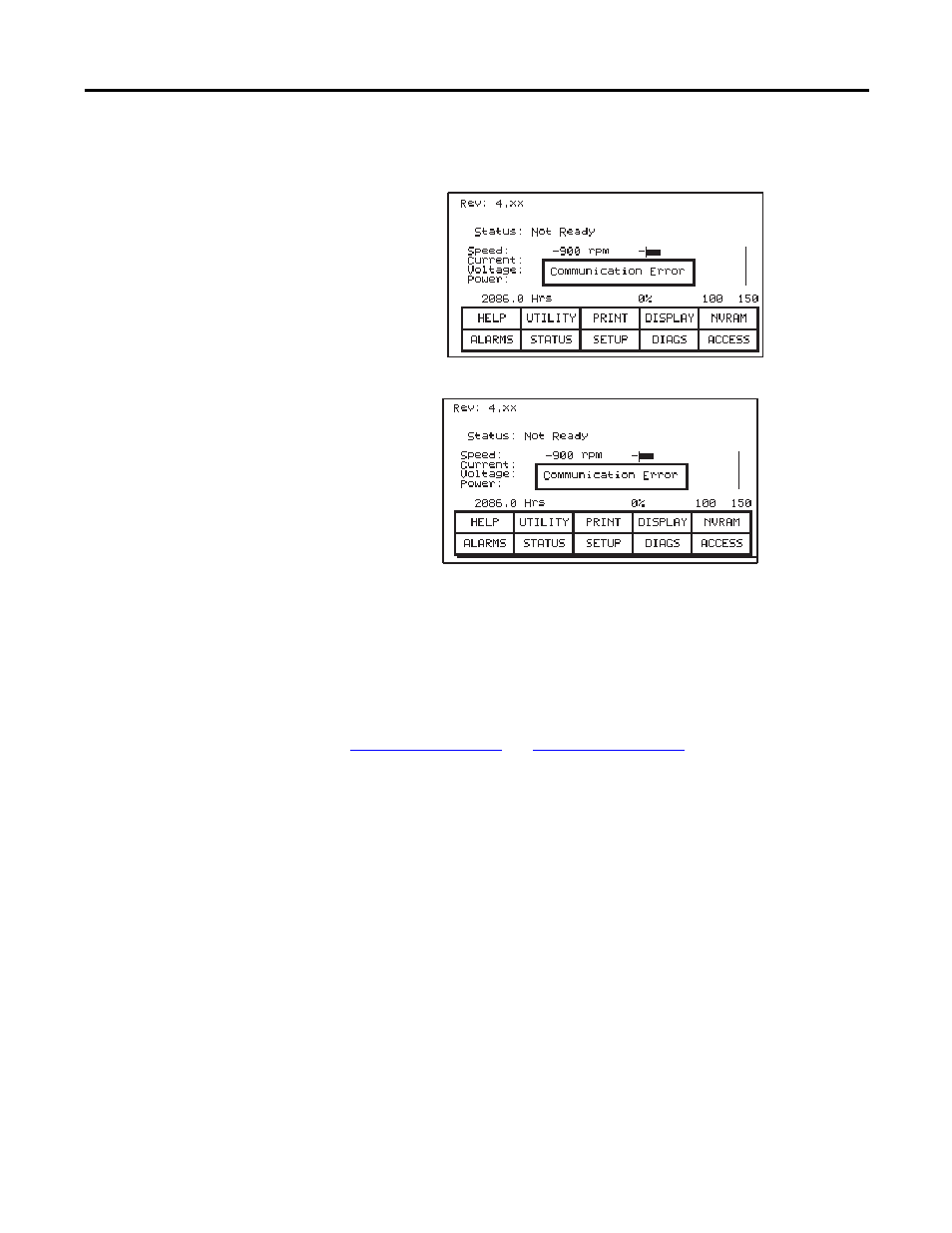

Figure 159 - Communication Errors
Operator Interface Menu Hierarchy Chart
The interface screens provide menu-driven access to the drive operations.
Figure 160 on page 191 and Figure 161 on page 192 illustrate the menu
hierarchy, and show the relationship between screens and a particular operation.
They also illustrate the path to a particular screen.
This chart does not cover usage of the operator interface, but is useful reference
for both initial configuration and further parameter programming.
Reading the Chart
Each box represents a screen, and shows the screen name. From a particular
screen, a downward arrow indicates other screens that are accessible from the
current screen, and the function key required to call each screen. Pressing [F10]
on any screen returns exits and returns to the preceding screen.
A lateral arrow indicates screens accessible by pressing [Enter] while making a
selection. Pressing [F10] exits and returns to the preceding screen.
