Component Definition and Maintenance Chapter 3

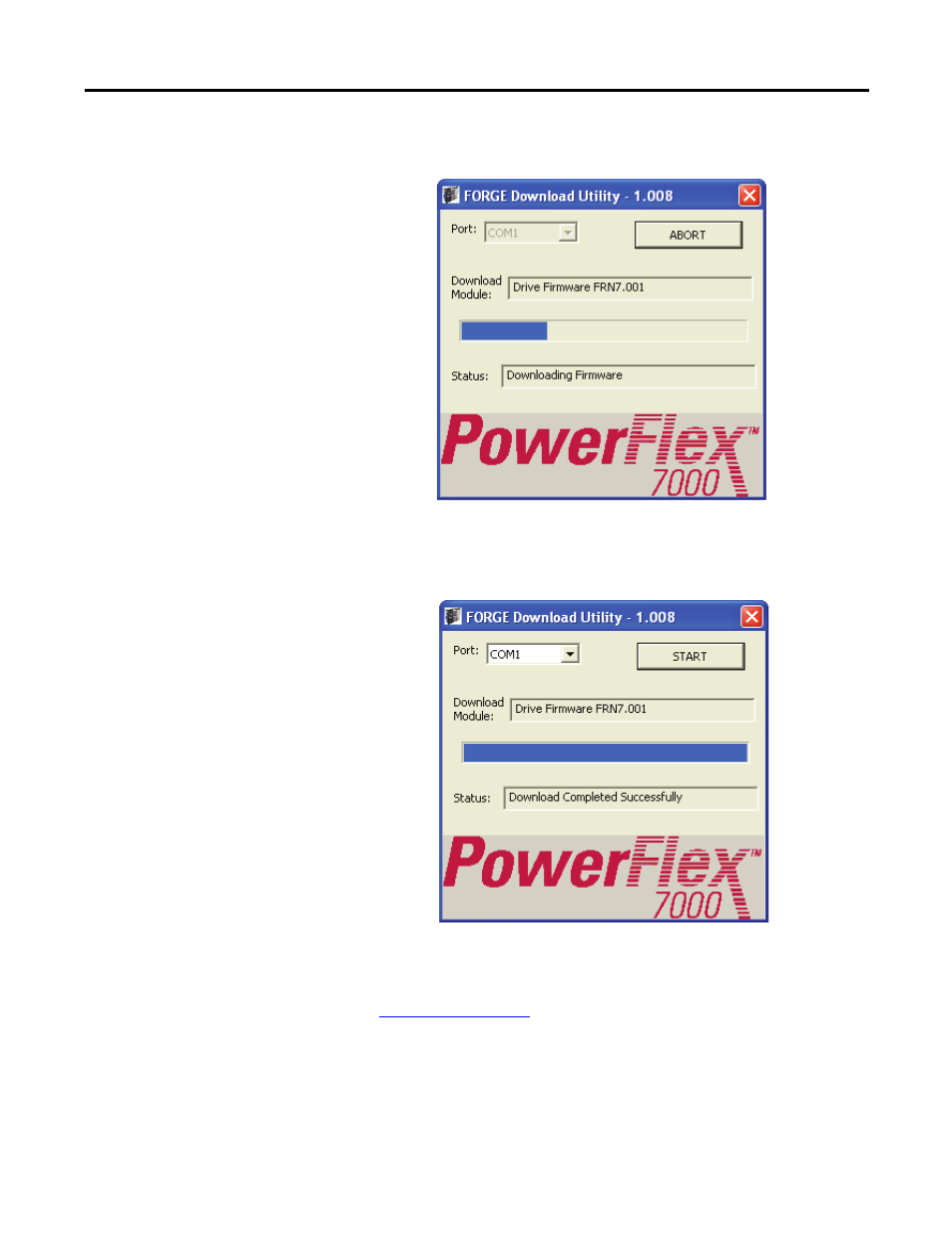

The interface screen tracks the download progress.
Figure 113 - Download progress bar
When the download finishes, the window displays the following message.
Figure 114 - Download status complete
If the DPM does not have the bootcode or needs an upgrade, select the Bootcode
(see
) and click OK. After downloading the bootcode
proceed with the drive firmware download.
After downloading new firmware, the DPM resets automatically.
