Chapter 3 Component Definition and Maintenance
9. Click Yes, and at the prompt, click Yes again to save the session and close
the program.

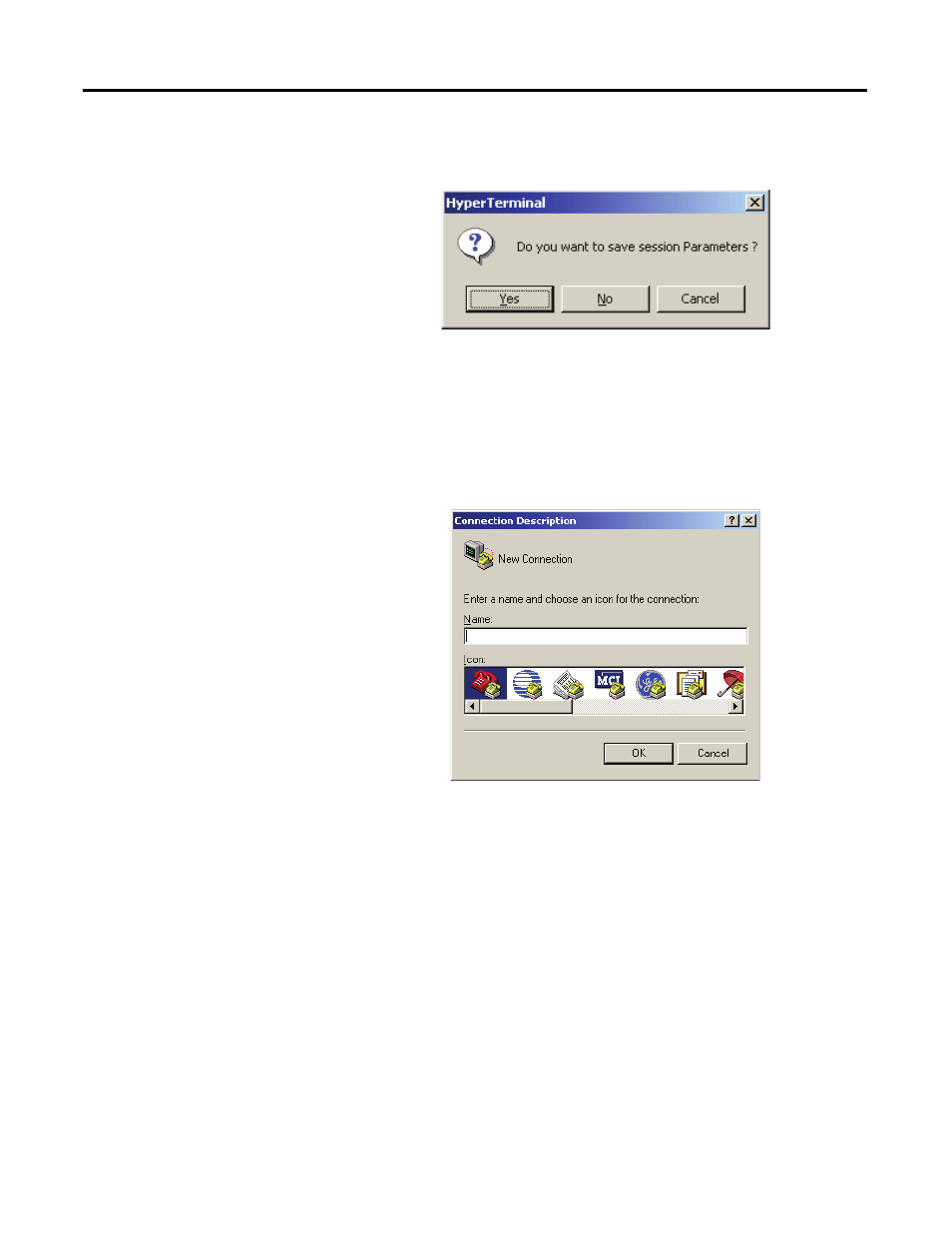

Figure 142 - HyperTerminal — save session data
10. To upload data from the drive, connect a null-modem cable between your
computer’s serial port and the serial port ‘J11’ on the Analog Control
Board (ACB).
11. Restart the HyperTerminal program. On the ‘Connection Description’
window click Cancel.
Figure 143 - Reopening HyperTerminal
