Rockwell Automation 7000 PowerFlex Medium Voltage AC Drive (B Frame) - ForGe Control (PanelView 550) User Manual
Page 164
164
Rockwell Automation Publication 7000-UM151E-EN-P - January 2013
Chapter 3 Component Definition and Maintenance
Required:
• Laptop with Windows HyperTerminal program
• A null-modem cable with a 9-pin female connector for the laptop serial
port, and a 9-pin male connector for the ACB Printer Port ( J11). (A serial
cable with pins 2-3 swapped at one end will also work.)
1. To create an empty Notepad (.txt) file, run the NotePad program (Start
>Program > Accessories > Notepad). A blank Notepad window will
appear as shown below.

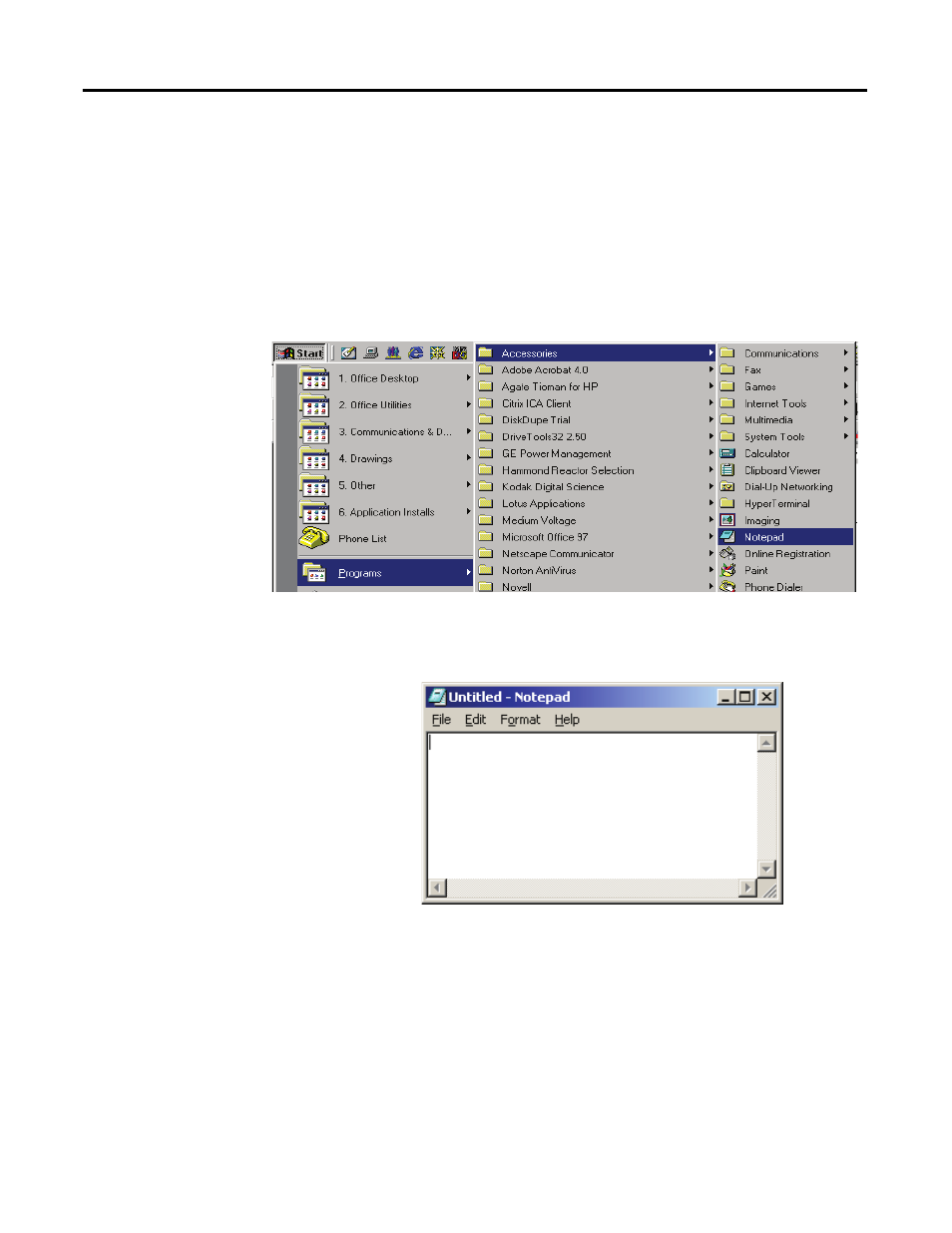

Figure 134 - Opening NotePad
Figure 135 - Blank NotePad file
