Rockwell Automation Publication 7000-UM151E-EN-P - January 2013 171
Component Definition and Maintenance Chapter 3

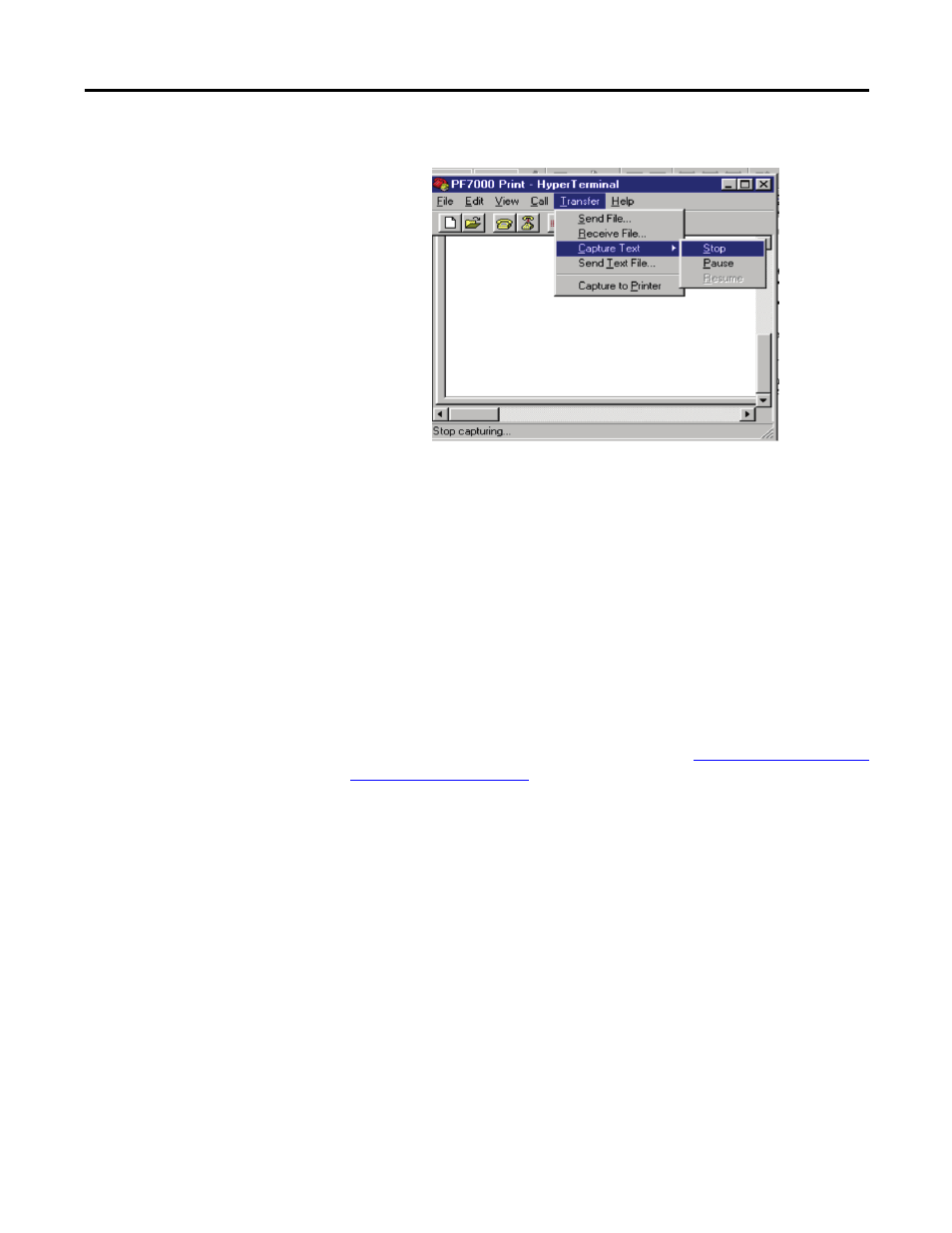

Figure 148 - HyperTerminal —stop transfer
19. Close the HyperTerminal program and disconnect the laptop from the
drive.
Printing (Uploading)
Control Data
PF7000 drives with ForGe control have a specifically-allocated memory location
to capture and store critical data in the event of a fault condition. This data is
referred to as “Control Data”. There are 8 buffers that store data sequentially on a
first-in first-out basis, ensuring the data of the eight most-recent faults is always
available for analysis.
This section describes the process for retrieving control data.
For required components and cable diagrams, refer to Printing (Uploading) Data
from the Drive on page 163 .
1. Connect your laptop to the drive using a 9-pin null-modem cable to DPM
data port ( J4).
