SECTION 3 - CHASSIS & TURNTABLE
3121448 – JLG Lift – 3-31

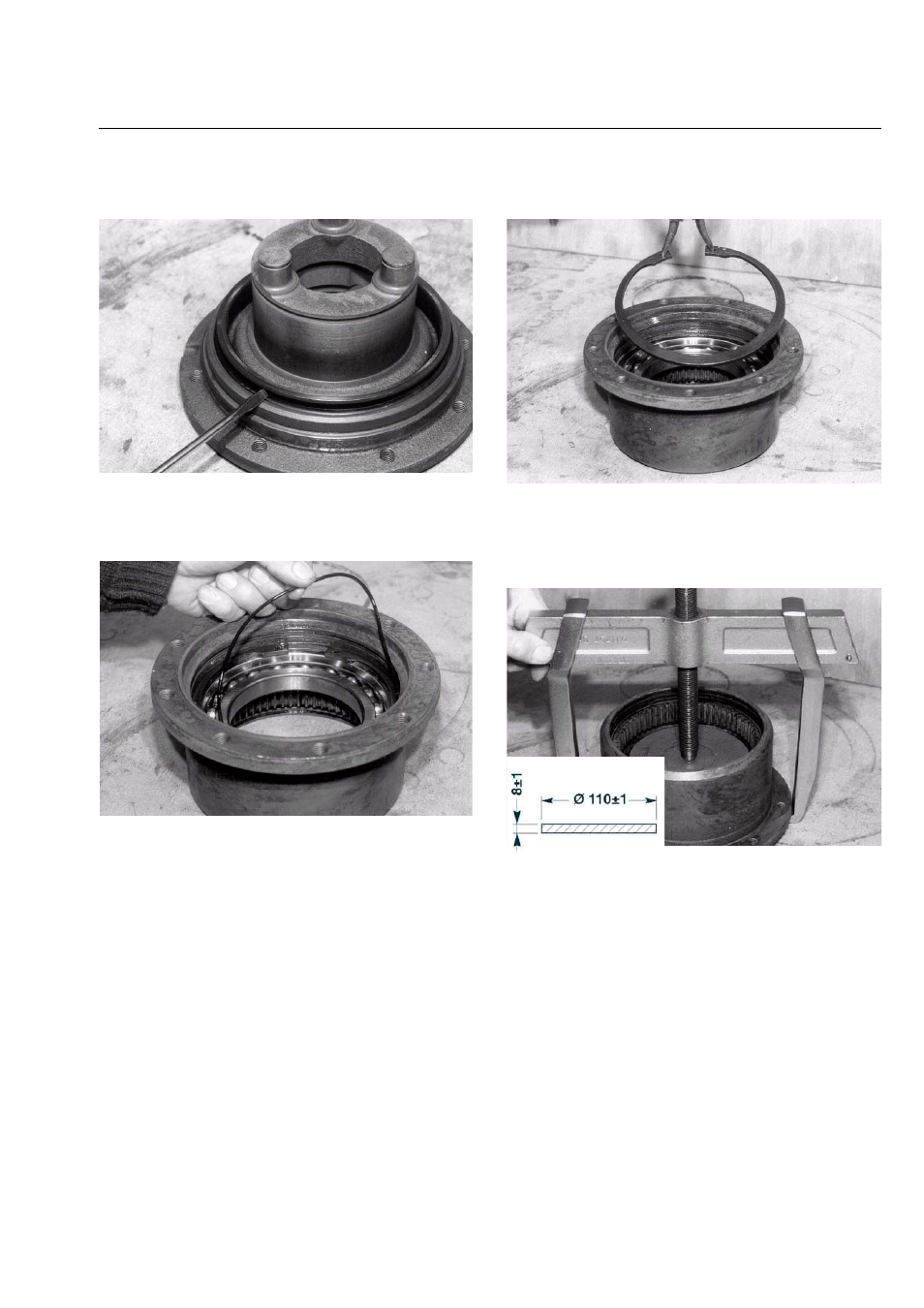

23. By using a screwdriver remove the half seal (14)
from the flanged hub (15).
Figure 3-57.
24. Remove the O-Ring seal (13) from its seat in the
gearbox housing (9).
Figure 3-58.
25. By using pliers remove the circlip (12) from its seat
in the gearbox housing (9).
Figure 3-59.
26. By using a puller, push on the metal stopper and
remove in the same time the spacer (11) and the
bearing (10) from the gearbox housing (9).
Figure 3-60.
