Chapter 19 Filters 812
Indent
Creates a shiny, bump-mapped effect, giving the appearance of depressed and flat areas. This
filter causes rasterization in 3D groups. For more information on rasterization, see
Groups and
rasterization on page 1045.

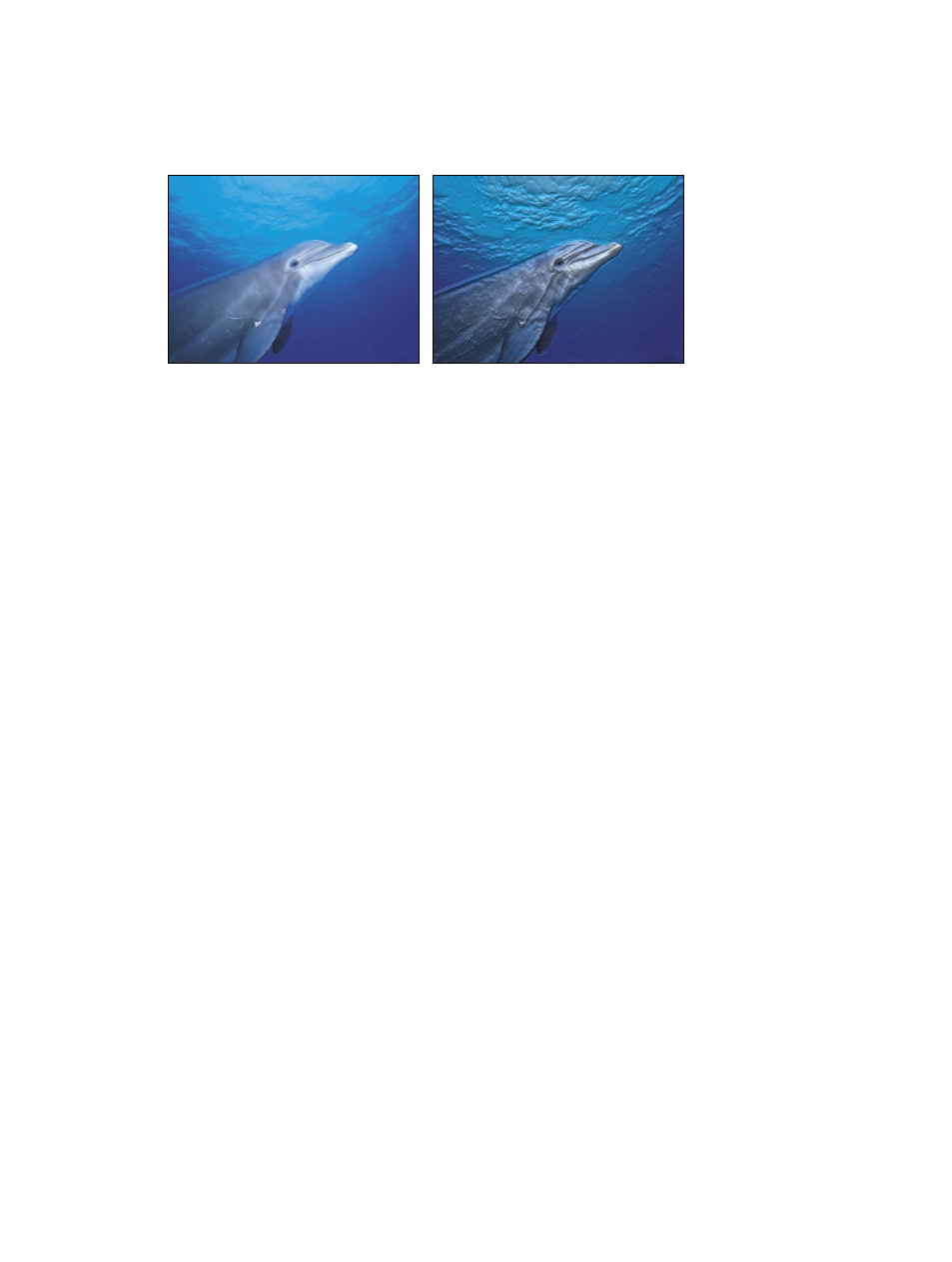

Original image Indent filter applied
Parameters in the Inspector
•
Softness: Sets the softness of the transition between flat and raised areas.
•
Brightness: Sets the level of brightness of the object.
•
Ambient: Sets the amount of ambient light hitting the object.
•
Highlight Brightness: Sets the amount of brightness applied to highlights of the object.
•
Highlight Sharpness: Sets the degree of sharpness applied to highlights of the object.
•
Light Rotation: Sets the angle, in degrees, at which the ambient light hits the object.
•
Depth: Sets the amount of depth between flat and raised areas.
•
Height Map: Displays a thumbnail of the height map chosen. If present, the height map is
used to determine the flat and raised areas of the object. To learn how to add an object to the
Height Map well, see
Source well on page 132.
•
Map Channel: Sets the channel from the object used to determine the flat and raised areas of
the image. If a height map is present, the channel is selected from the height map. Otherwise,
values include Luminance (default), Red, Green, Blue, or Alpha.
•
Stretch To Fit: Sets whether the Height Map is stretched to fit the dimensions of the
filtered object.
•
Height Map X Scale: Sets the scaling used to determine the width of the Height Map. This
parameter becomes available when the Stretch To Fit checkbox is deselected.
•
Height Map Y Scale: Sets the scaling used to determine the height of the Height Map. This
parameter becomes available when the Stretch To Fit checkbox is deselected.
•
Height Map X Offset: Sets the amount of offset used to position the Height Map horizontally.
This parameter becomes available when the Stretch To Fit checkbox is deselected.
•
Height Map Y Offset: Sets the amount of offset used to position the Height Map vertically. This
parameter becomes available when the Stretch To Fit checkbox is deselected.
•
Mix: Sets the percentage of the original image to be blended with the filtered image.
Line Art
Performs an edge detection of the high-contrast borders between regions of differing brightness
in an object, tracing the edges and reducing other detail in the image to the color specified by
the Paper Color parameter. The color of the resulting outline can also be customized. The effect is
that of a line drawing on paper.
