Chapter 19 Filters 783
•
Horizontal and Vertical Scale: Lets you offset the map by a single axis (X or Y).
•
Direction: Sets the angle at which the bump map protrudes when the Controls pop-up menu
is set to Direction and Amount.
•
Amount: Sets how far the bump map protrudes when the Controls pop-up menu is set to
Direction and Amount. Positive values push upward; negative values push downward.
•
Horizontal Scale: Sets horizontal scaling of the map object when the Controls pop-up menu is
set to Horizontal and Vertical Scale.
•
Vertical Scale: Sets the vertical scaling of the map object when the Controls pop-up menu is
set to Horizontal and Vertical Scale.
•
Repeat Edges: Sets whether the edges of the object are repeated.
•
Mix: Sets the percentage of the original image to be blended with the distorted image.
Disc Warp
Stretches the image outward around a circular region. As the radius of the warping region
increases, the image is warped outward with a greater amount of distortion. The color of the
resulting disk is determined by the color value of the pixel where the center is placed.
This filter causes rasterization in 3D groups. For more information on rasterization, see Groups
and rasterization on page 1045.

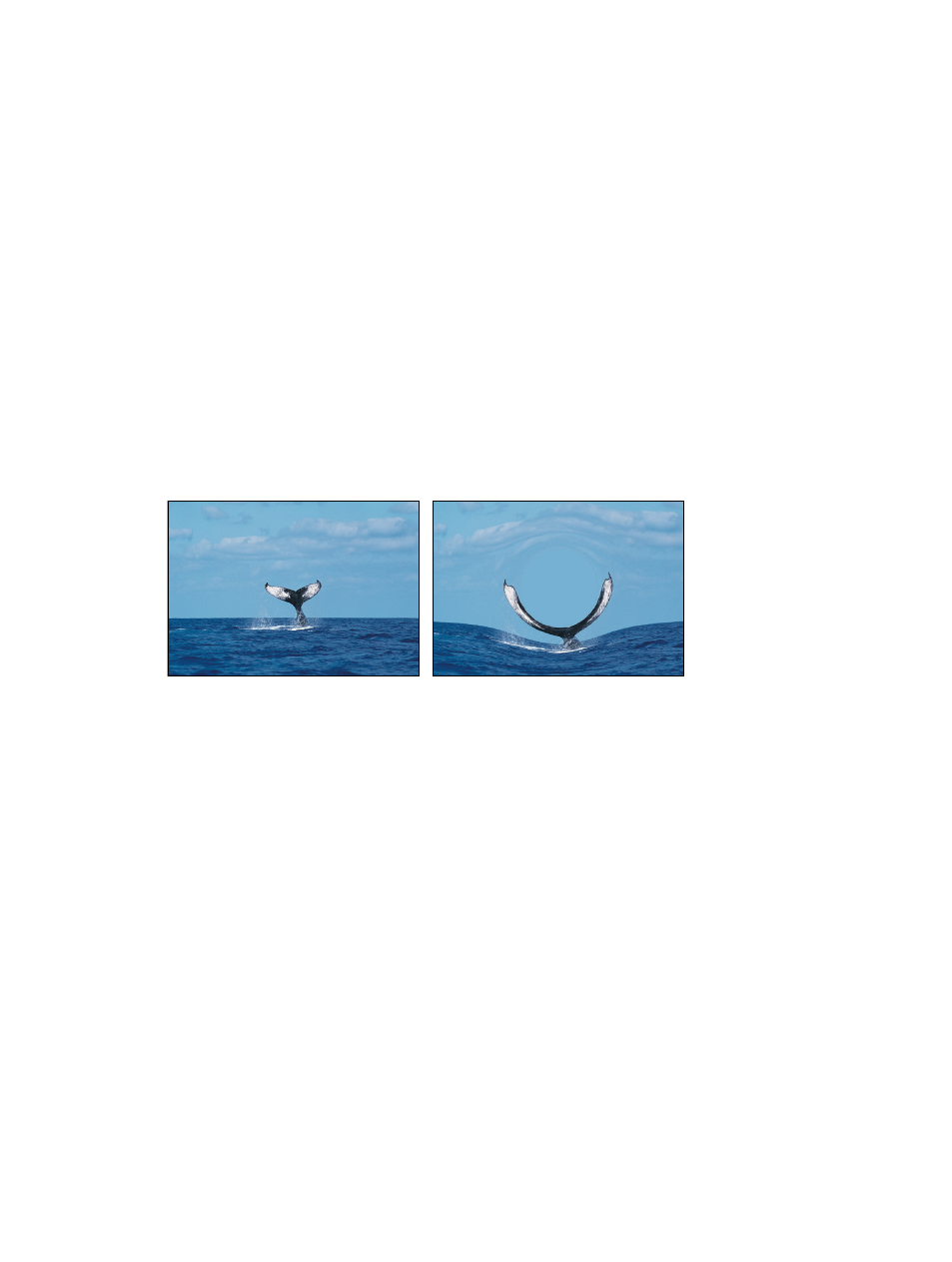

Original image Disc Warp filter applied
Parameters in the Inspector
•
Center: Sets the position of the center of the disk. Drag the Center onscreen control to adjust
its value in the Canvas.
•
Radius: Sets the size of the disk. Drag the outer circle of the onscreen controls to adjust the
Radius value in the Canvas.
•
Crop: Sets whether the object is cropped at its original boundaries.
•
Mix: Sets the percentage of the original image to be blended with the distorted image.
•
Publish OSC: Publishes the filter’s onscreen controls in Final Cut Pro X. For more information on
creating content for use in Final Cut Pro, see
Final Cut Pro X templates overview on page 385.
Droplet
Simulates the effect of a drop of liquid falling onto the surface of a pool, with the image
displaced by concentric ripples. This filter is not automatically animated, but animating the
Thickness parameter of this filter creates the effect of the ripples spreading out from the center.
