TOHO ELECTRONICS TTM200 User Manual
Page 91

48-7009-E
5-21
② Setting with the DI function (event input)
Optional DI function (event input) is required.

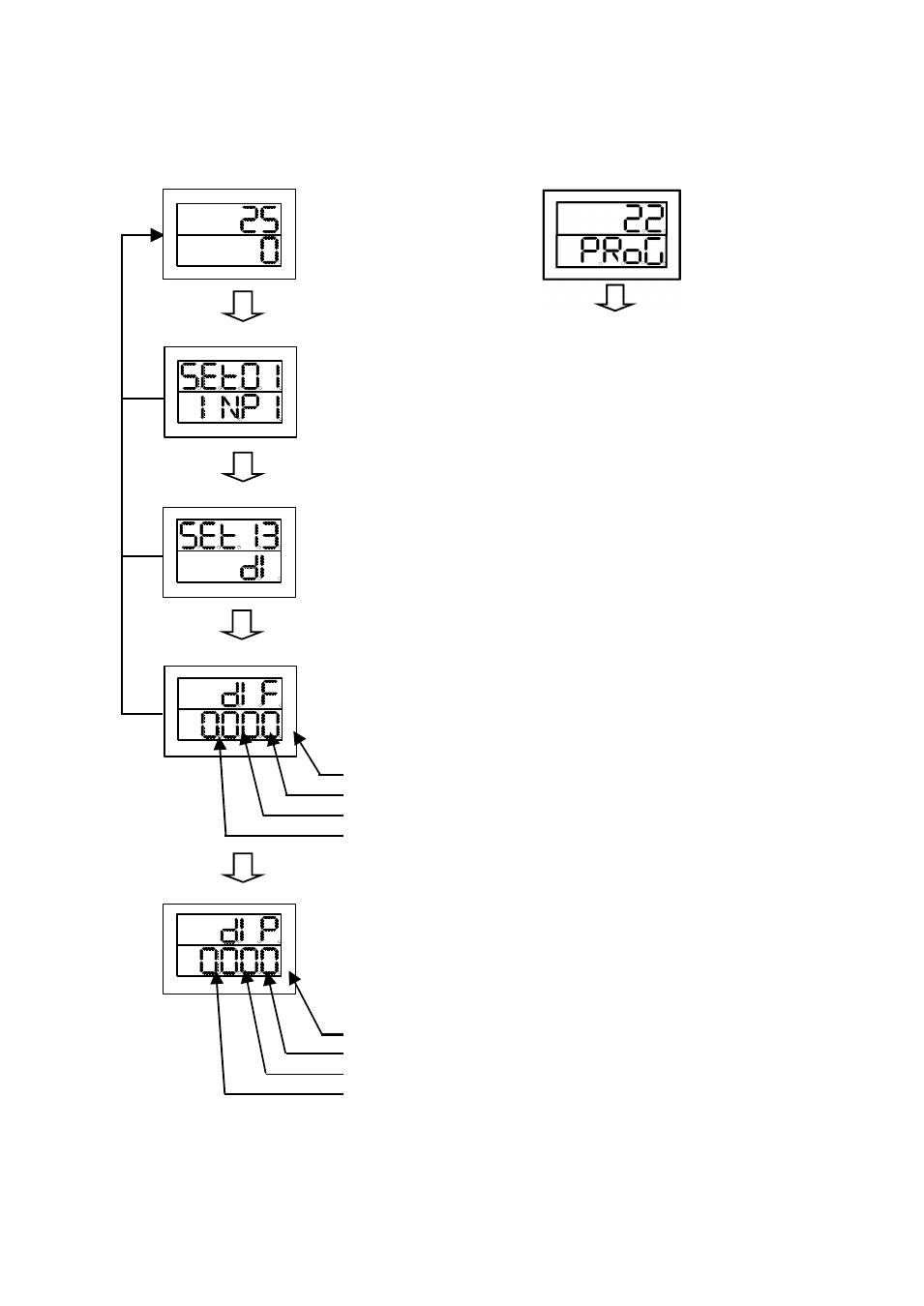

For constant value run mode screen:
PV value (present value)
SV value (target value)
Hold MODE key pressed for 2 seconds.
Input 1 setting screen
Each set screen
Each setting mode
Call up the DI setting screen by pressing the ▲ key.
(The number of pressing times varies depending on the number of optional selection points.)
DI setting screen
Press MODE key.
S13-1 DI function setting screen
Each set screen
Each setting mode
Ho
ld
M
ODE
k
ey
p
res
se
d
fo
r
2
se
co
n
d
s.
* The DI function is set in this screen.
* Use the ▲/▼ key for the setting.
* The value is set at “0000” at factory shipment.
Setting to “2” results in the READY setting in the active state.
DI 1 setting
DI 2 setting
DI 3 setting
DI 4 setting
Press MODE key.
The number of points usable for DI varies
depending on the equipment.
S13-2 DI polarity setting screen
* The DI function is set in this screen.
* Use the ▲/▼ key for the setting.
* The value is set at “0000” at factory shipment.
Each digit is set to “0: close active” or “1: open active.”
DI 1 setting
DI 2 setting
DI 3 setting
DI 4 setting
* Holding the MODE key pressed for 2 seconds moves each setting screen to the run mode screen.
* In about 2 minutes, each setting screen (or any setting screen) automatically moves back to the run
mode screen.
For program run mode screen:
PV value (present value)
SV value (PRoG)
Hold MODE key pressed for 2 seconds.
Setting mode is the same as that for Hereinafter,
to the input 1 setting screen similarly to that for
the constant value run mode
