48-7009-E

5-3

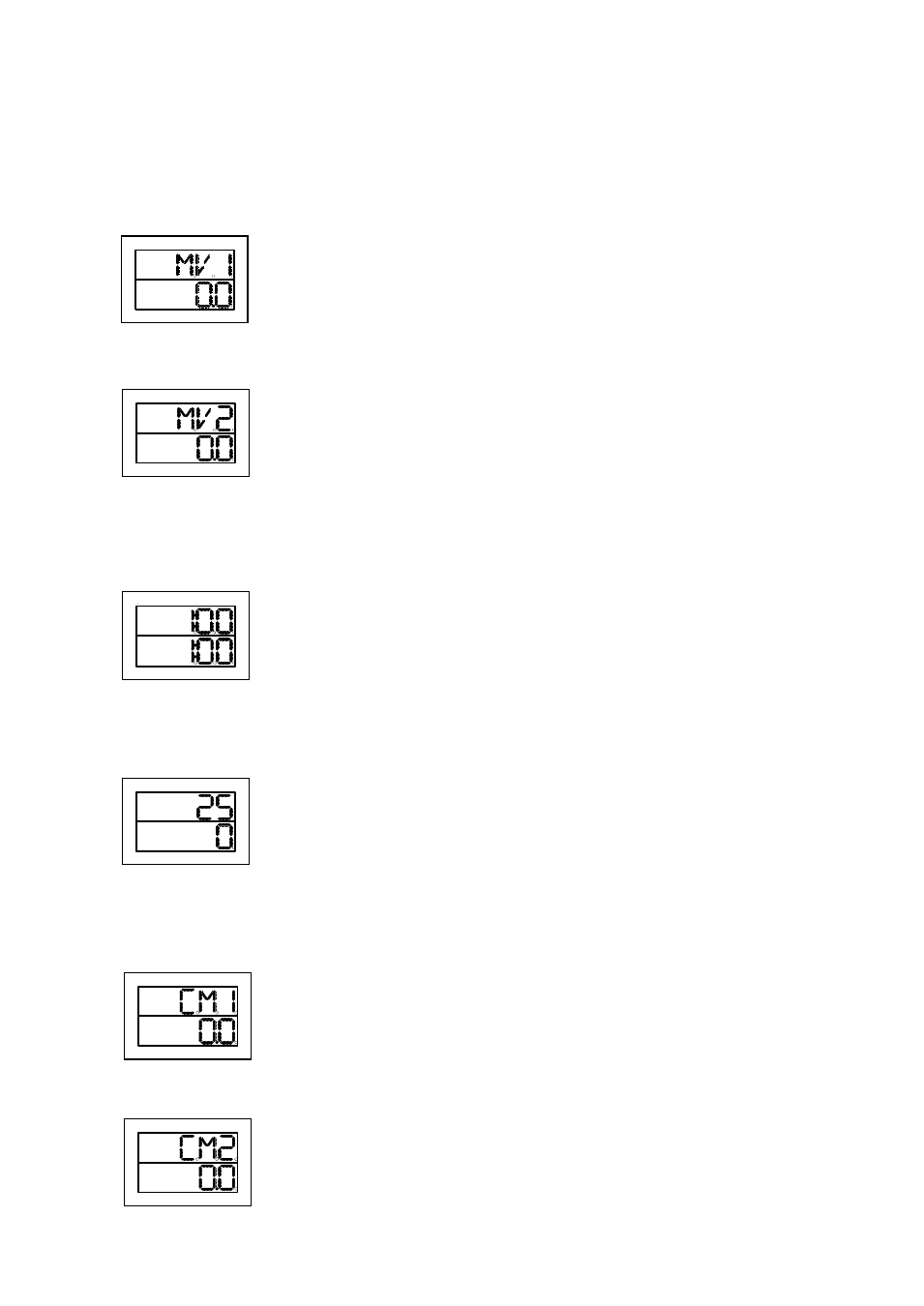

5.2 Operating monitor display

5.2.1 Operating amount monitor: SET 04 (control setting mode)

★ Output percentage at control is displayed.
1) Primary control operating amount monitor screen
S04-10 Primary control operating amount

* Smaller number indicates smaller operating (output) amount; larger number

indicates larger operating (output) amount.

* The control (output) amount is provided as output within the operating amount

setting limiter setting range.

For setting the operating amount setting, see page 6-20.


2) Secondary control operating amount display screen
S04-33 Secondary control operating amount

* Smaller number indicates smaller operating (output) amount; larger number

indicates larger operating (output) amount.

* The control (output) amount is provided as output within the operating amount

setting limiter setting range.

For setting the operating amount setting, see page 6-29.

5.2.2 Timer remaining time monitor: Run mode

★ Remaining time is displayed when the timer is operating.
Timer 1 remaining time monitor screen
Operating mode items 2, 3 and 4

* Upper row: ON delay
Lower row: OFF delay
* While operating, [:] blinks.
* ▲/▼ key to change remaining time
* Analogous to the remaining time monitor screens for timers 2 and 3

5.2.3 Temperature measurement monitor: Run mode

★ The present value being measured by the sensor is displayed.
Present measurement value monitor screen

* Upper row: Measurement value
* Lower row: Target value

5.2.4 CT monitor: SET 12 (CT setting mode)

★ The present value being measured by CT (current transformer) is displayed.
1) CT 1 measurement value monitor screen
S12-2 CT 1 current value monitor

* The present value being measured by the current transformer (CT) is displayed.
* Measurement value: 0.0 - 50.0 A



2) CT 2 measurement value monitor screen
S12-5 CT 2 current value monitor

* The present value being measured by the current transformer (CT) is displayed.
* Measurement value: 0.0 - 50.0 A
