6.15 BANK AUTOMATIC SWITCHING FUNCTION SETTING
■ Bank Automatic Switching Function Selection
ＳＥｔ２３
ＺｂＮＫ
Setting Contents
Initial
Value
1 ｂＡＦ
Bank Automatic Switching Function Selection 3
0
0 Bank Auto-Switching Operation OFF
1 Bank Auto-Switching Operation ON
※ In case the “Bank Auto-Switching Operation
ON” is set;
・ The Bank Switching Setting with the FUNC
Key will be invalid.
・ The Bank Switching Setting by DI will be
invalid.
▲▼ key operation will not be possible either.
※ When SET04 bANKH=0, the setting will be
invalid.
There will be no indication either.
※１ Bank Automatic Switching Function Selection (bAF)
This is to set the Bank Automatic Switching ON/OFF. When ON, the bank will be switched
automatically with the selected input by the Bank Automatic Switching Source Setting (bAS).
Setting Range：When 0: Bank Automatic Switching Operation OFF
When 1: Bank Automatic Switching Operation ON

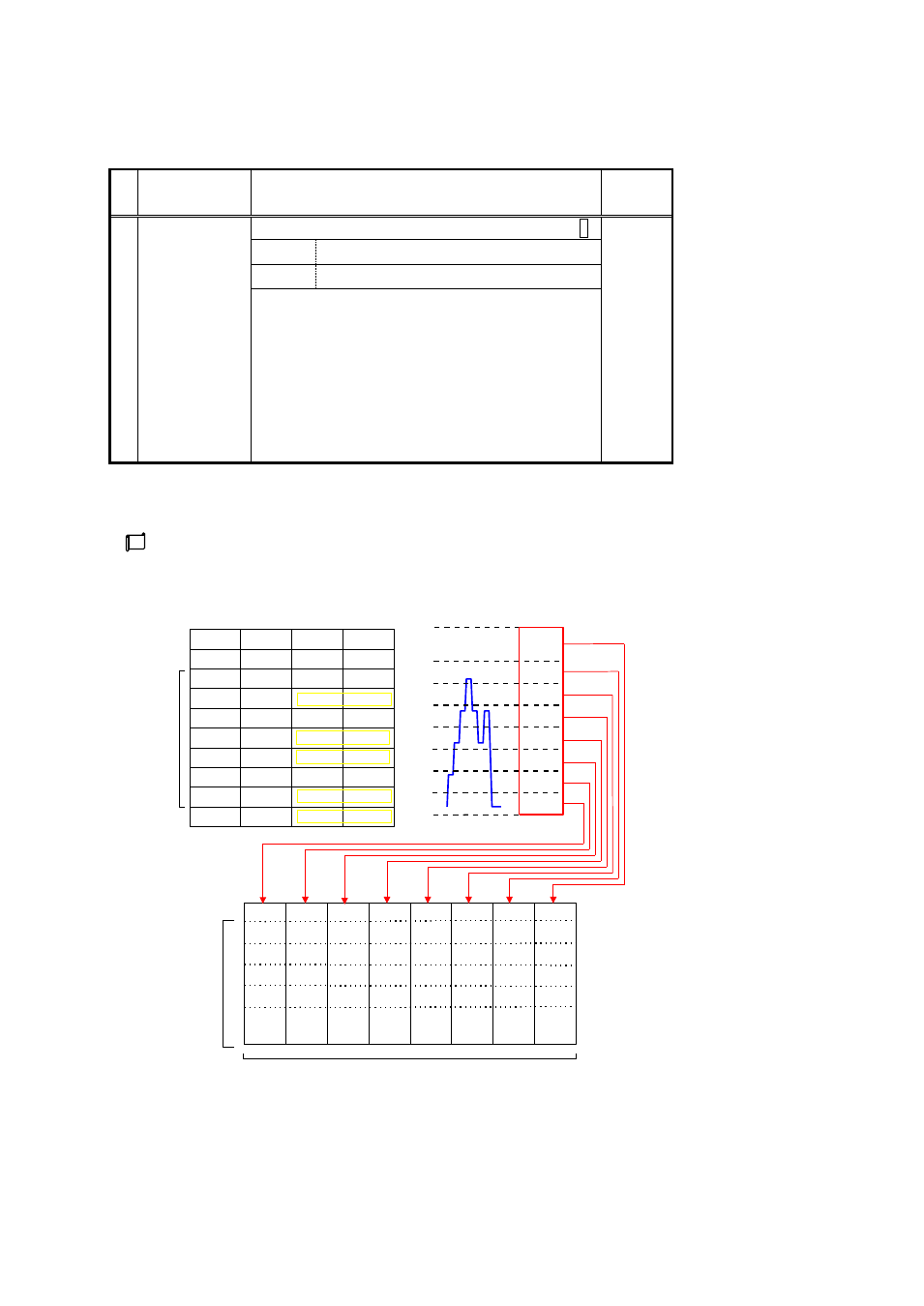

■ Behavior Diagram when Bank Automatic Switching is ON
BANK1
ＲＭＰ
10
Ｐ１
4.0
・
・
・
Ｉ
20
Ｄ
5
BANK2
ＲＭＰ
10
・
・
・
BANK3
ＲＭＰ
10
・
・
・
BANK4
ＲＭＰ
10
・
・
・
BANK5
ＲＭＰ
5
・
・
・
BANK6
ＲＭＰ
5
・
・
・
BANK7
ＲＭＰ
10
・
・
・
BANK0
ＲＭＰ
Ｐ１
3.0
MA
X
.16
param
et
er
・
・
・
Ｉ
0
Ｄ
0
SV
Ｐ１
2.0
Ｉ
10
Ｄ
2
Ｐ１
4.0
Ｉ
20
Ｄ
5
Ｐ１
4.0
Ｉ
20
Ｄ
5
Ｐ１
4.0
Ｉ
20
Ｄ
5
Ｐ１
4.0
Ｉ
20
Ｄ
5
Ｐ１
2.0
Ｉ
10
Ｄ
2
SET20
setting
Refer
BANK0
BANK1
BANK2
BANK3
BANK4
BANK5
BANK6
BANK7
ＰＭ１
ＰＭ2
ＰＭ3
ＰＭ4
ＰＭ5
ＰＭ6
ＰＭ7
SLH
SLL
SLL≦
＜PM1
SV
value
PM1≦
＜PM2 PM2≦
＜PM3 PM3≦
＜PM4 PM4≦
＜PM5 PM5≦
＜PM6 PM6≦
＜PM7 PM7≦
＜SLH
Bank Automatic Switching.
Switch the bank in accordance with
the source(SV)..
MAX. 8BANK
①
②
③
④
⑤
④
①
③
① 10℃
PM*
setting
PM1
PM2
PM3
PM4
PM5
PM6
PM7
SLL
SLH
20℃
0℃
40℃
60℃
90℃
120℃
140℃
160℃
200℃
② 35℃
Bank 0
Bank 1
Bank 2
Bank 3
Bank 4
Bank 5
Bank 6
Bank 7
③ 70℃
④ 100℃
⑤ 150℃
Auto-Switching
sorce
Bank No.
8BANK（All Threshold＊Setting ）
Bank 7
Zone
Threshold
Setting
NOTE: When the Bank Automatic Switching Function is (SET23 bAF = 1), please note the following points in
case the parameters “SV, SLL, SLH” is set at SET 20 (Bank);
・
The value of the “SV, SLL, SLH” set at the Bank will be invalid.
・ The Bank registration of “SV, SLL, SLH” will be erased and will go back to the default value.
If (SET 23 bAF = 0) again, the bank registration of “SV, SLL, SLH” are erased, so there is a need to reset.
